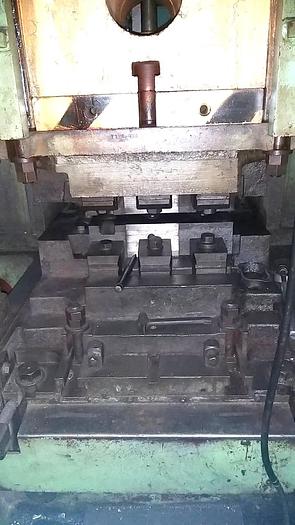

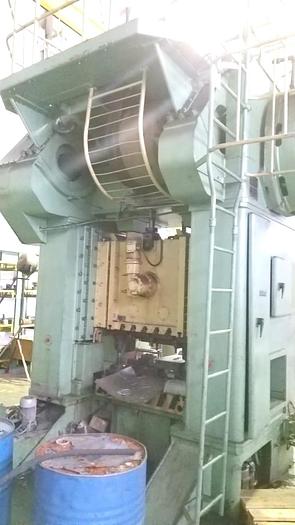

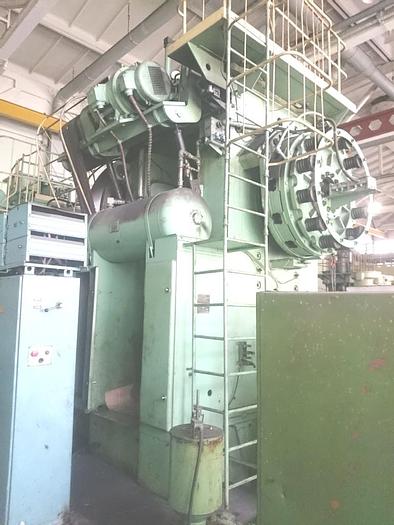

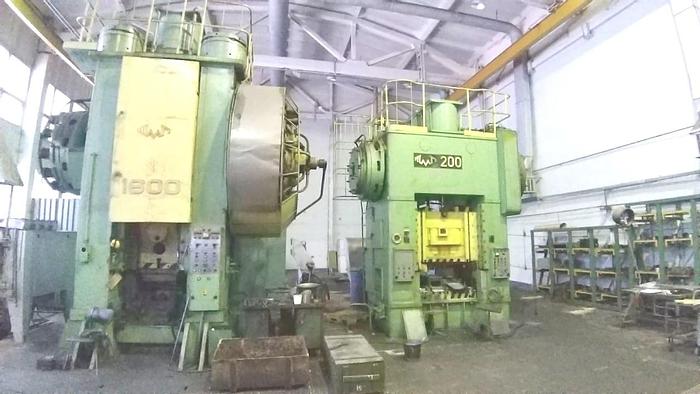

Press Hot Forging KB8542A
Sold
Specifications
Manufacturer | Abe Seiki,Japan |
Model | KB8542A |
Year | 1985 |
Condition | Used |
Stock Number | MA0273 |
Item condition | Good working condition |
Capacity tons | 1600 |
Description
Capacity : 1600 tons,
Slide stroke : 300 mm,
Slide stroke length at maximum force : 0.16 mm,
Distance adjustment between table and slider : 10 mm,
Slide stroke number in 1 min : 75,
Length of a rod : 920 mm,
The closed height (the least distance between a table and a slider in his bottom position) : 660 mm,
Table overall dimensions : 940 x 1200 mm,
Table height above floor level : 450 mm,
Slide overall dimensions : 860 x 910 mm,
The size of lateral windows :
Height : 560 mm,
Width : 600 mm,
Main motor : 110 kW,
Press overall dimensions :
length : 5060 mm,
Width : 3940 mm,
Height above floor level : 5125 mm,
Weight : 120 tons.
