Press Forging Open Die Hydraulic Seonam

Sold

Specifications

ManufacturerAbe Seiki,Japan
Year2010
ConditionUsed
Stock NumberMA0272
Item conditionDisassembled
Capacity tons1500

Description

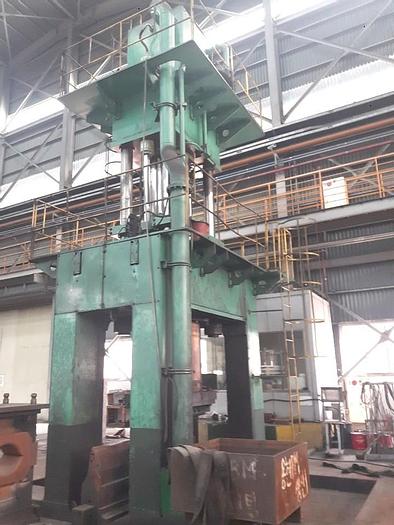

Four column push down Oil hydraulic system


Capacity : 1500 tons,

Daylight : 2250 mm,

Stroke of Movable cross head : 1500 mm,

Max Working Pressure : 300 Kg/cm2,

Cylinder Ram dia : Ø 800 mm,

Return cylinder Ram dia : Ø135 mm,

Moving table Size : Width 2000 × Length 4000 mm,

Moving table Stroke : 2000 mm,

Overall dimension : Height above of floor level 9450 mm, Depth 2540 mm,

Moving table Speed : 50~300 mm/sec,

Moving table power : 60 tons,

Moving table Cylinder dia : Ø160 mm,

Return power : 85 tons,

Return Stroke : 1500 mm,

Approaching speed : 300 mm/sec,

Forging speed (~150 Kg/cm2) : 56 mm/sec,

Forging speed (150~300 Kg/cm2) : 56~20 mm/sec,

Return speed : 300 mm/sec,

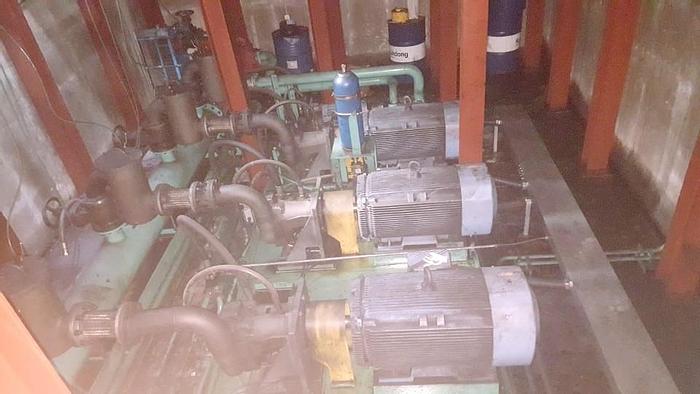

Hydraulic Main pump : 3 sets Rexroth Plunger Pump A7VO500LRD,

Electric Main Motor : 3 sets 160Kw 440V – 480 Kw,

Main Tank volume : 15,000 Litter,

Aux Tank volume : 3,000 Litter,

Total volume : 1740 L/min,

Column Type : Straight side frame type,

Column Material : SS400,

Column Front Distance : 2400 mm,

Column Side Distance : 2000 mm,

Column Front Inside Distance : 2400 mm,

Column Side Inside Distance : 1000 mm,

Attachment Equipment:

-Tool shifting device Stroke : 4000 mm,

-Top die clamping device : 20 tons,

-Die magazine device Stroke : 3300 mm.


Raw Material : Ingot,

Finished product : Engine of Ship Vessel, Wind Power Generator Part.
