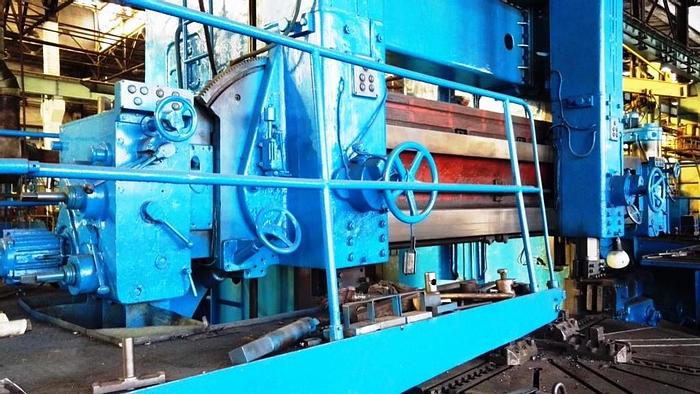

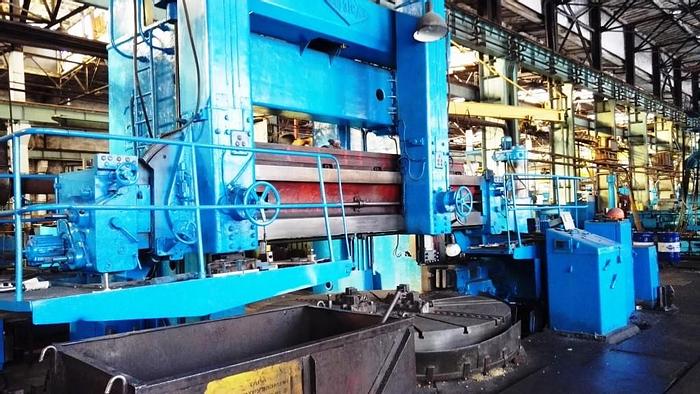

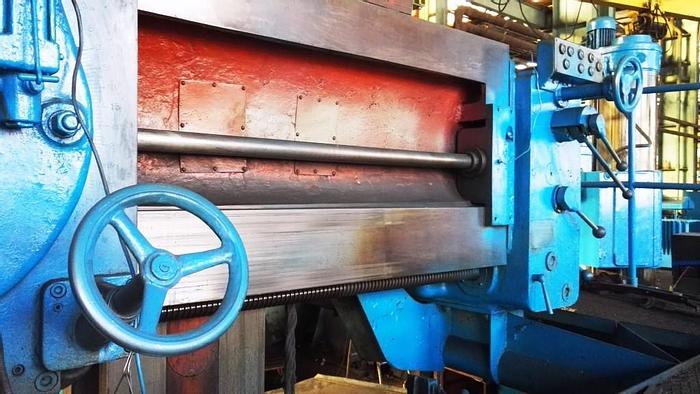

Lathe Vertical Turning 1532

Max turning dia : 3200 mm,

Max working height : 1600 mm,

Max workpiece weight : 16 tons,

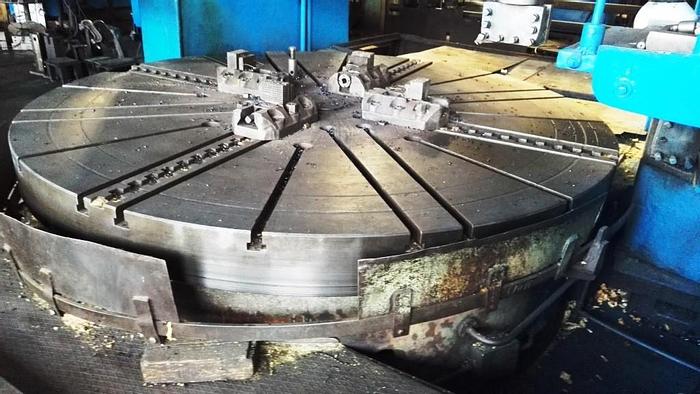

Table dia : 2800 mm

Table rpm : 1.25 ... 63 rpm,

Working feeds : 0.04 ... 16 mm per rev,

Main motor : 55 kW,

Dimensions : 5490 x 6540 x 5100 mm,

Weight of machine : 43 tons.
