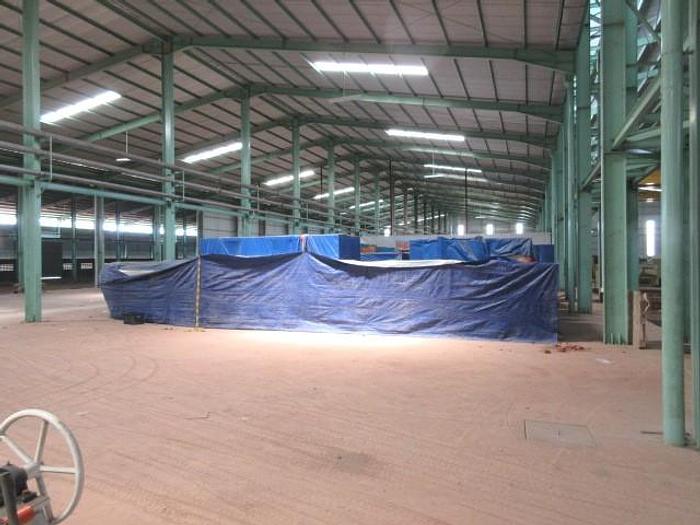

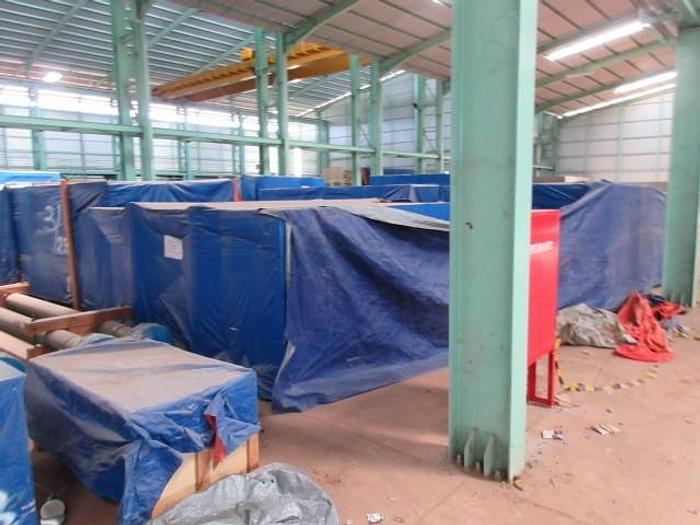

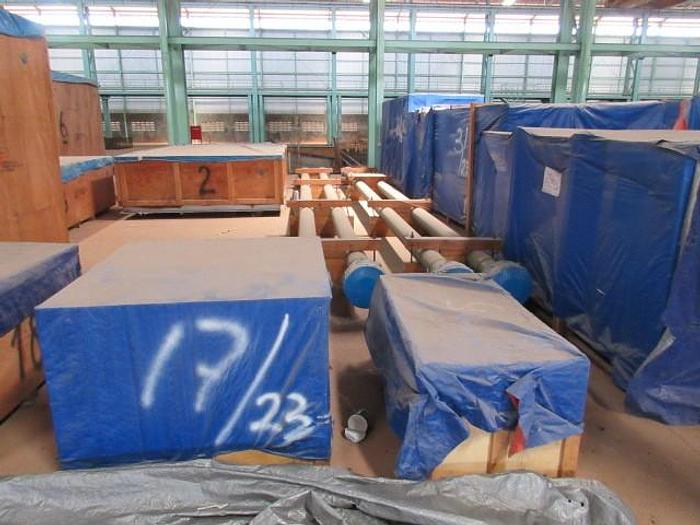

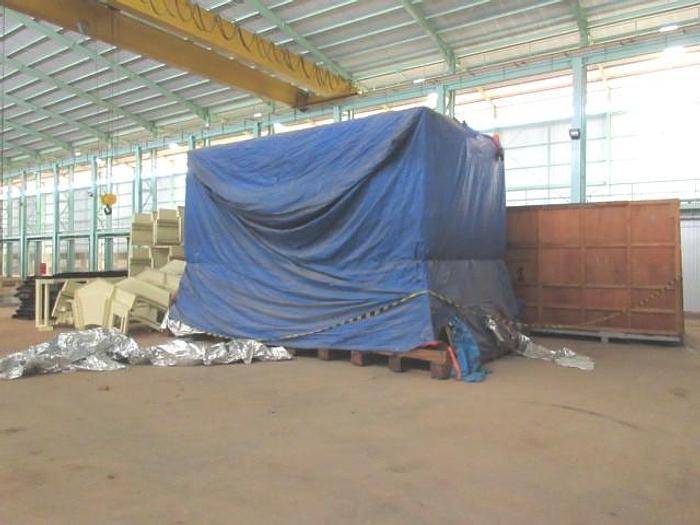

Press Sheet Stamping Mechanical Aida

Type: Free motion 4 points / Top drive /Non-branza,

Pressing force : 10000 kN (1000 ton),

Moving bolster(1ea, side moving type)

Slide Stroke : 800 mm,

SPM : 1~27,

Die. height : 1100 mm,

Slide adjustment : 500 mm,

Slide area (L.R X F.B) : 3500  x 2200 mm,

Bolster size (L.R X F.B) : 3500 x 2200 mm,

Bolster thickness : 700 mm,

Main motor:Servo motor x 2 set(Make:AIDA),

Electric supply: AC380 V, AC 220V, 50HZ,

Main motor voltage : AC400V,

Other motors : AC 380V,

Operation circuit voltage: AC 100 V /DC 24 V,

Air pressure : 0.5 Mpa,

(Die cushion)

Type : Knewmatic type

1 pad 2 cylinder

Force: 500-2000

Stroke : 300 mm,

Stroke adjustment : 250 mm,

Pad size (L.R X F.B): 2900 x 1700 mm,

(Moving bolster)

Hydraulic type

Side moving type

Max die weight : 25 ton,

Traverse : 6200 mm,

(Press dimension)

6650 x 6450 x 9500 mm(from floor)

Press depth : 5500 mm,

Press weight: approximately 310 tons.
