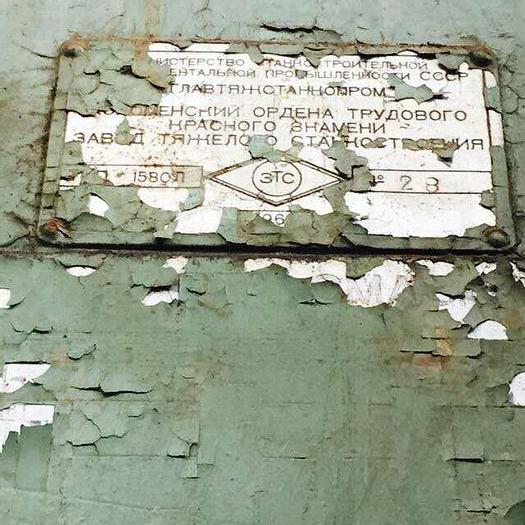

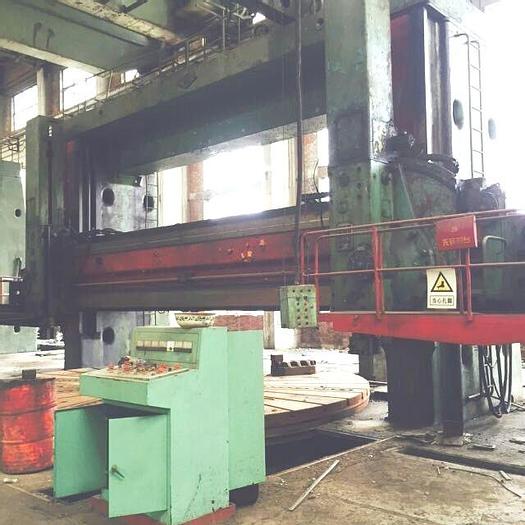

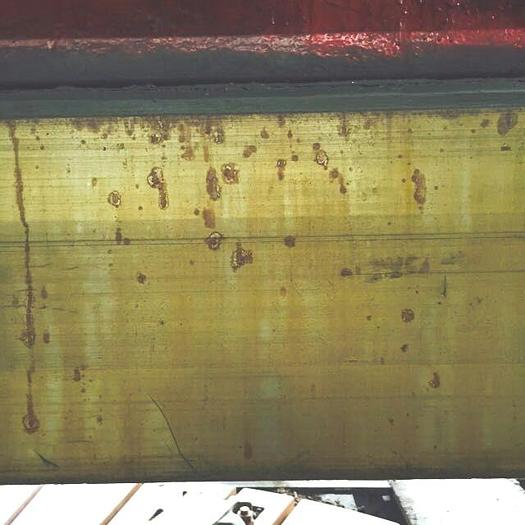

Lathe Vertical Turning 1580L

Face plate diameter : 7200 mm,

Max. work piece diameter : 8000 mm,

Max. work piece height : 3200 mm,

Max. work piece weight : 125 tons,

Max. travel of vertical supports : 4275 mm,

Max. slider movement : 2000 mm,

Supports possible work angle : - 15... +30 deg,

Chuck speed : 0,22...18,3 rpm,

Movement of vertical and horizontal feeds : 0,0352...285 mm/min,

Main electric motor power : 132 kW,

machine overall dimensions : 8615 x 17600 x 9800 mm,

Height above floor level : 8300 mm,

Machine weight : 257 tons.
