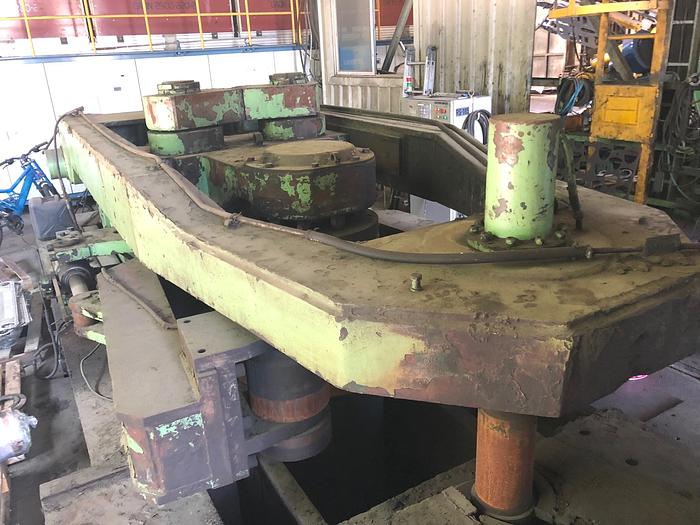

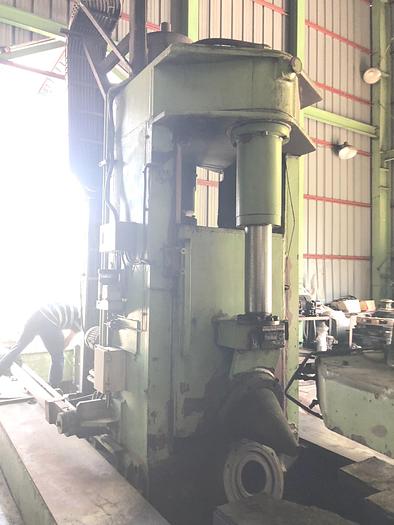

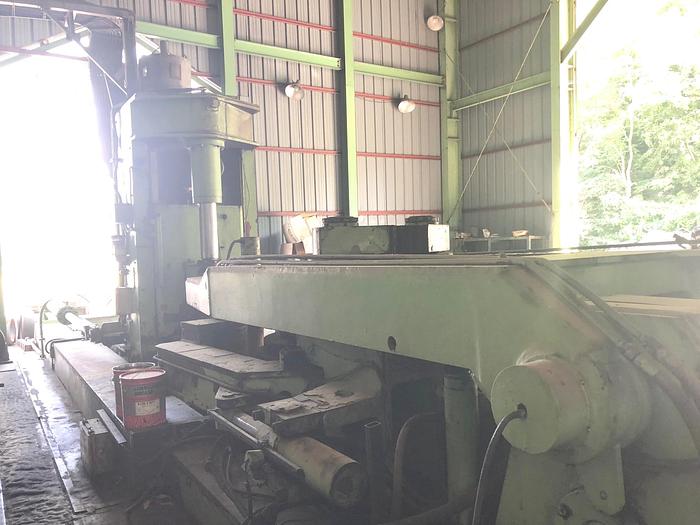

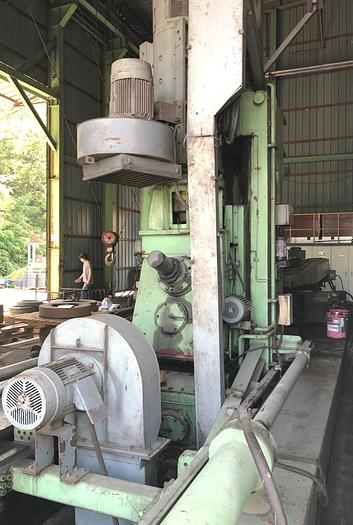

Ring Rolling Machine RAW100/80-3000/500

Max. production range : 3000 mm dia.

Radial drive power : 2 x DC 250 kw x 380 volts,

Radial roll diameter : 1000 mm,

Max radial force : 125 tons,

Diameter of mandrel : 170 mm,

Axial drive power(upper) : DC 200 kw,

Axial drive power(lower) : DC 200 kw,

Axial roll dia & length : 340 x 80 x 400 mm,

Max axial force : 80 tons,

#1 Hyd pump motor : AC 30 hp.,

#2 Hyd pump motor: AC 50 hp.,

Hydro power plant dimensions :

 #1 unit (W x L x H) : 800 x 1500 x 1300 mm,

 #2 unit (W x L x H) : 1500 x 1200 x 850 mm,

Ring height : 400 mm (Max 500).

Working hydraulic Press : Max. 200 kp/㎠,

Production range :

 Outer Dia : 3000 mm Max,

 Height: 80- 500 mm Max,

Weight: 6000 kg Max.

Wall Thickness Min. 16 mm,

Mill dimensions (W x L x H) : 2600 x 14000 x 4000 mm,

Foundation depth : 2700 mm,

Axial-roll part : 1965 (Wagner made),

FULLY REFURBISHED AND UPGRADED,2020.

Radial part : 2006,

All of the mechanical parts of the machine were rebuilt in the year 2006,

Electric and hydraulic parts of the machine are all brand new in the year 2006.

Including of:

- Retrofit

- New painting

- Export packing

- Hydraulic system

- Electric system (PLC Control)

- Operator panel with HMI

1965 Refurbished 2020.
