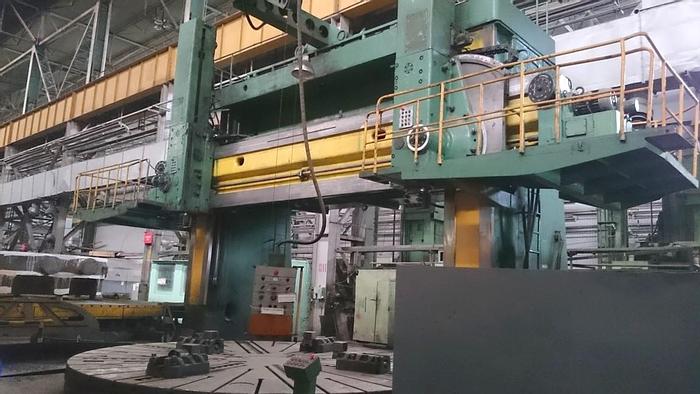

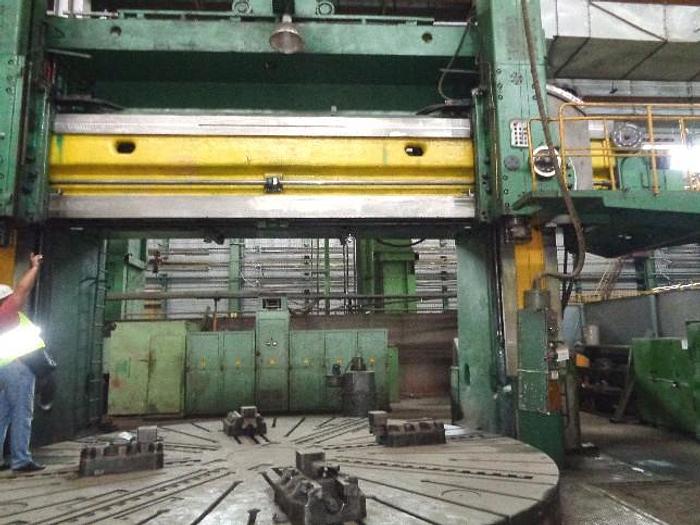

Lathe Vertical Turning 1563

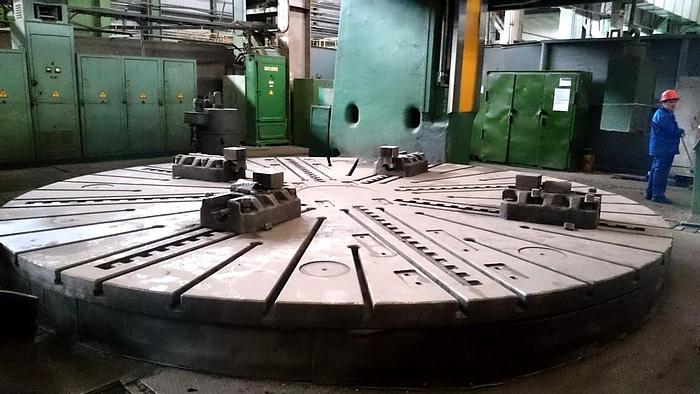

Table Diameter : 6300 mm,

Column to Column : 6300 mm,

Height from table to cross rail : 3690 mm,

Height from table to tool holder : 3550 mm,

Machine Weight : 223 Tons.

Max work load : 125 Tons,

Max work Height : 4000 mm,

Max work diameter : 6300 mm,

Ram Stroke : 2000 mm,

Min work hole diameter : 400 mm,

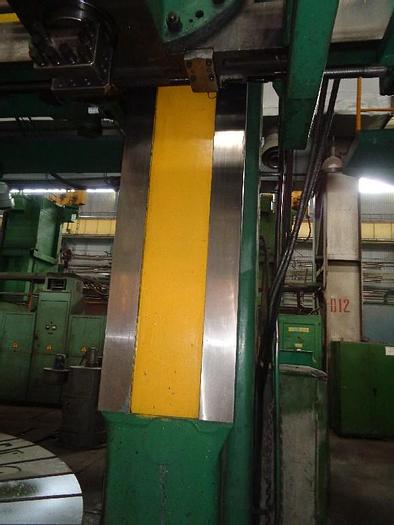

Ram size : 310 mm X 350 mm,

Ram angle [inner/outer] : 30/15 deg,

Table rotation speed : 4 X steeples 0.3 TO 25 RPM,

Cutting feed speed [X-axis] : steeples : 0.04 TO 285 mm/min,

Cutting feed speed [Z-axis] : steeples : 0.04 TO 285 mm/min,

High speed feeder [X-axis] : 2400 mm/min,

High speed feeder [Z-axis] : 2400 mm/min,

Machine Size : 14200 X 8200 X 9800 mm,

Machine gross weight : 223 tons.
