Press Transfer Mechanical T2-300-3-305
Specifications
Manufacturer | Abe Seiki,Japan |
Model | T2-300-3-305 |
Year | 1969 |
Condition | Used |
Stock Number | MA0203 |
Item condition | Good Condition |
Capacity tons | 300 |
Description
Capacity : 300 tons,
Press force at the : 125 mm,
Number of slide strokes per minute (stepless, adjustable) : 125-25,
Slide stroke : 255 mm,
Slide shift : 200 mm,
Tool holder shift : 12,7 mm,
Max. extract depth : 90 mm,
Clamping plate thickness : 150 mm,
Height of lower parts of tool : 350 mm,
Passage in the table : 250 x 500 mm,
Passage in the clamping plate : 245 x 480 mm,
Main motor : 800-1600 rpm, 21 kW,
Servo motor of slide : 1500 rpm, 4 kW,
Max. sheet width : 630 mm,
Min. sheet width : 125 mm,

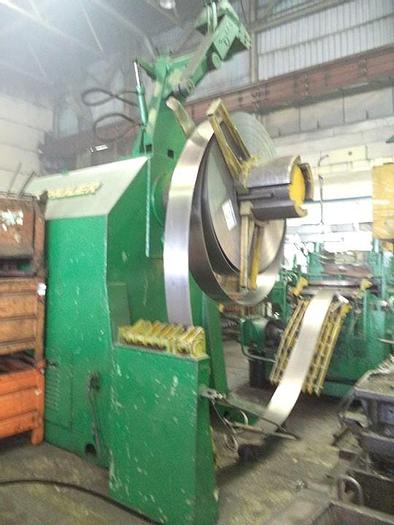

Max. external diameter of sheet roll : 1800 mm,
Max. internal diameter of sheet roll : 800 mm,
Min. internal diameter of sheet roll : 490 mm,
Max. weight of sheet roll : 12 tons,
Max. sheet thickness : 4 mm,
Min. sheet thickness : 0,8 mm,

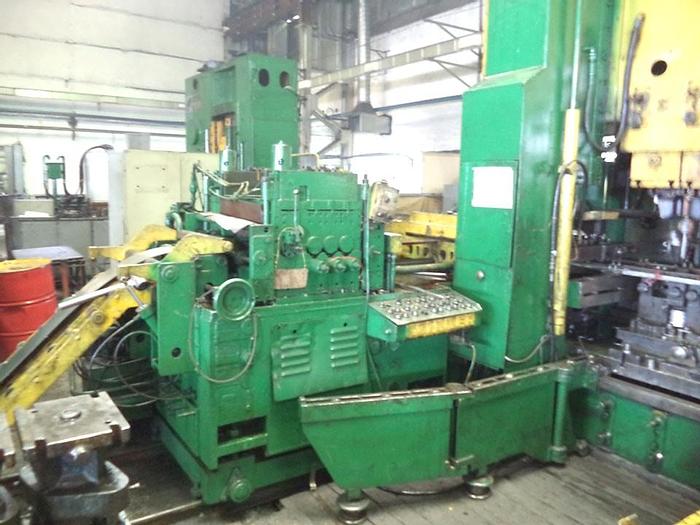

Levelling device :
-Max. sheet width : 630 mm,
-Max. sheet thickness : 4 mm,
-Number of levelling rollers above : 4,
-Number of levelling rollers below : 3,
Quantity No. : 2.
