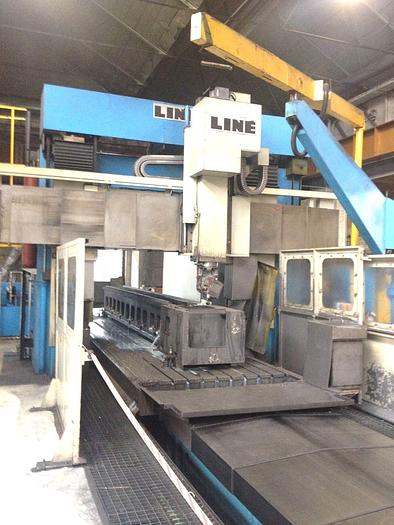

Plano Miller CNC S222F60

X-axis traverse : 10000 mm,

Y-axis traverse : 3000 mm,

Z-axis traverse : 1000 mm,

W-axis traverse : 1500 mm,

PORTAL / BRIDGE

Distance between columns : 2500 mm,

TABLE

Clamping surface (left-right) : 8500 mm,

Clamping surface (front-back) : 2000 mm,

Workpiece load (max) : 56 tons,

WORKING SPINDLE / HEAD

Spindle revolutions (min) : 200 /min,

Spindle revolutions (max) : 2000 /min,

Number of gears : 1,

Taper fixture : ISO SK 50,

Drive power (max) : 37 kW,

Torque (max.) : 1900 Nm,

Max. distance spindle ... clamping surface : 2000 mm,

AXIS DRIVES

 feed velocity (min) : 1 mm/min,

 feed velocity (max) : 4500 mm/min,

ATTACHMENTS

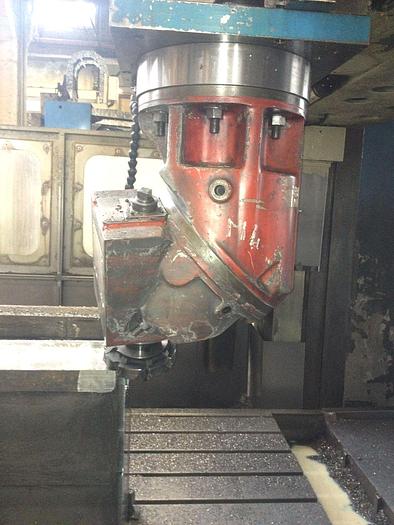

Angular milling head : Yes

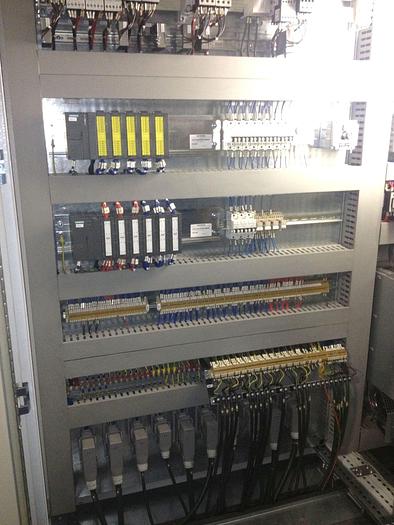

Control : CNC controls SIEMENS 840D.
