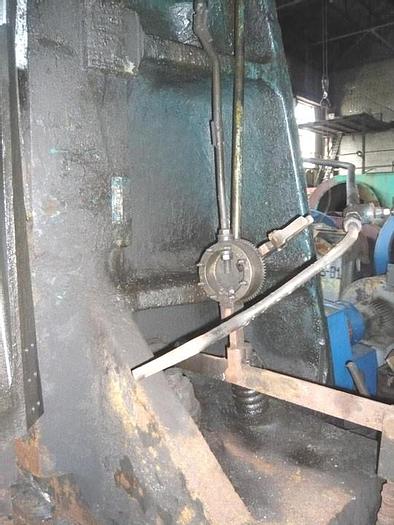

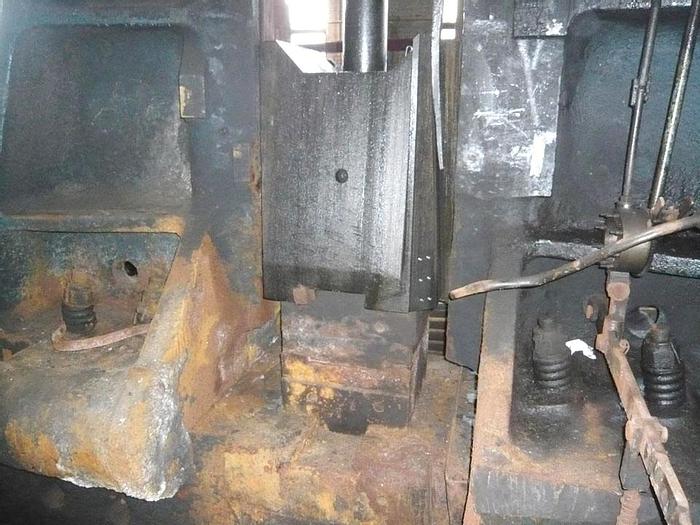

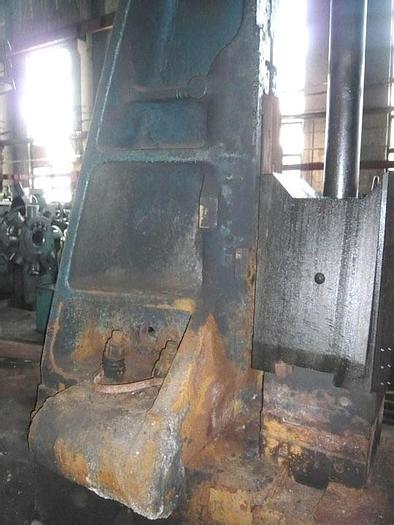

Hammer Forging Pneumatic M212

Capacity : 2 tons,

Impact energy : 50 kj,

Max. no. of blows : 70 per minute,

Max. ram stroke : 1200 mm,

Distance clear between guides : 600 mm,

Ram front-to-back dimensions : 670 mm,

Die-holder front-to-back dimensions : 900 mm,

Bottom die impression-to-floor distance : 800 mm,

Minimum die holder-to-ram distance : 260 mm,

Steam (air) pressure : 0.6-0.8 MPa,

Overall dimensions : floor space 3650 x 1660 mm,

Height above floor level : 5310 mm,

Mass (less anvil block) approx. : 18 tons,

Mass if anvil block approx. : 40 tons,

In 2009 the casing, the sleeves, the slide, head stock and die-holder as well as the grinding of head stock guides and the valve of hammer control were replaced. In 2010 it has been stopped due to changes of technological process i.e. the hammer after overhaul on mechanics.
