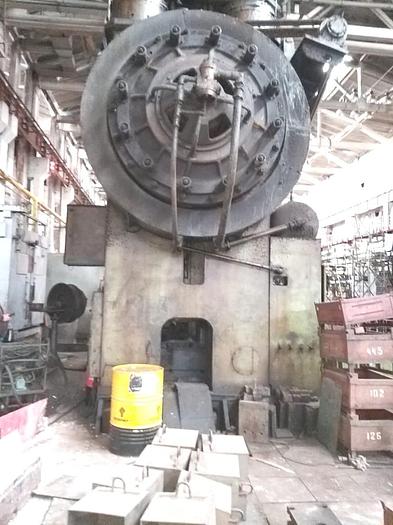

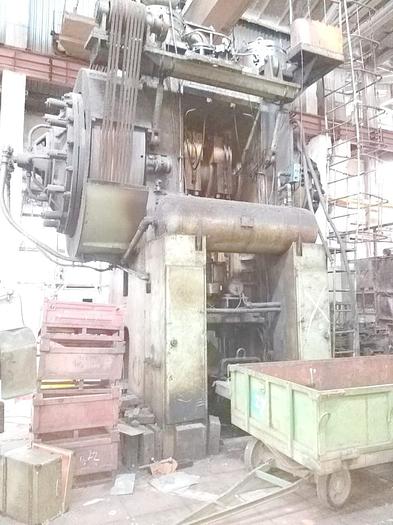

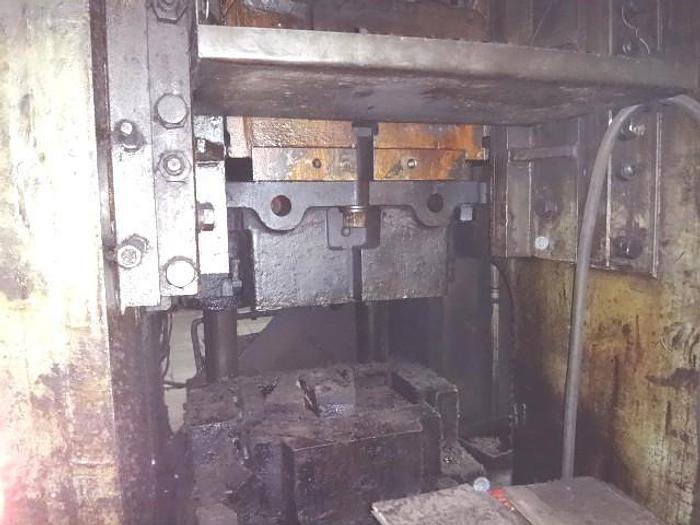

Press Hot Forging KB8544

Capacity : 2500 tons,

Slide stroke : 350 mm,

Continuous stroke per minute : 70 N°,

Connecting rod : 2 N°,

Single stroke per minute : 16 N°,

Die space : 890 mm,

Die space adjustment in the ram : 10 mm,

Table dimensions :-

L to R : 1280 mm,

F to B : 1400 mm,

Ram dimensions :-

L to R : 1090 mm,

F to B : 1150 mm,

Upper knockout :-

Power : 6,3 TN,

Stroke : 50 mm,

Pushers :1 N°,

Lower mechanical knockout (with 2 positions)

Power : 10 tn,

Stroke : 50 mm,

Pushers : 1 N°,

Uprights opening dimensions :-

L to R : 800 mm,

Height : 1000 mm,

Main motor power : 110 kW

Overall dimensions :-

L to R : 5645 mm,

F to B : 4340 mm,

Height above floor level : 6850 mm,

Press weight : 185 ton,

Bolster is included.
