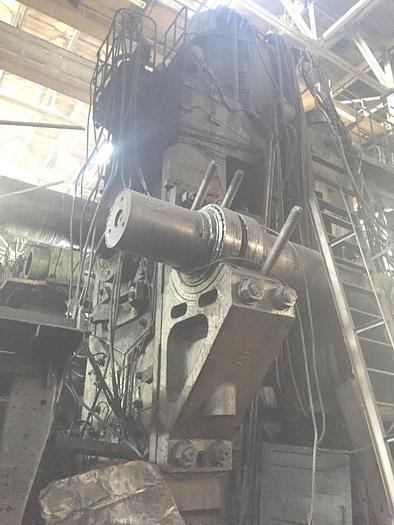

Press Hot Forging K8548

Sold

Specifications

ManufacturerKramatorsk
ModelK8548
Year1988
ConditionUsed
Stock NumberMA0189
Item conditionReconditioned
Capacity tons6300

Description

Capacity : 6300 tons,

Stroke : 460 mm,

Stroke per minute : 12,5-40 stroke/min.,

Shut height : 1150 mm,

Table height adjustment : 15 mm,

Table dimensions (depth x width) : 1950 x 1900 mm,

The size of a slider (depth x width) : 1680 x 1680 mm,

Upper knock-out capacity : 10 ton,

Lower knock-out capacity : 16 ton,

Number of turns of the electric motor : 590 rpm,

Main motor power : 400 kW,

Machine overall dimensions(L x W x H) : 8600 x 5900 x 12700 mm,

Weight : 649 tons.


We will also supply brand new manufactured by Kramatorsk factory:

- main and pinion gear,

- clutch hub,

- conical bushes,

- driving disk,

- driven disk,

- fly wheel,

New design of press with 3 counter-balance cylinders and wider ram.
