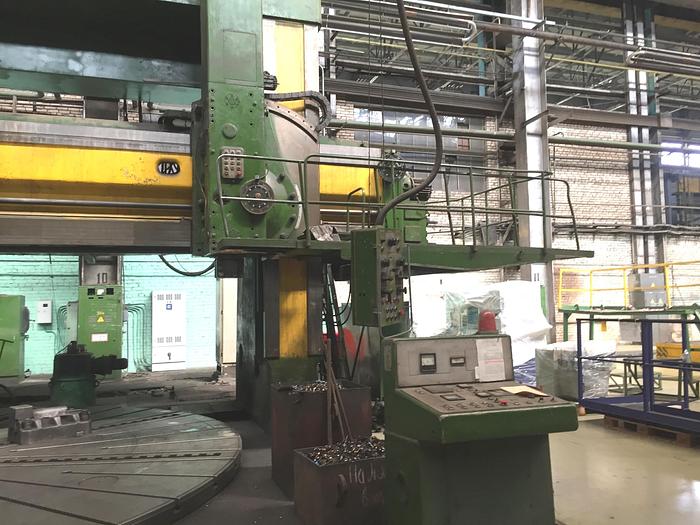

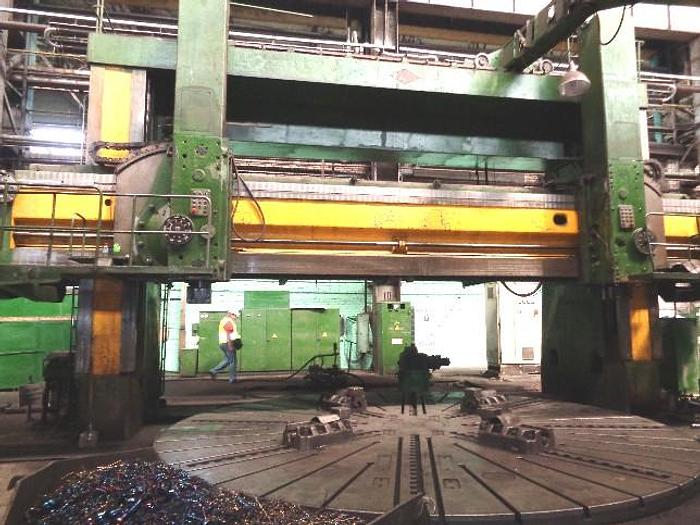

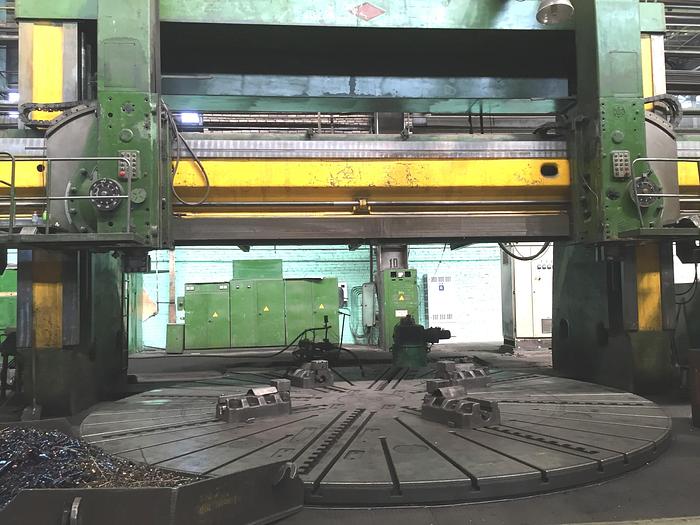

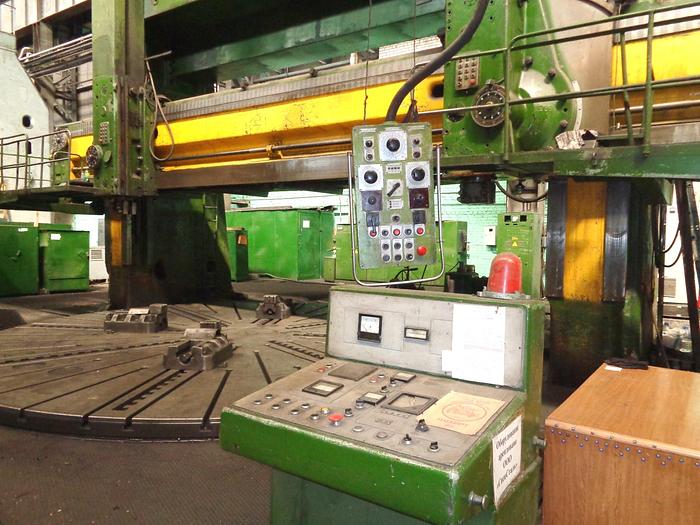

Lathe Vertical Turning 1580L
Specifications
| Manufacturer | Kolomna, Russia |
| Model | 1580L |
| Year | 1968 |
| Condition | Used |
| Stock Number | MA0188 |
| Item condition | Good working condition |
| Capacity tons | 7200 |
Description
Face plate diameter : 7200 mm,
Max. work piece diameter : 8000 mm,
Max. work piece height : 3200 mm,
Max. work piece weight : 125 tons,
Max. travel of vertical supports : 4275 mm,
Max. slider movement : 2000 mm,
Supports possible work angle : - 15... +30 deg,
Chuck speed : 0,22...18,3 rpm,
Movement of vertical and horizontal feeds : 0,0352...285 mm/min,
Main electric motor power : 132 kW,
machine overall dimensions : 8615 x 17600 x 9800 mm,
Height above floor level : 8300 mm,
Machine weight : 257 tons.
