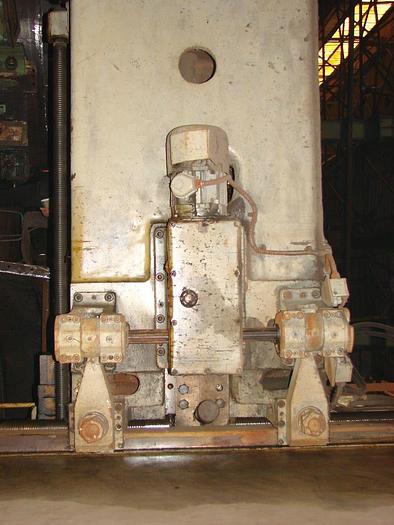

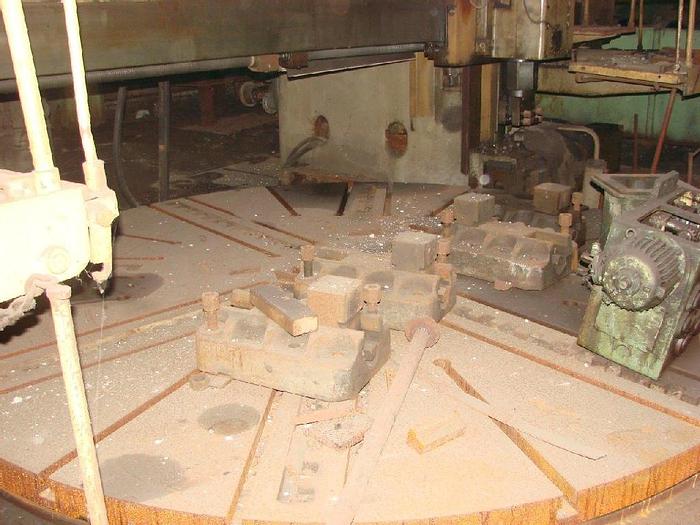

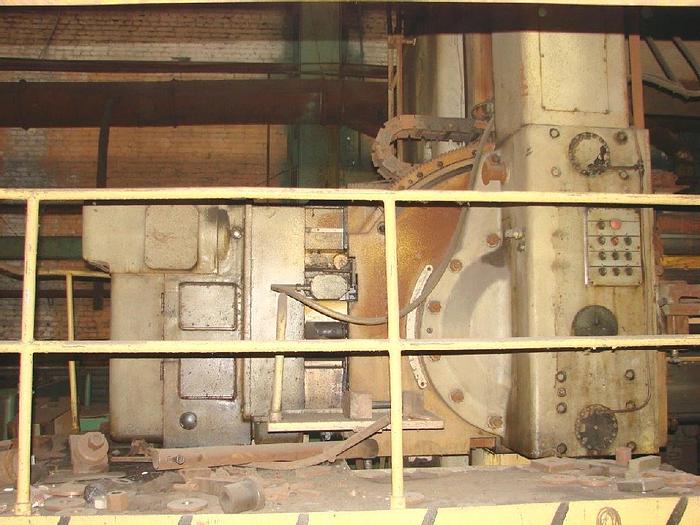

Lathe Vertical Turning 1540F1

Chuck dia : 4000 mm,

Work piece swing : 4000 mm,

Work piece maximum height : 2000 mm,

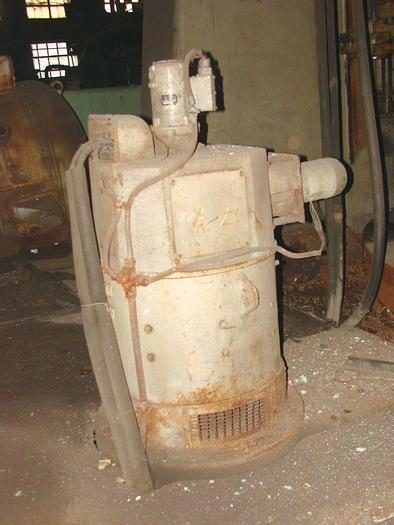

Main electric motor power : 125 kW,

Maximum support angular displacement degree -15,

Work piece maximum ton weight : 63 tons,

Maximum digging force on right support kilogram-force : 6300,

Maximum digging force on left support kilogram-force : 5000,

Maximum digging force on right and left supports kilogram-force : 10000,

Maximum digging moment on chuck kilogram-force * m 16000,

Chuck speed rpm 0,52 - 48,7,

Support slider stroke length : 1600 mm,

Slider (Support) movement speed : 2950 mm/min,

Boring spindle maximum length : 800 mm,

Side support stroke length : 950 mm,

Support vertical stroke length : 1820 mm,

Maximum digging force of support kilogram-force : 3000,

Face-milling cutter maximum dia : 110 mm,

Machine overall dimensions : 5900 x 10100 x 7200 mm,

Height above floor level : 6000 mm,

Machine weight : 100 tons.
