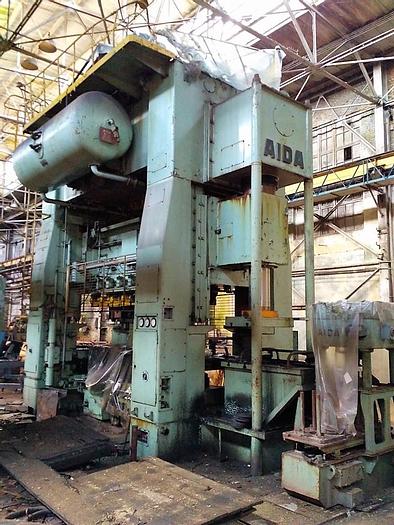

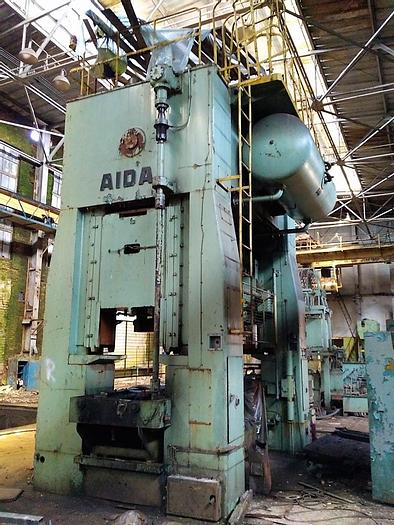

Press Transfer Mechanical FT2-20

Capacity : 200 tons,

Stroke length : 500 mm,

Number of strokes per minute : 10-22/min,

Max. cutting size : 380 mm,

Max. extract depth : 180 mm,

Number of positions : 8,

Capacity of each position : 80 tons,

Capacity cutting position : 50 tons,

Shut height : 850 mm,

Ram adjustment : 50 mm,

Distance between position : 400 mm,

Bolster plate area : 2800 x 1000 mm,

Die holder area : 390 x 900 mm,

Main electric motor power : 45 kW.

Feeder :

Length feeding stroke : 400 mm,

Length clamping stroke : 50 mm.
