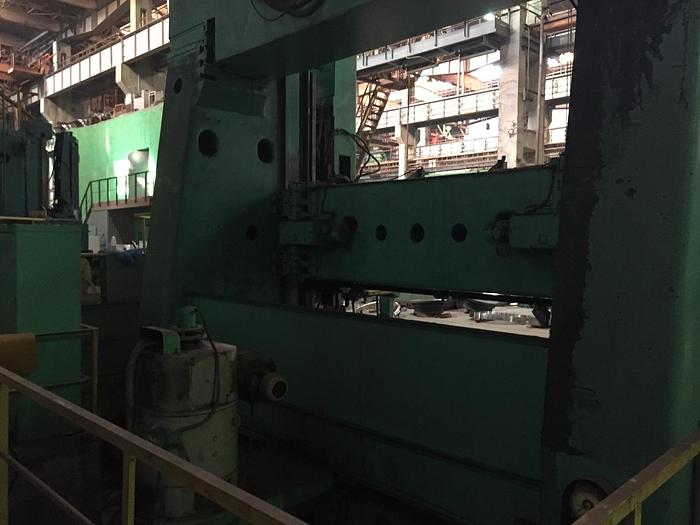

Lathe Vertical Turning 1540F1
Specifications
Manufacturer | Abe Seiki,Japan |
Model | 1540F1 |
Year | 1975 |
Condition | Used |
Stock Number | MA0133 |
Item condition | Good Condition |
Capacity tons | 4000 |
Description

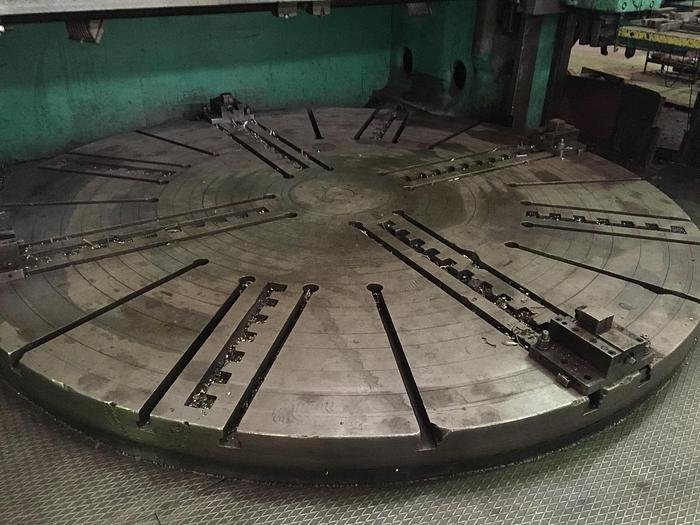

Chuck dia : 4000 mm,
Work piece swing : 4000 mm,
Work piece maximum height : 2000 mm,
Main electric motor power : 125 kW,
Maximum support angular displacement degree -15,
Work piece maximum ton weight : 63 tons,
Maximum digging force on right support kilogram-force : 6300,
Maximum digging force on left support kilogram-force : 5000,
Maximum digging force on right and left supports kilogram-force : 10000,
Maximum digging moment on chuck kilogram-force * m 16000,
Chuck speed rpm 0,52 - 48,7,
Support slider stroke length : 1600 mm,
Slider (Support) movement speed : 2950 mm/min,
Boring spindle maximum length : 800 mm,
Side support stroke length : 950 mm,
Support vertical stroke length : 1820 mm,
Maximum digging force of support kilogram-force : 3000,
Face-milling cutter maximum dia : 110 mm,
Machine overall dimensions : 5900 x 10100 x 7200 mm,
Height above floor level : 6000 mm,
Machine weight : 100 tons.
