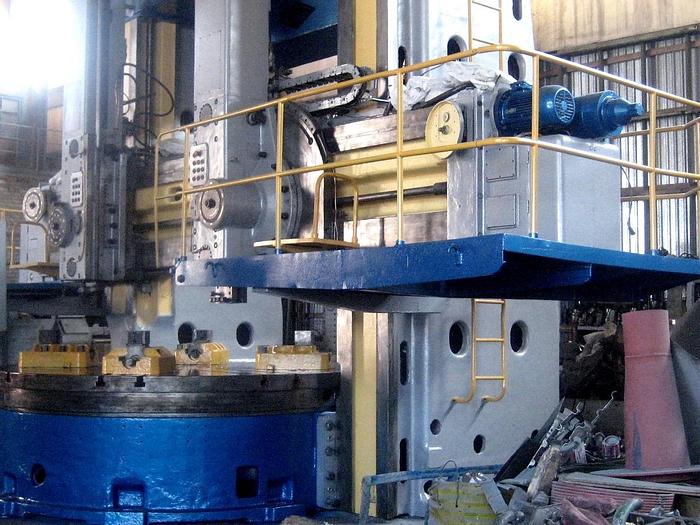

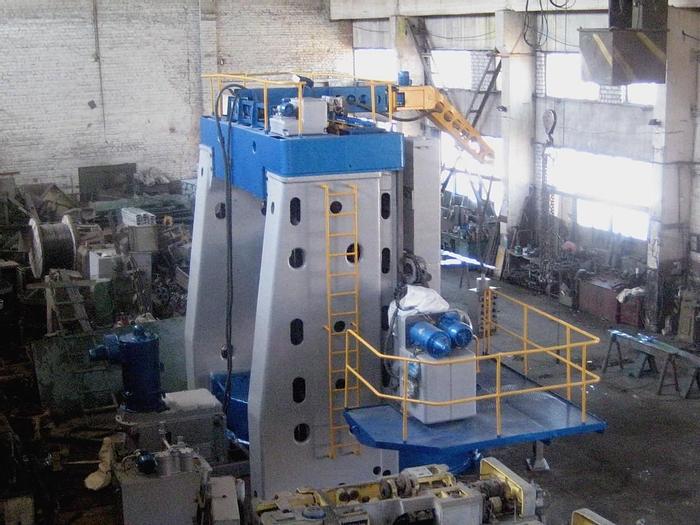

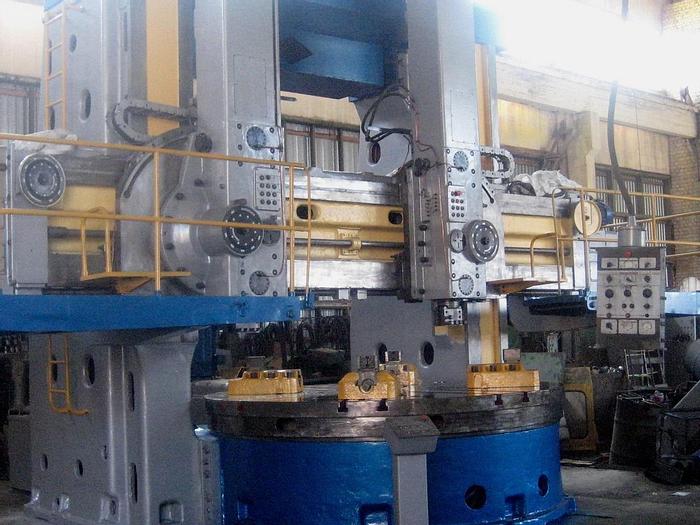

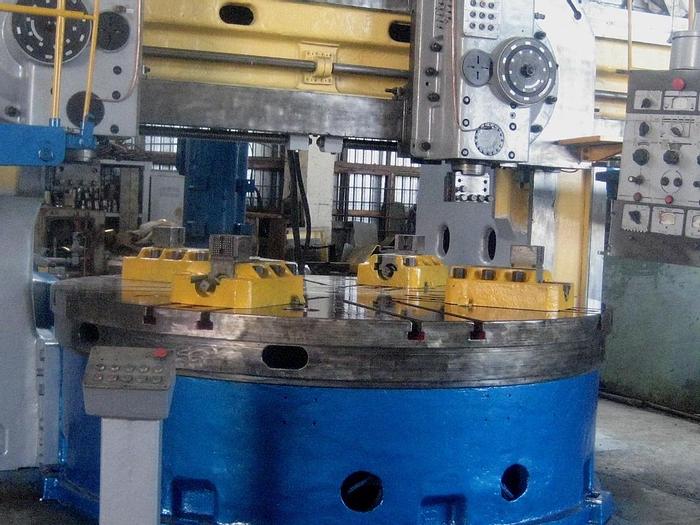

Lathe Vertical Turning 1532T
Sold
Specifications
Manufacturer | Abe Seiki,Japan |
Model | 1532T |
Year | 1985 |
Condition | Used |
Stock Number | MA0126 |
Item condition | Excellent |
Capacity tons | 3200 |
Description
Turning diameter : 3200 mm,
Face plate diameter : 3200 mm,
Turning height : 2000 mm,
Work piece weight : 40000 kg,
Number of tool slide : 2,
Horizontal stroke of tool slide : 1960 mm,
Vertical stroke of tool slide : 1250 mm,
Distance between tool slide centers : 3800 mm,
Tool slide positioning speed : up to 2540 mm/min,
Cross rail travel : 1873 mm,
Distance between the face plate and the cross rail : 2373 mm,
Distance between the face plate center and the column : 1676 mm,
Face plate speed : 0,66-62 rpm,
Main drive power : 63 kw,
Machine weight : 90.4 tons.
