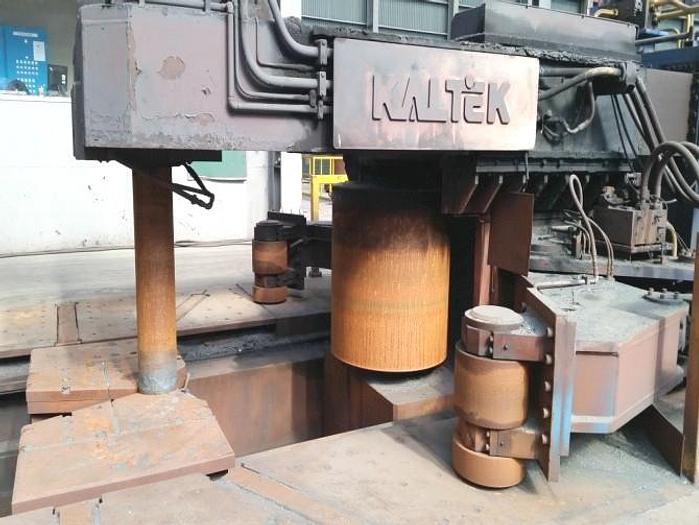

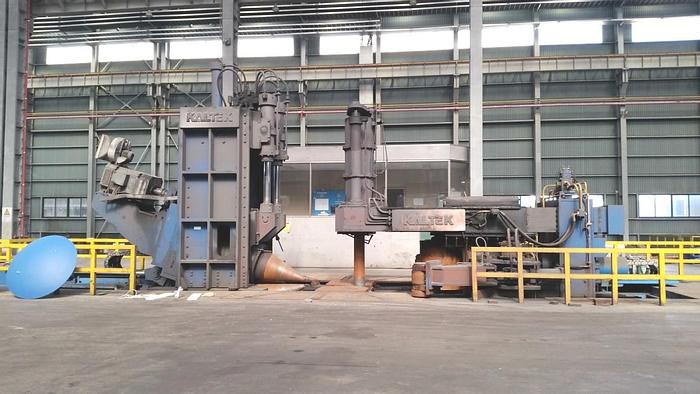

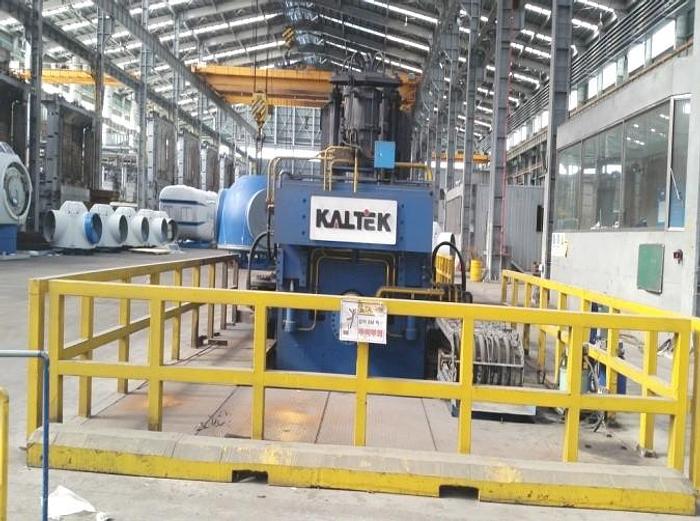

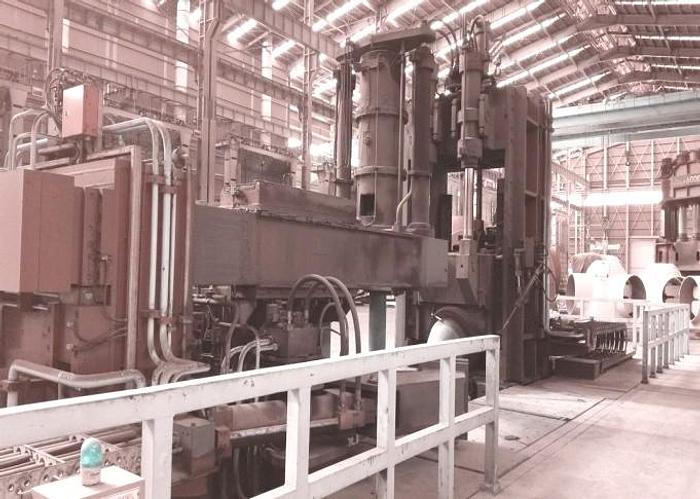

Ring Rolling Machine Kalltek

Sold

Specifications

ManufacturerAbe Seiki,Japan
Year2008
ConditionUsed
Stock NumberMA0094
Item conditionGood Condition
Capacity tons5300

Description

Ring rolling dia : 5300 mm,

Work dia range : 800~5300 mm,

Work height range : 100~1000 mm,

Length : 22000 mm,

Width : 5600 mm,

Height : 5500 mm,

Height of rolling table above floor, approx : 100 mm,

Possible capacity : 15 ton,

Normal Dia. : 1,200 mm,

Height : 1,250 mm,

Usable table : 1100 mm,

Angle of cone : 35 degrees,

Mandrel dia. At max ring height and max Radial rolling force : 300 mm,

Mandrel slide horizontal max : 700 mm,

Axial frame, horizontal, max. 5,500 mm,

Upper axial roll, vertical, max : 1100 mm,

Pump main Motor : 90kw /440v / 60hz - 3sets (Hisco-Korea),

Boost pump Motor : 1.5kw / 440v / 60hz - 1sets(Hisco-Korea),

Circulation pump Motor : 11kw / 440v / 60hz - 1set(Hisco-Korea),

Descaling pump motor : 11kw / 380v /60hz - (TecnoMEC),

Pilot pump motor : 5.5kw / 440v /60hz - 1set,

Pt-1 : 3p 2w/440v/110v /50VA,

Main roll DC motor : 800kw/ 440v/ 700~1,100rpm x1set,

Axial roll DC motor : 400kw/ 440v/ 700~1,000rpm x 2sets,

Radial rolling force Max : 3,500 kN,

Axial rolling force Max : 3,000 kN,

Electric Power total : 1,900 kva/60 hz,

Compressed air.

Operating pressure : 4~7 bar.

Air consumption : at 20℃ 70 m3/hr.
