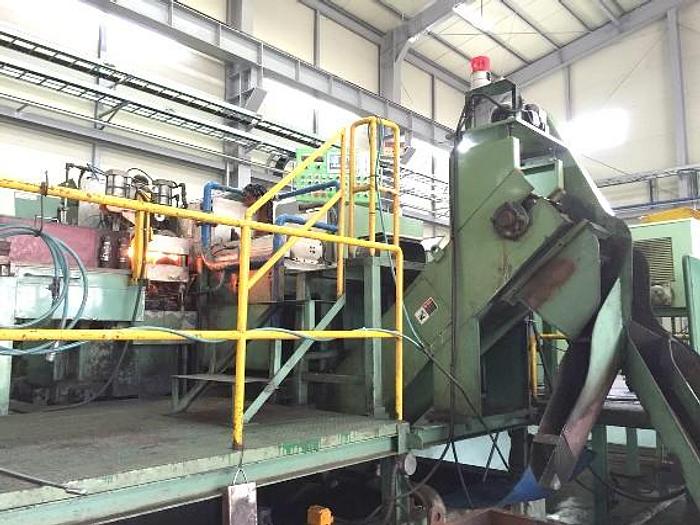

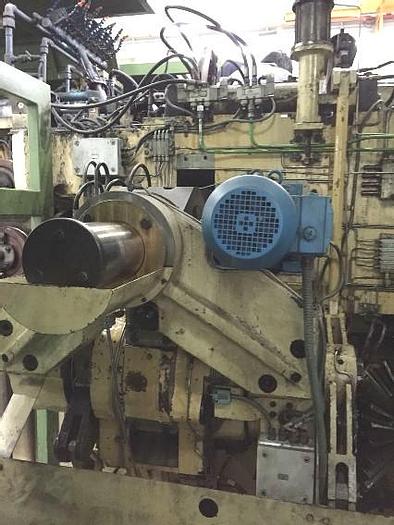

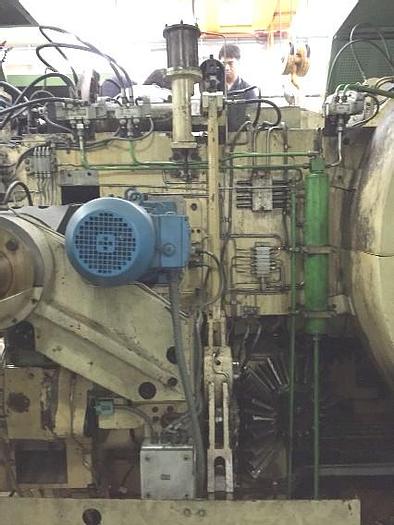

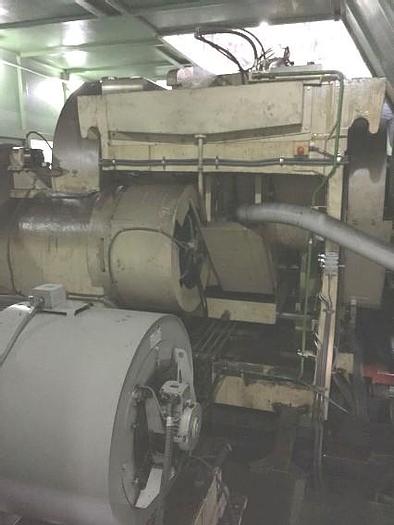

Part Former Hot TPM50XL

Capacity : 8000 tons,

Max. OD of a single ring : 104 mm,

Max. OD of a double ring : 94 mm,

Maximum height of a single product : 60 mm,

Initial slug diameter

Maximum : 50 mm,

Minimum : 28 mm,

Initial slug length:

Maximum : 110 mm,

Minimum : 25 mm,

Initial slug weight : 0,17-1,7 kg,

Slide strokes per minute (step less adjustable)

Maximum : 100 spm,

Minimum : 60 spm,

Slide stroke : 240 mm,

Die kick out stroke : 90 mm,

Punch kick out stroke : 48 mm,

working stations number : 4 no,

Distance between forming stations : 240 mm,

Distance between cut off station and the 1st forming station : 210 mm,

Feed C.1. height above floor level : 1500 mm,

Number of short ends per bar discharged at automatic max : 3 no,

Main drive electric motor power : 235 kWt,

Power supply mains requirements : 3-phase

                           380V±10%

                            50Hz

Power supply requirements for control system : 220

                                     24 V,

Compressed air pressure : 0,6 MPa,

Cooling water pressure : 0,5-0,6 MPa,

Cooling water consumption : 70 m3/hour

Hot former overall dimensions

Length : 9770 mm,

Width : 7140 mm,

Height (above floor level) : 5000 mm.
