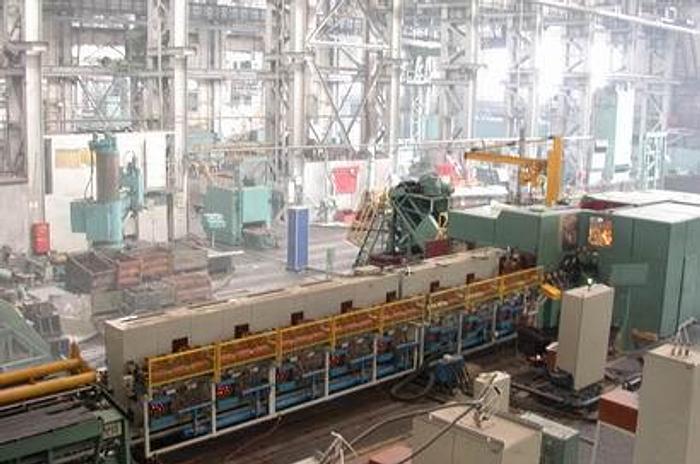

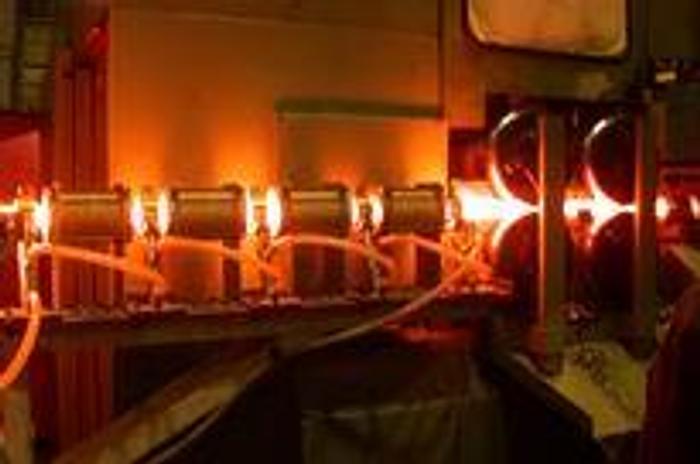

Part Former Hot TPM30

Sold

Specifications

ManufacturerAbe Seiki,Japan
ModelTPM30
ConditionUsed
Stock NumberMA0088
Item conditionBrand New
Capacity tons250

Description

Capacity : 2500 kN,

Slide stroke : 160 mm,

Slug length for one forged part:

Minimum: 20 mm,

Maximum: 72 mm,

Max. forged part OD: 67 mm,

Max. forged part height: 40 mm,

Slide SPM: 10...120 min-1,

Die kick out stroke: 70 mm,

Punch kick out stroke: 26*1 mm,

Number of stations:3,

Distance between forming stations: 160 mm,

Distance between cut of station and the 1 st forming station: 16 mm,

Slug weight: 0,05...0,7 kg,

Total power of electric motors: 72,02 kW,

Main drive electric motor power: 71 kW,

Compressed air pressure: 0,4+0.1 MPa,

Cooling water pressure : 0,6 MPa,

Hot former overall dimensions:

Length : 5330 mm,

Width : 3230 mm,

Height above floor level: 2980 mm.
