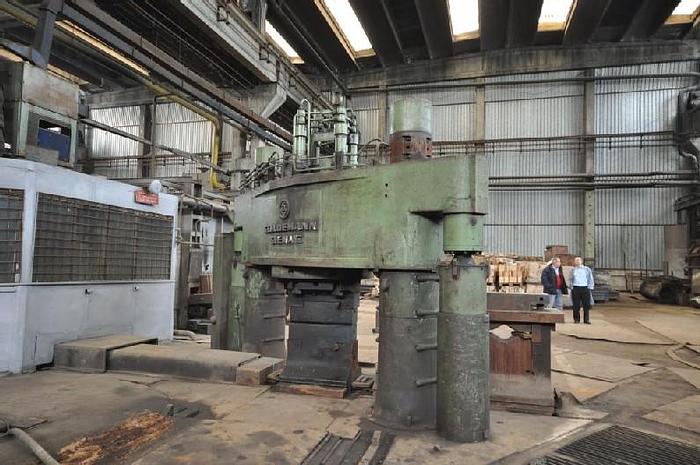

1000 tons Press Forging Open Die Hydraulic Schloemann
![Used 1000 tons Press Forging Open Die Hydraulic Schloemann](https://i.machineryhost.com/c63ed78f3613f4d860647098bcd09fa6/large-NA26124_Schloeman_1.jpg)
Specifications
Manufacturer | Schloemann |
Year | 1985 |
Condition | Used |
Stock Number | MA0070 |
Item condition | Good Condition |
Capacity tons | 1000 |
Description
Capacity : 1000 tons,

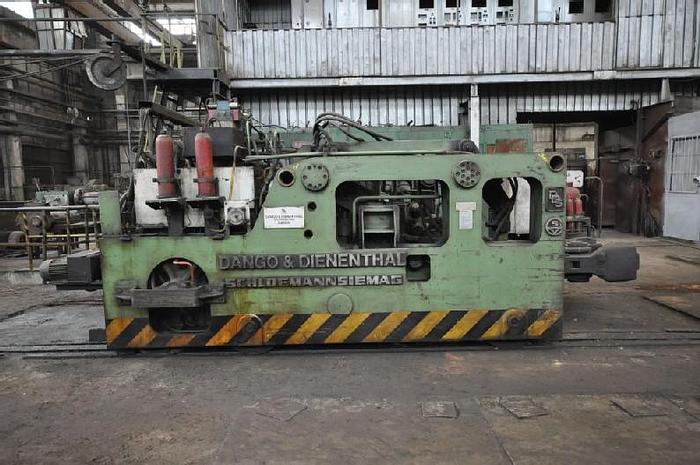

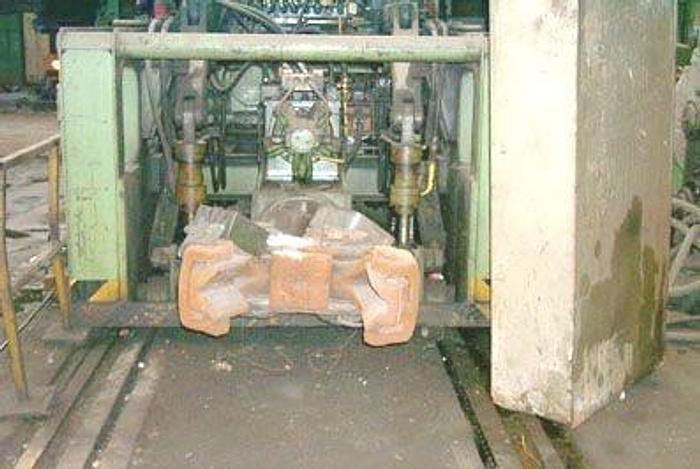

With 3 ton DANGO manipulator,
Running pressure : 315 kp/cm2,
Compressing force : 1000 Mp,
Retraction force : 240 Mp,
Piston stroke : 800 mm,
Clear space between gripping surface : 2250 mm,
Dimensions of the stand : 2000 x 1440 mm,
Stroke of the regulation device : 2 x 900 mm,
Maximum press height : 4000 mm,
maximum depth of the foundation : 5000 mm,
Speed and Performances :-
Speed of descent : 250 mm,
Compressing speed : 110 mm,
Retraction speed : 250 mm,
Start - up :-
Hydraulic installation (HD) for the press operation consists in .
1) Hydraulic pumps type Fabrikat Nepuko, RP315-500, adjustable radial :
Flow rate for 200kp/cm2 : 715 1/min,
Flow rate for 315 kp/cm2 : 450 1/min,
Number of rotations per minute : 750 U/min,
Starting power : ca 20 kW,
2) Filling Pump :-
Operation pressure : 4 kp/cm2,
Flow rate : 1300 1/min,
Starting power : 22 kW,
Number of rotations per minute : 3000 U/min,
3) Cooling pump :-
Operation pressure : 4 kp/cm2,
Flow rate : 1300 1/min,
Working power : 22 kW,
Number of rotations per minute : 3000 U/min.
For each hydraulic pump consisting in :-
Lubricating pump,
Pressure sensors,
Filter,
Recirculation equipment,
Safety valve.
An oil supply installation consist in :-
1) ND oil pump,
Running pressure : 100 kp/cm2,
Flow rate : 180 1/min,
Operation spindle power : 37 kW,
Number of rotations per minute : 1500 U/min,
2) Electrically driven valve,
3) Pressure switch,
4) Safety valve for the running circuit and all required off shuttings,
5) ND oil pump with mountings,
Running pressure : 100 kp/cm2,
Total capacity : 2 x 32 1/mm,
Useful capacity : 131 mm,
1000 tons Schloemann press wit Dango manipulator, The press is very little used as mechanic and hydraulic.
Need new control.
