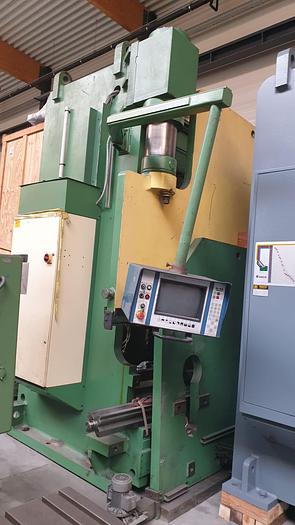

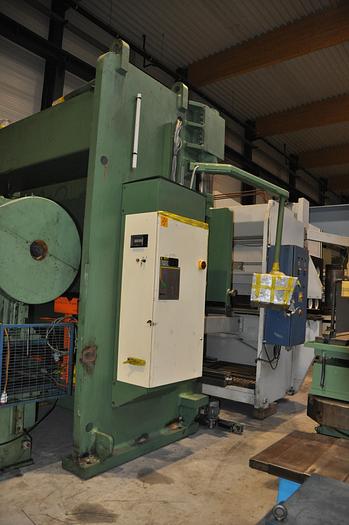

Press Brake Hydraulic CNC Haco
Specifications
| Manufacturer | Haco |
| Condition | Used |
| Stock Number | MA0060 |
| Item condition | Good working condition |
| Capacity tons | 400 |
Description
Capacity : 400 tons
Max length : 5600 mm,
Passage between uprights : 4600 mm,
Max stroke : 300 mm,
Max distance between table -- ram : 550 mm,
Depth of throat : 330 mm,
Locking speed : 90 mm/sec,
Working speed : 7 mm/sec,
Returning speed : 60 mm/sec,
Electric motor (power) : 37.5 kW,
Length L -- R : 6150 mm,
Weight : 38 tons,

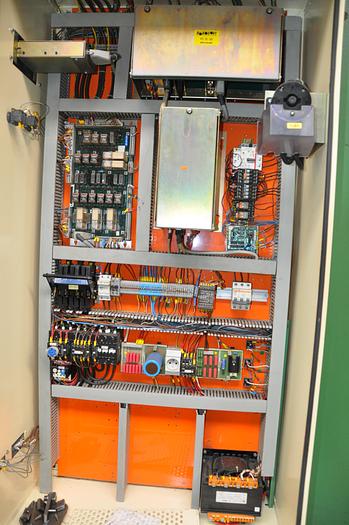

Control : BC 45 Graphic 3 axes,
Technical manuals available.
