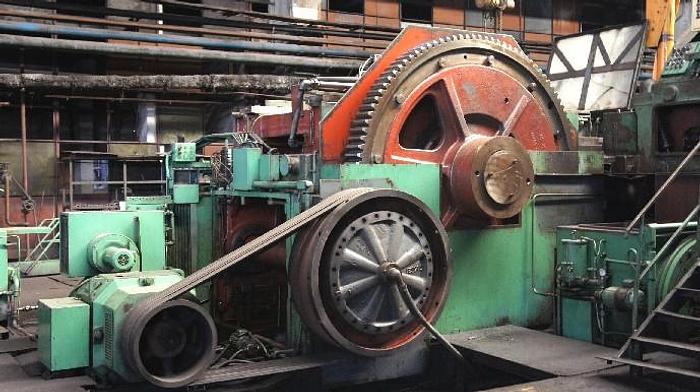

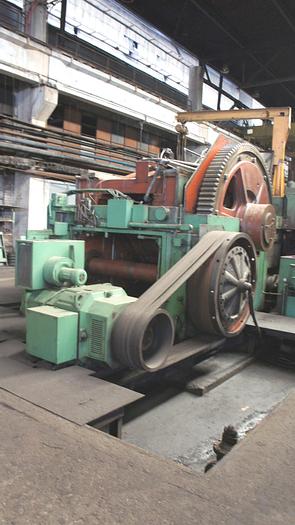

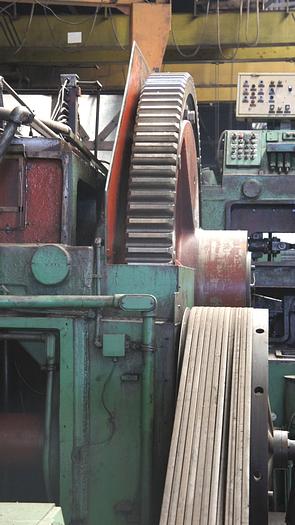

Part Former Hot HF6/4

Forming sections : 4,

Press capacity : 1200 tons,

Max outer diameter of piece : 120 mm,

Max. bar diameter : 65 mm,

Length for cutting : 45-140 mm,

Stroke of ram : 381 mm,

Stroke of cutting arm : 254 mm,

Stroke : 40-70 /min,

Weihht of piece : 0.4-3.1 kg,

Power of induction heating installation : 3.000 KW,

Main motor power : 300 KW,

Power of auxiliary motors : 7.1 KW,

Productivity : 1650-4500 pcs/h,

Weight: 180 tons.

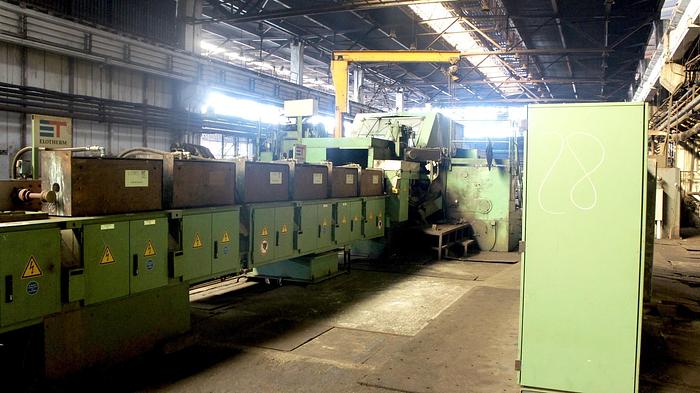

This machine has induction system also included

Type : T.T.U. Al,

Manufacturer : electroputere,

Rated capacity : 4000 / 2000 / 2000 KVA,

High - voltage : 600 V,

Low - voltage : 5700 V,

Output - voltage : 546 V,

Frequency : 50 Hz,

Phase : 6,

Connection method : Dyn11.

In 2004 the National HF 6/4 machine was completely reconditioned, besides replacing the mechanical components used, it was made the complete replacement of the induction heating installation

with a new one; also the original lubrication system TRABON was updated. In the URB bearings plant with this National 6/4 it used toproduce bearing rings, maximum outer diameter 120 mm, for oscillating bearings with balls, radial bearings and tapered rollers bearings, from bar steel 100 Cr6 (Max. diameter of bar is 65 mm), with the maximum weight of 3.1 Kg. Also, on this machine it had been made cardan crosses.

Electric engine : 1 piece,

Adjustment wedges : 2 pieces,

Superior pliers : 1 piece,

Inferior pliers : 1 piece,

Die mass clamping piston : 1 piece,

Break belt :1 piece.
