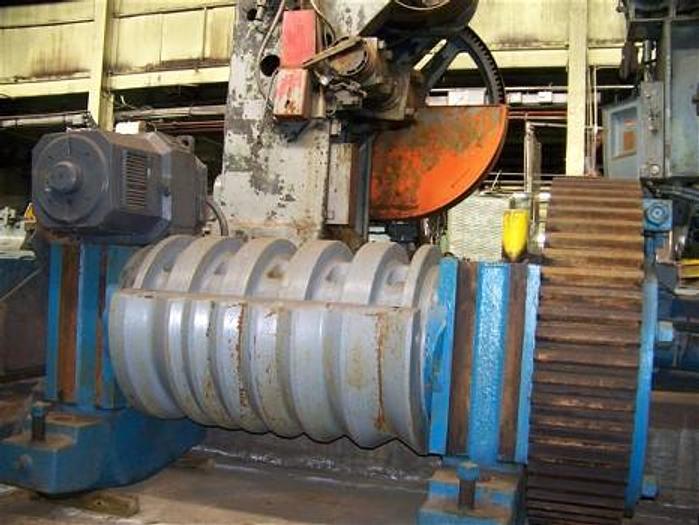

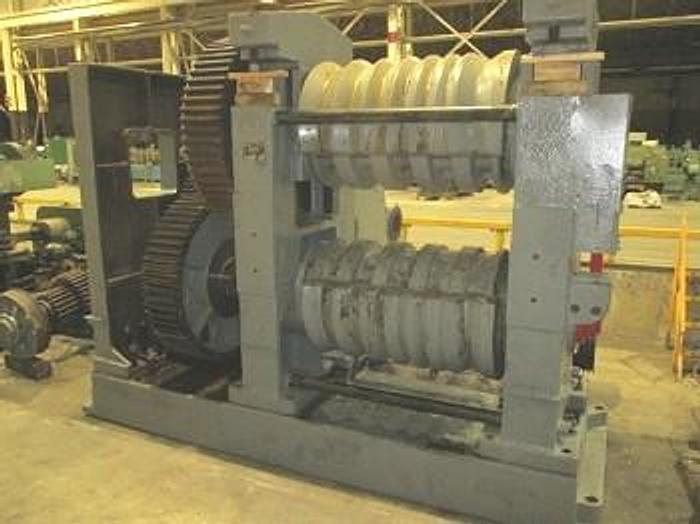

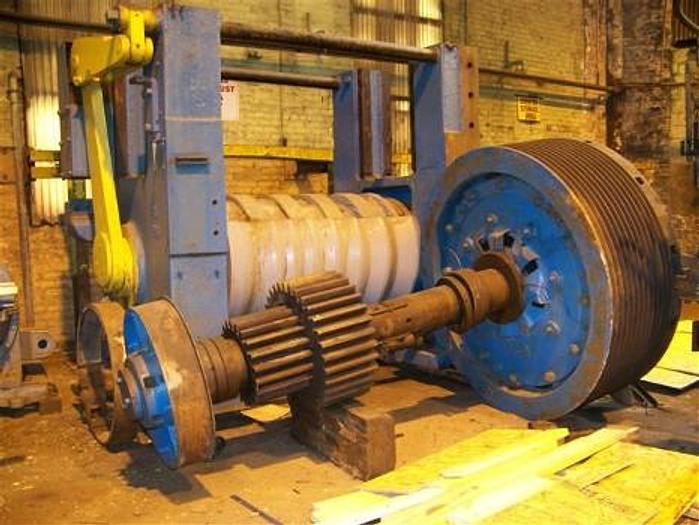

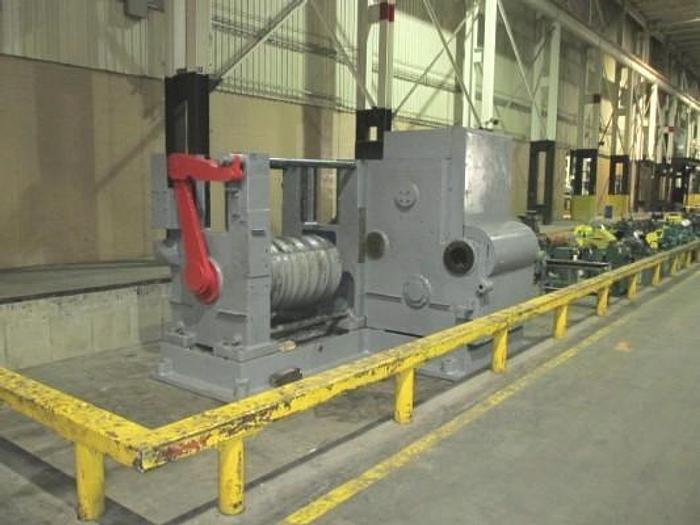

Reduce Forging Roll Ajax 6

Working Pressure : 100 tons,

Width of Roll dies : 1500 mm,

Maximum roll die dia. : 1100 mm,

Maximum Length rolled section : 2050 mm,

Weight, approx. : 160 tons,

Maximum Billet Dia : 300 RCS mm,

Equipped With:

Air Clutch,

Side Shear,

Works 1 x 12" to 8" RCS; 100 ton working pressure,

Inboard Type,

300 HP G.E Induction Electric Motor : 568 Frame,

Total weight, per catalog, is 135,000 lbs.

We estimate the Base Plate : 35,000 lbs,

Frame : 45,000 lbs,

Rolls : 18,000 each,

Elec. panels and Motor : 20,000 lbs.

Motor (LxWxH) : 2150 x 1250 x 1250 mm,

Main Frame (LxWxH) : 4470 x 1500 x 2375 mm,

Back Shaft (LxWxH) : 3000 x 1750 x 1750 mm,

Gear Frame (LxWxH) : 3375 x 2150 x 2800 mm,

Roll (LxWxH) : 3100 x 1500 x 1500 mm,

Base Plate (LxWxH) : 4400 x 3300 x 600 mm,

Elec. Panel (LxWxH) : 1450 x 1700 x 2300 mm.
