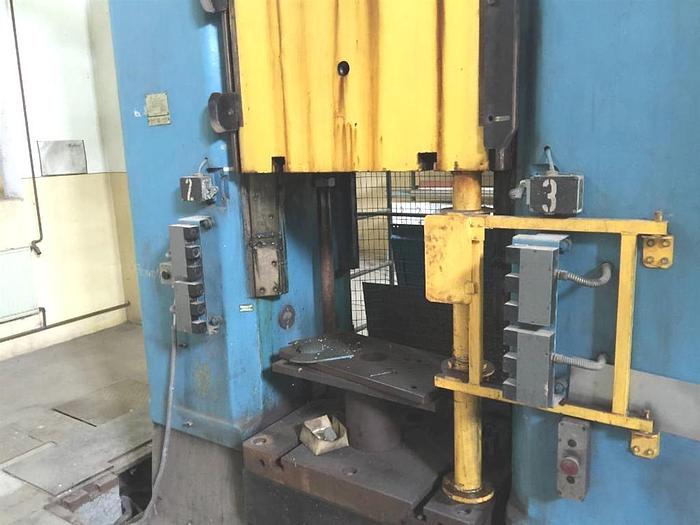

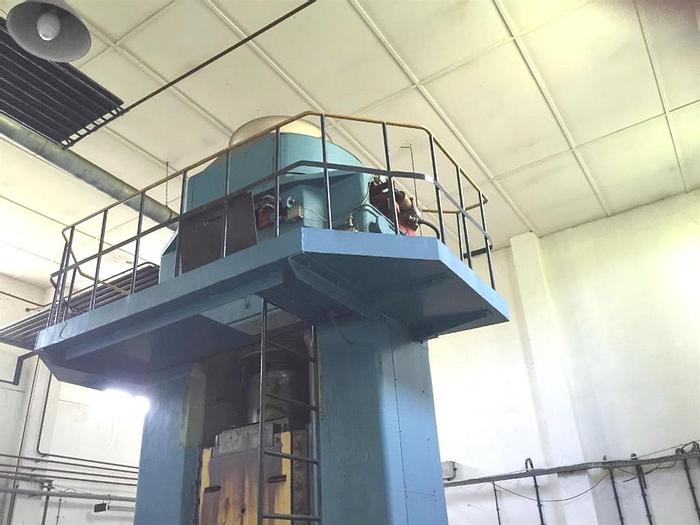

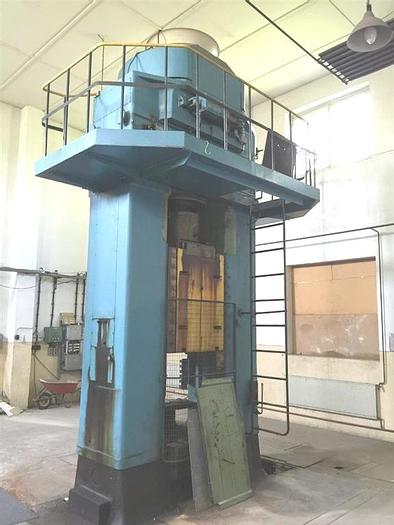

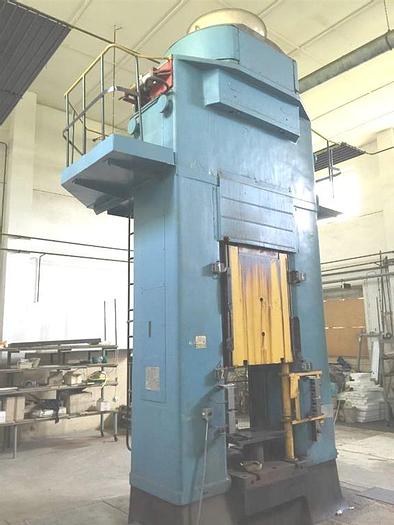

Press Friction Screw F1738

Capacity : 630 tons,

Kinetic energy of moving parts at the end of max ram stroke : 50 kj,

Max ram stroke : 520 mm,

Stroke per mintues : 25 SPM,

Side clearance : 800 mm,

Ram dimensions front to back : 800 mm,

Bed dimensions : 900 x 1000 mm,

Main drive motor power : 45 kW,

Overall dimensions : 5200 x 2180 x 6155 mm,

Mass : 45 tons.
