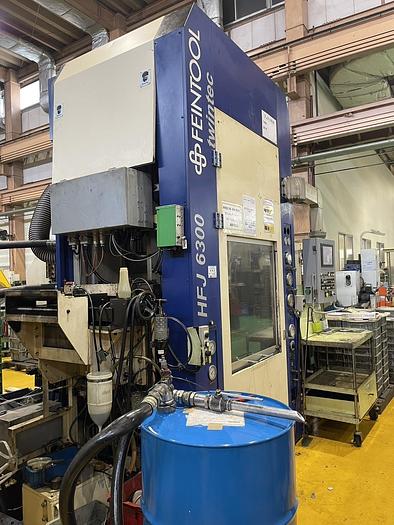

630 tons Press Fineblanking Mechanical Neagari HFJ6300 TWINTEC

Capacity : 630 tons,

Shut height : 320 ~420 mm,

Max. tool dimension (1x w) : 800 x 8000 mm,

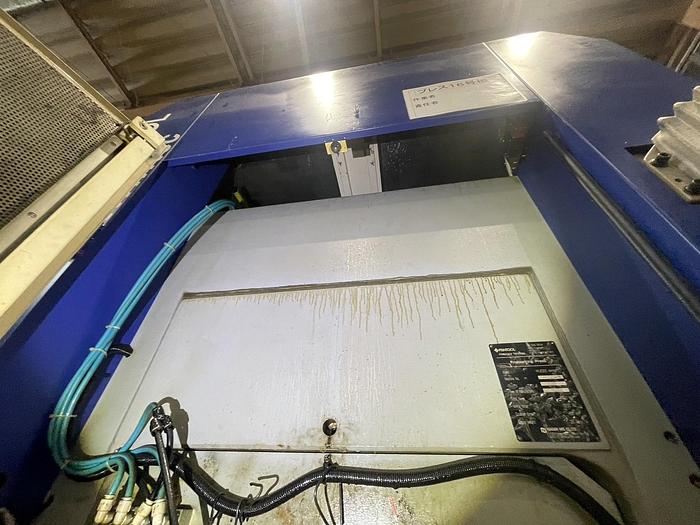

Clamping surface of the tools (top) : 850 x 950 mm,

Clamping surface of the tools (bottom) : 650 x 650 mm,

Press window (front ) : 880 mm,

Press window (side) : 470 mm,

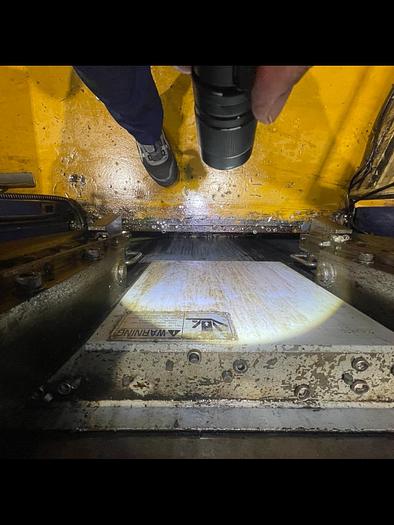

Max. distance between top and bottom die tables : 705 mm,

Max. distance between upper and lower clamping plates : 505 mm,

Tool clamping force (single side) : 500 kN,

Total power used : 136 kW,

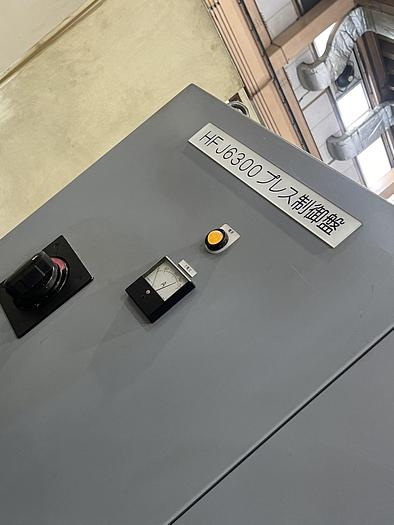

Control voltage : DC24V,

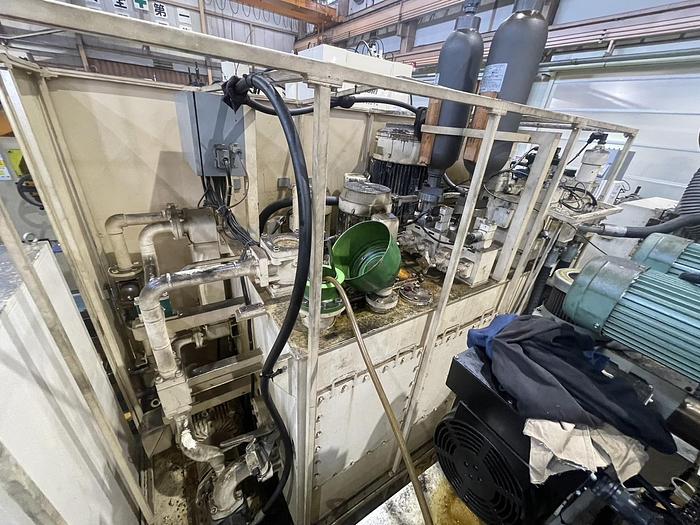

Hydraulic System

Tank capacity : 1000 (850 kg),

Hydraulic oil viscosity : ISO VG46,

Cooling capacity : about 60 kW,

Water -cooled oil cooler : Cooling water required : 150 or more 1/min,

Cooling water pressure : 0.2~0.3 MPa.

Pressure :

Total force : 6300 kN,

Maximum V-ring pressure : 3200 kN,

Maximum counter support pressure : 1600 kN,

Peeling force : 800 kN,

Ejection force : 400 kN,

Stroke :

Ram : 30~225 mm,

V-ring(maximum) : 40 mm,

Counter support (max) : 40 mm,

Speed :

Cutting speed : 11 ~41 mm/s,

High speed ram lift speed : 200 mm/s,

Fast ram lowering speed : 200 mm/s,

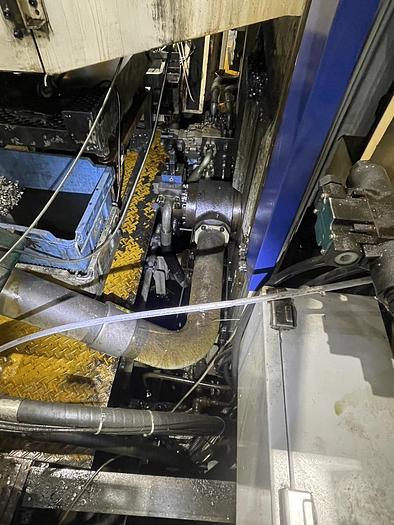

Material handling :

Feeder feed length (max) : 999.9 mm,

Feeder feed accuracy : 0.1 mm,

Sheet length (max) : 3500 mm,

Material width : 40~450 mm,

Material thickness : 2~16 mm.

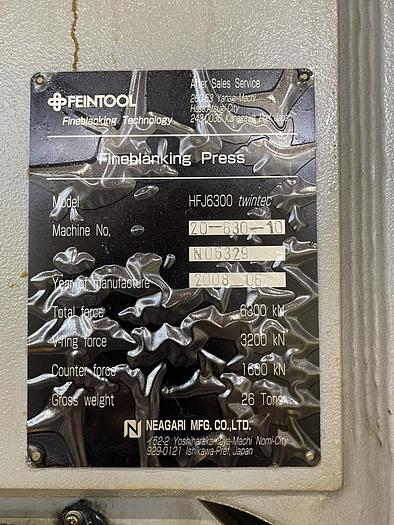

V-Ring Force    3200KN

Counter Force  1600KN

Gross Weight   26 Ton

Technical manuals available.
