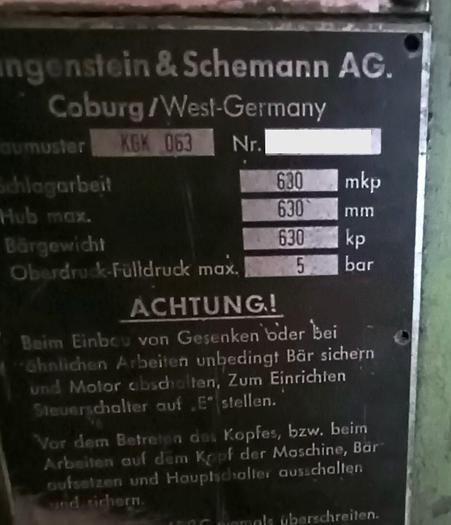

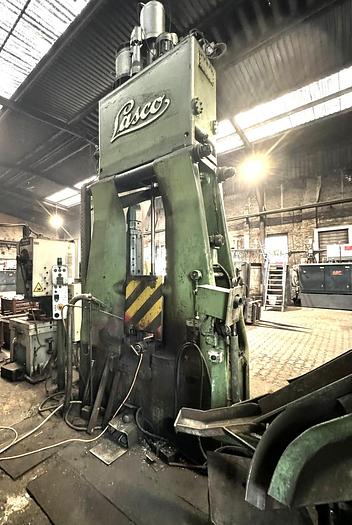

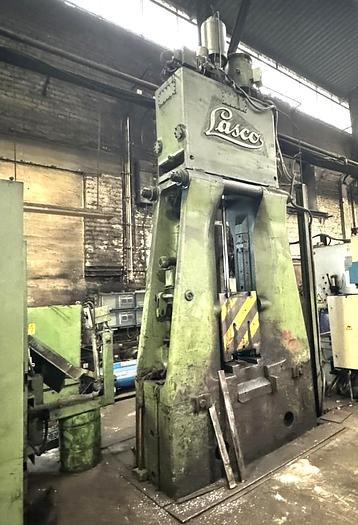

0.63 ton Hammer Forging Hydraulic Lasco KH063

Capacity : 0.63 ton,

Ram weight: 630 kg,

Max. height of both dies without dovetails : 360 mm,

Upper die weight max. : 100 kg,

Bear weight : 630 kg,

Bear depth : 400 mm,

Clear width between the guides : 420 mm,

Engine performance : 20 KW,

Weight of the shabot : 900 kg,

Total weight of the hammer : 21.5 tons,

Total height of the hammer : 5245 mm,

Height above the hallway : 4975 mm,

Amount of oil in the head tank : 200 ltr,

Piston rod length : ⌀50 x 2303 mm,

Rubber buffer in the bear lock : 3 x ⌀220/85 x 120 mm,

Operating voltage : 380 Volt-DC,

Control voltage : 220 Was,

Circuit diagram no. KH-76-70-3-0,

Slowly UP : 238 m/min,

Filling pressure (upper pressure) : 6 bar,

Cylinder diameter : light Width 100 mm,

Valve voltage : 24 Volt DC.

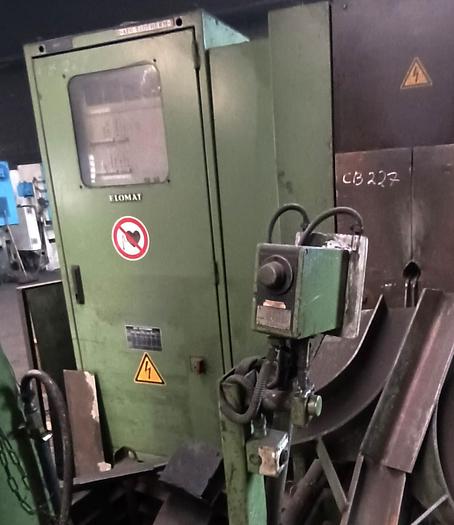

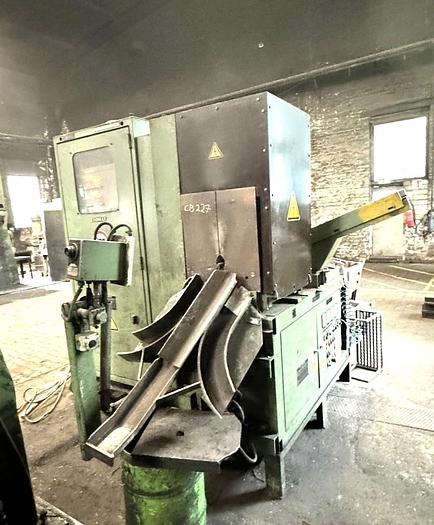

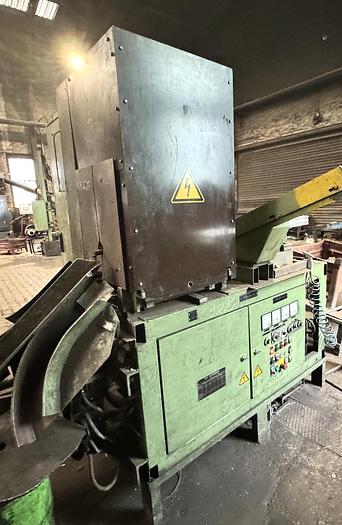

With İnduction heater

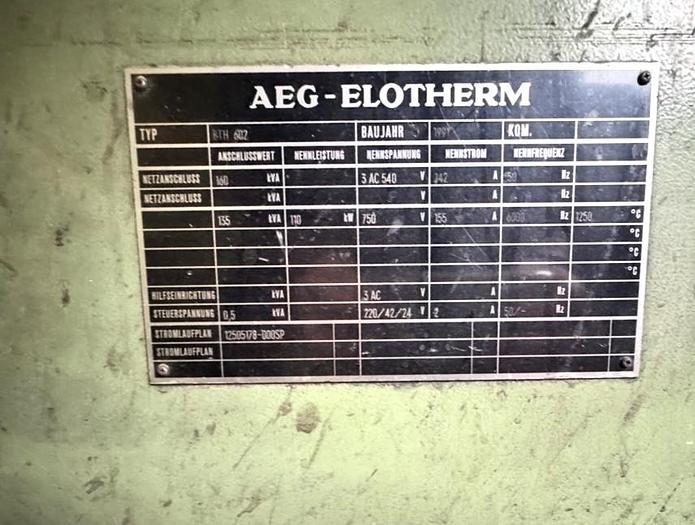

AEG - Elotherm

Capacity : 110 Kw,

Frequency : 6000 kHz ,
