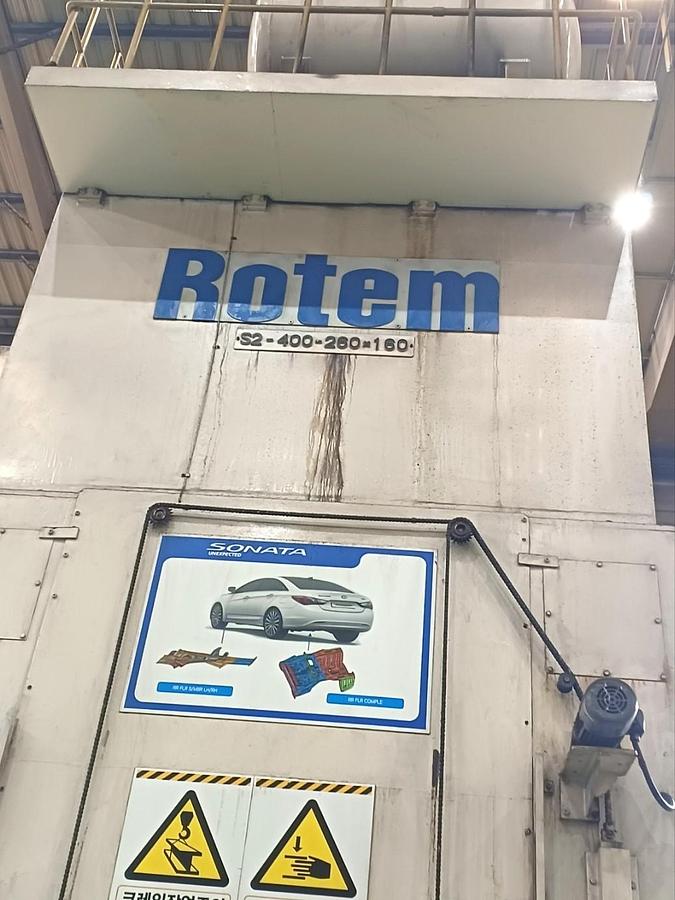

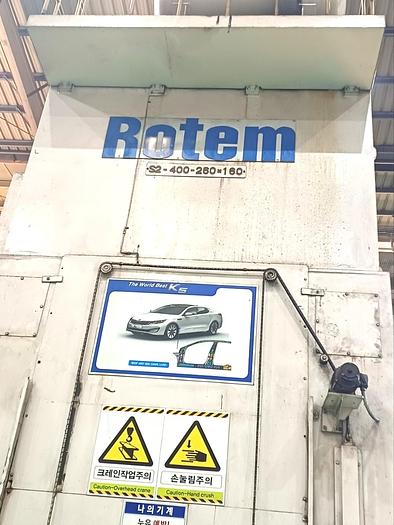

800-600-400-400 Sheet Stamping Line Mechanical Rotem
Specifications
| Manufacturer | Rotem |
| Model | DE2P-800 |
| Year | 1997 |
| Condition | New |
| Stock Number | MA2891 |
| Item condition | Good working condition |
| Capacity tons | 800 |
Description

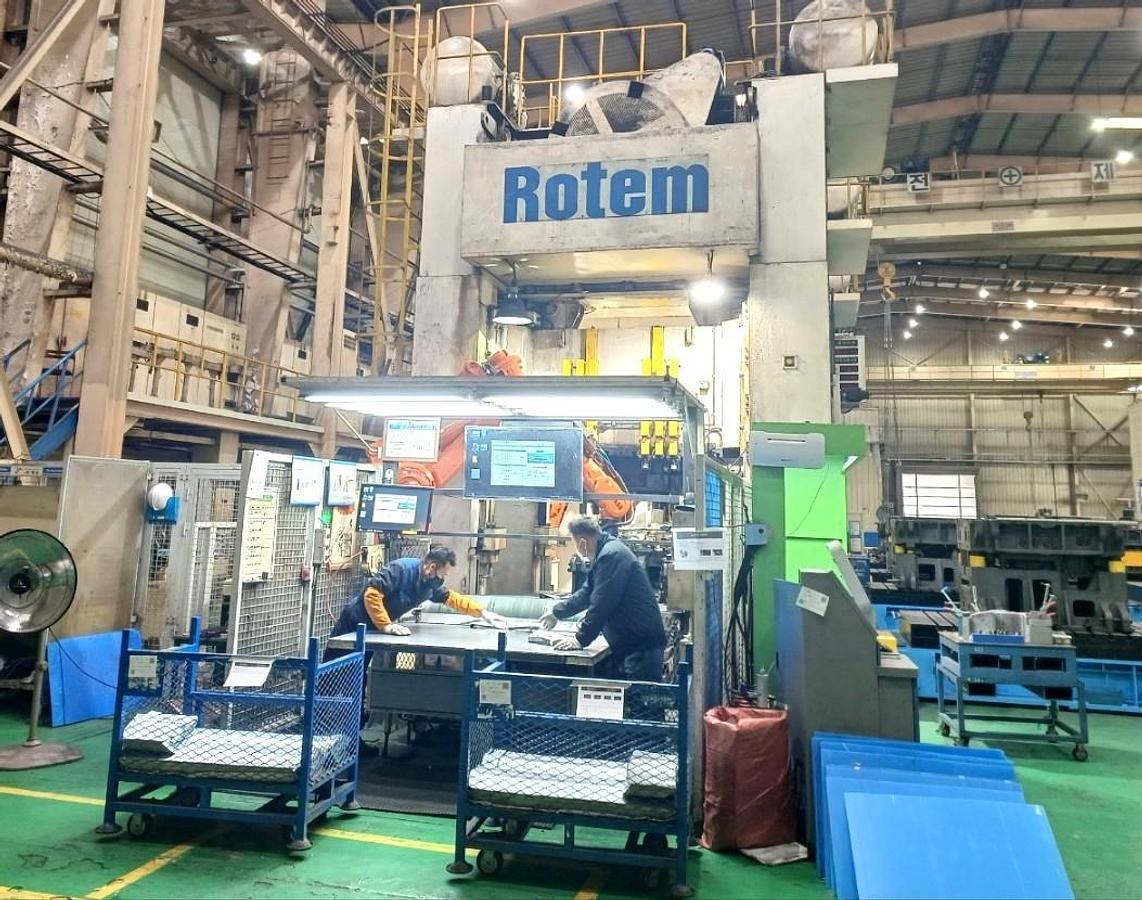

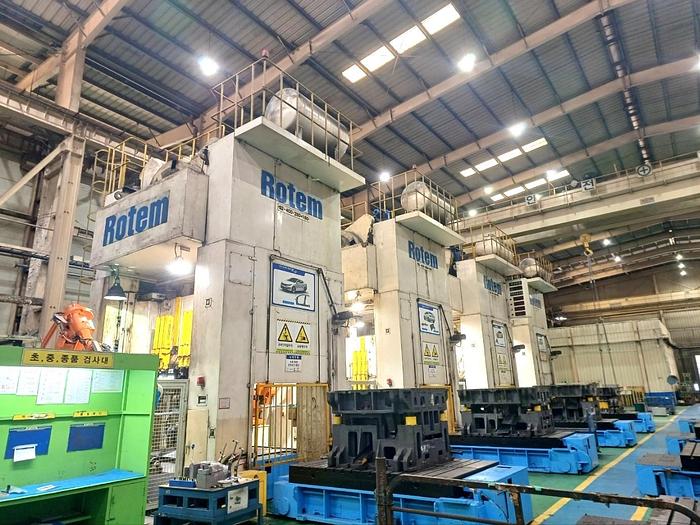

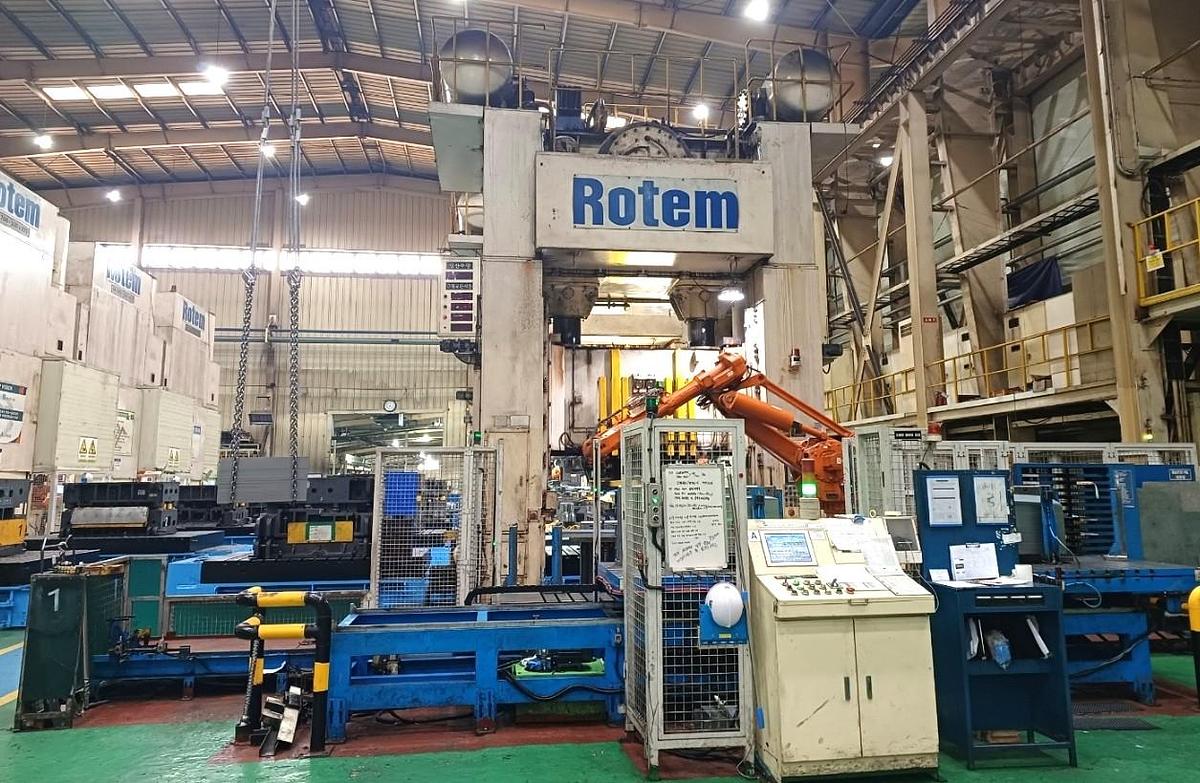

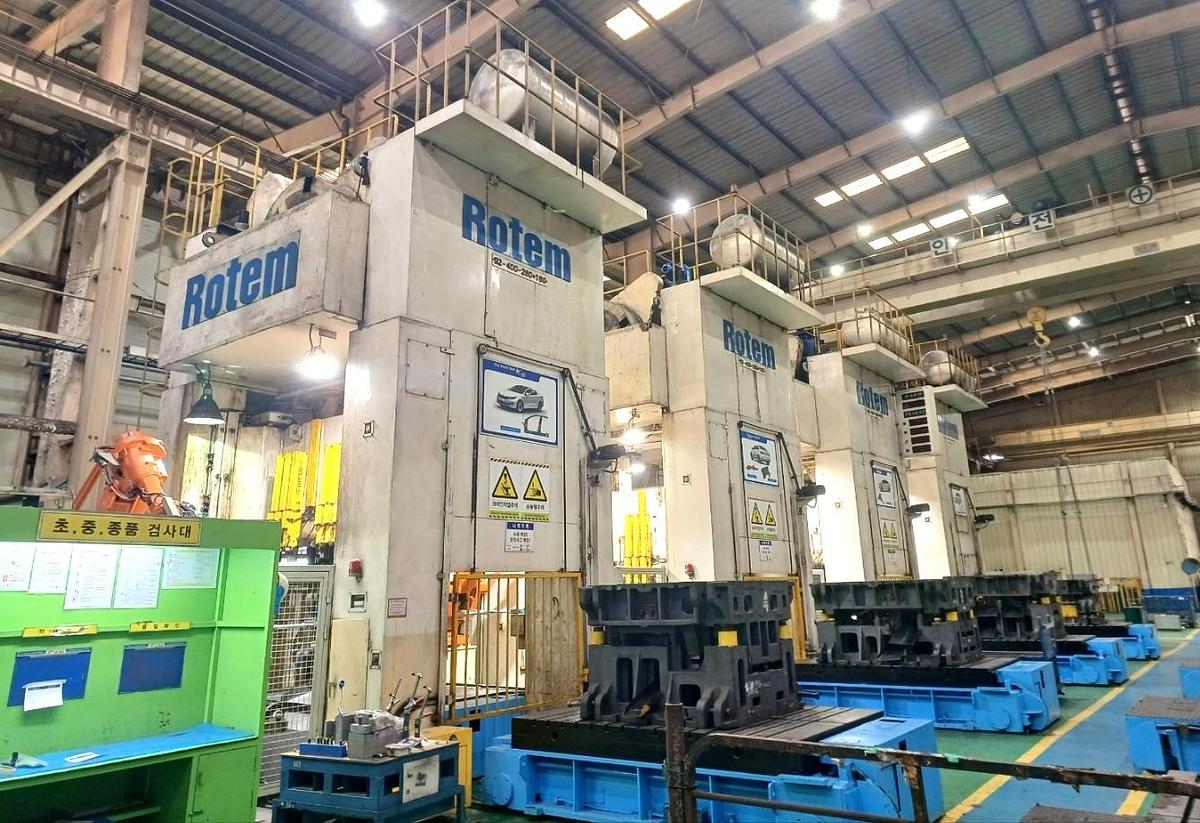

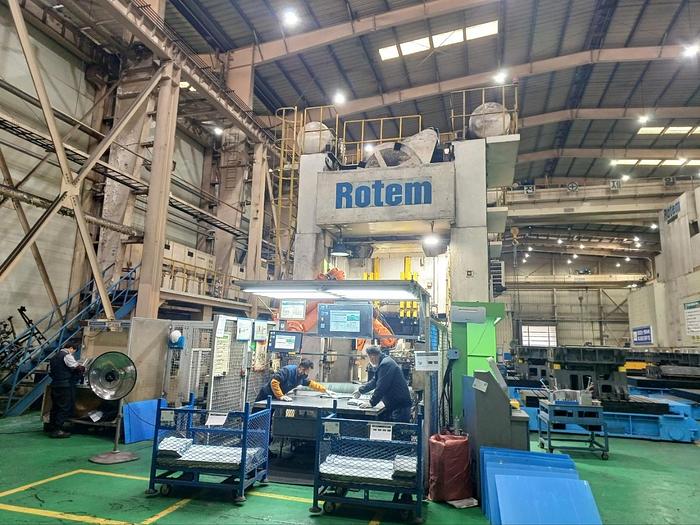

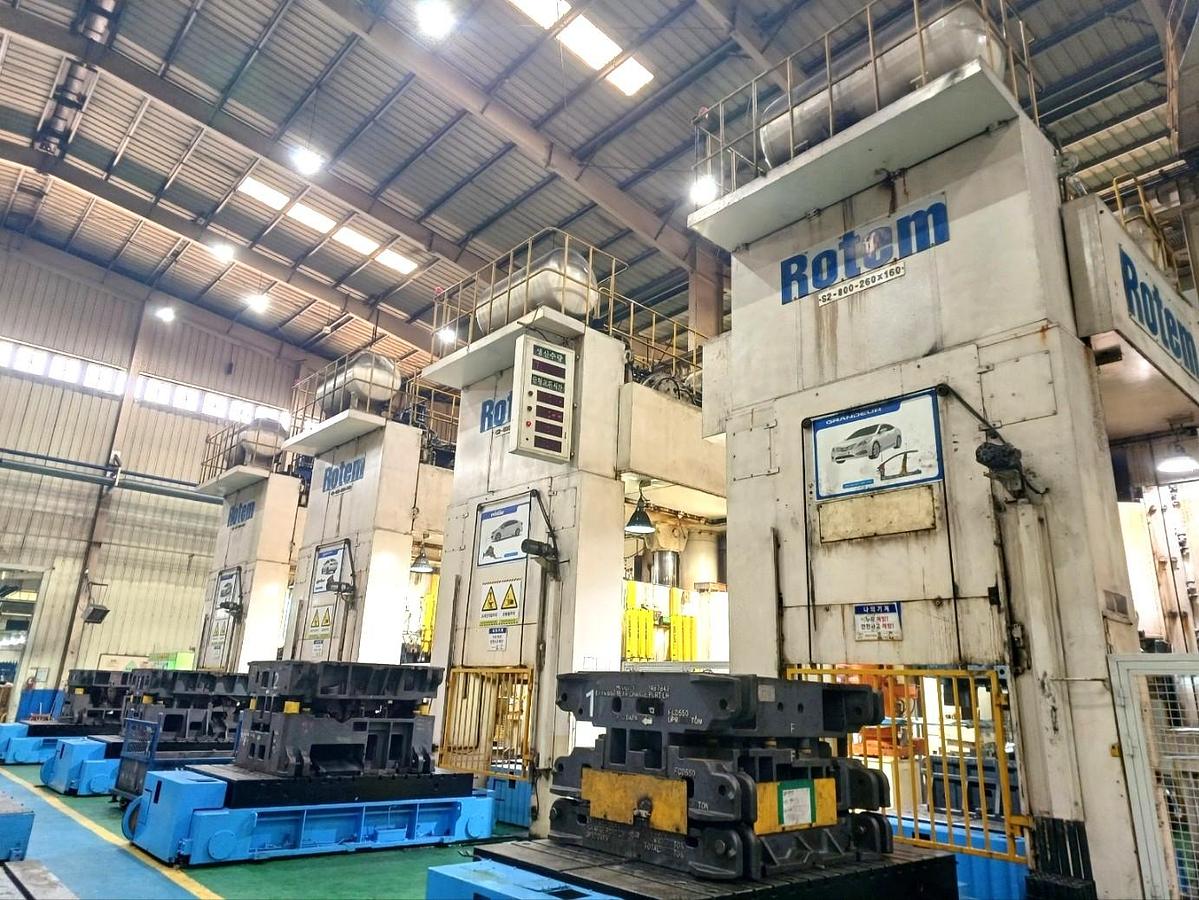

ROTEM Tandem Line
1) Capacity : 800 tons,
Stroke : 600 mm,
Stroke per minutes : 8~20,
Die height (max / min): 1100 / 650 mm
Standard die height : 1000 mm,
Slide adjust : 450 mm,
Air : 5 Kg/vm2,
Above bolster (Mold) : 190 mm,
Cushion stroke : 220 mm,
Cushion capacity : 150 mm,
Mold Moving :
Bolster size (LR x FB) : 2500 x 1600 mm,
Slide size (LR x FB) : 2500 x 1600 mm.
Technical manuals available.
2)Capacity : 600 tons,
Stroke : 600 mm,
Stroke per minutes : 20,
Die height (max / min): 1100 / 650 mm
Standard die height : 1000 mm,
Slide adjust : 450 mm,
Air : 5 Kg/vm2,
Above bolster (Mold) : 190 mm,
Cushion stroke : 220 mm,
Cushion capacity : 100 mm,
Mold Moving :
Bolster size (LR x FB) : 2500 x 1600 mm,
Slide size (LR x FB) : 2500 x 1600 mm.
3)Capacity : 400 tons,
Stroke : 600 mm,
Stroke per minutes : 20,
Die height (max / min): 1100 / 650 mm
Standard die height : 1000 mm,
Slide adjust : 450 mm,
Air : 5 Kg/vm2,
Above bolster (Mold) : 190 mm,
Cushion stroke : 220 mm,
Cushion capacity : 80 mm,
Mold Moving :
Bolster size (LR x FB) : 2500 x 1600 mm,
Slide size (LR x FB) : 2500 x 1600 mm.
4)Capacity : 400 tons,
Stroke : 600 mm,
Stroke per minutes : 20,
Die height (max / min): 1100 / 650 mm
Standard die height : 1000 mm,
Slide adjust : 450 mm,
Air : 5 Kg/vm2,
Above bolster (Mold) : 190 mm,
Cushion stroke : 220 mm,
Cushion capacity : 80 mm,
Mold Moving :
Bolster size (LR x FB) : 2500 x 1600 mm,
Slide size (LR x FB) : 2500 x 1600 mm.
With all existed accessories. including Bolster , Robert , Transfer system.
