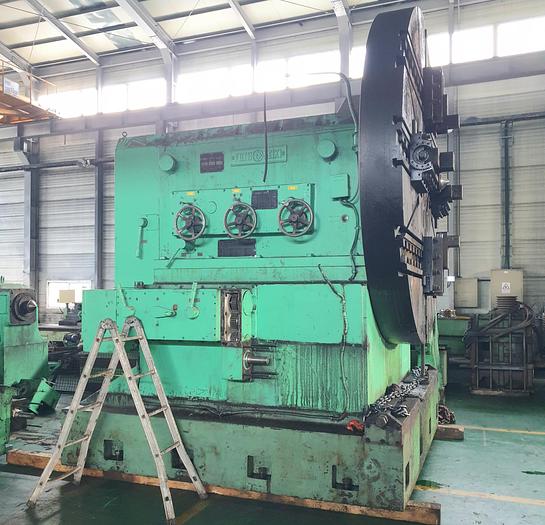

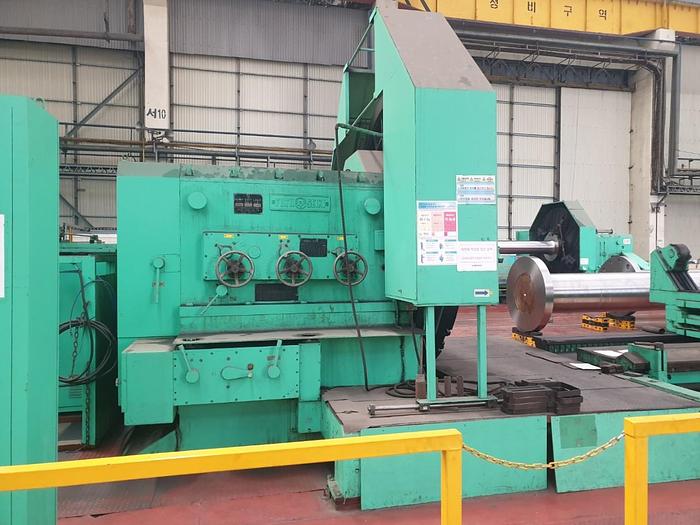

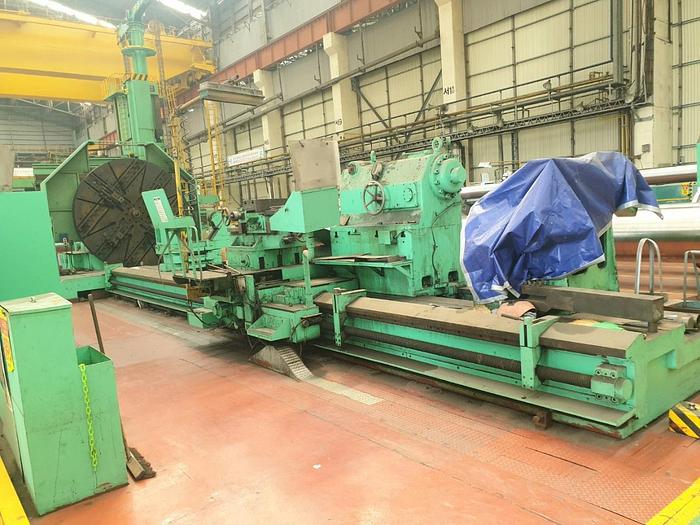

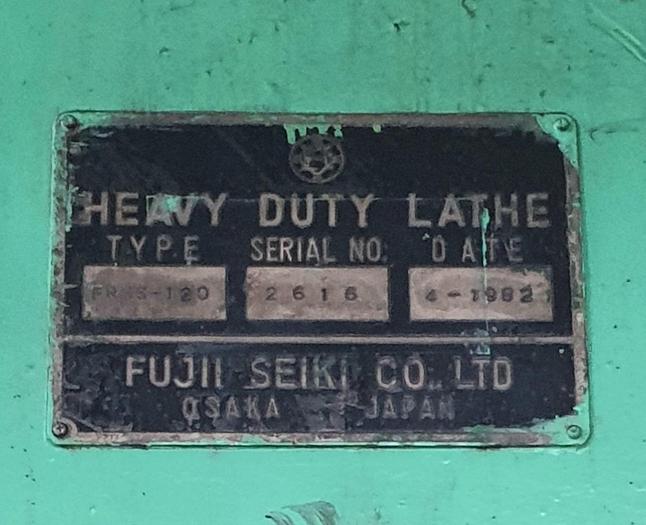

Lathe Heavy Duty Fujiseiki

Height of the center : 1300 mm,

Slewing over the carriage : 2000 mm,

Distance between centers : 12000 mm,

Max. supporting weight : 50000 kg,

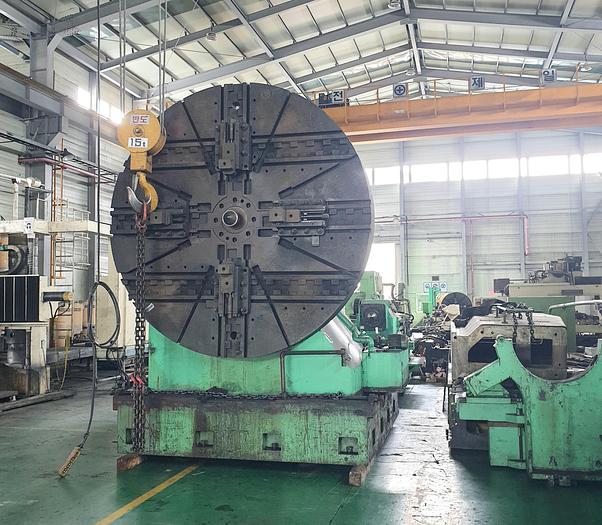

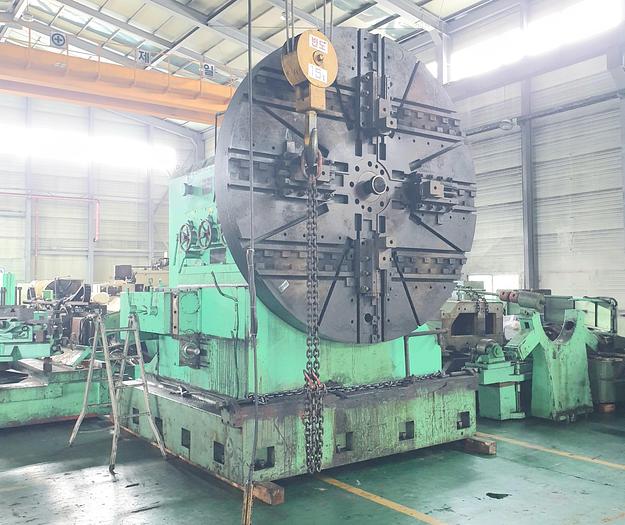

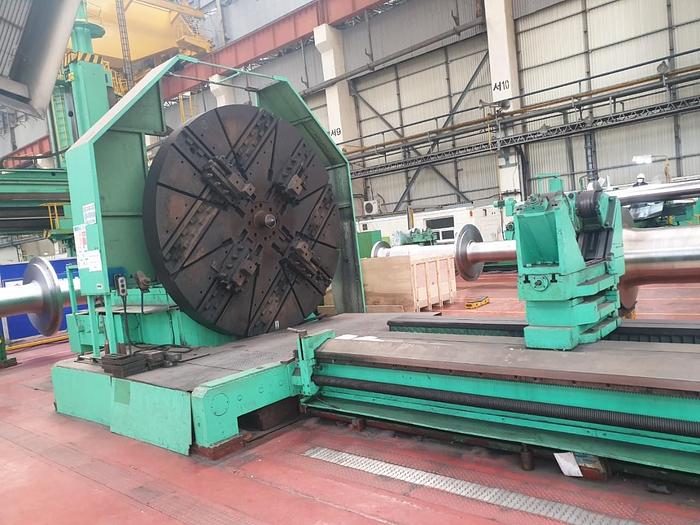

Dia. of the face plate : 3000 mm,

Dia. X stroke of the tailstock spindle : 390 x 250 mm,

Main spindle speed range 16 steps : 1.5-56 rpm,

Feed speed range :

Longitudinal feed stepless : 0.25~200 mm/min,

Cross feed stepless : 0.075~50 mm/min,

Tool post feed stepless: 0.075 ~50 mm/min,

Threead cutting :

Metric thread : 2~128 mm,

Whitworth thread : 12~3/16 T/in,

Dia. X pitch of the leed screw : 90 x 12 x 2 mm,

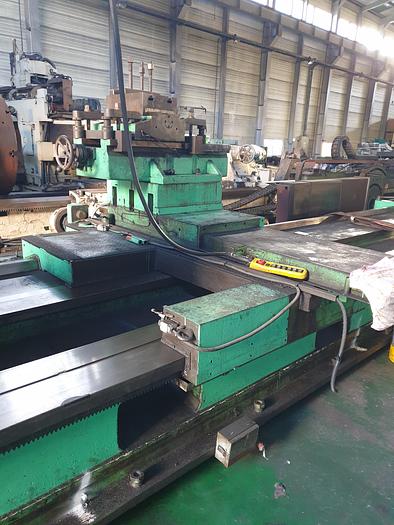

Rapid feed speed of the carriage : 2000 mm/min,

Rapid Feed speed of the cross slide : 600 mm/min,

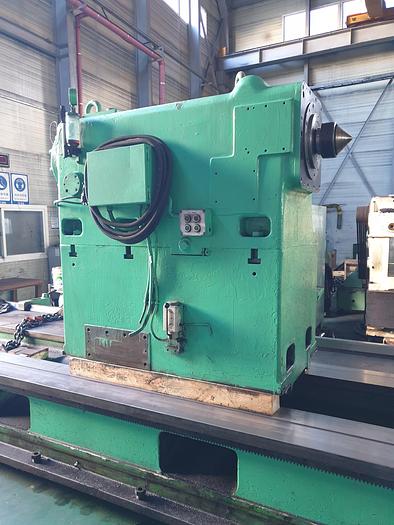

Rapid Feed speed of the tailstock : 2000 mm/min,

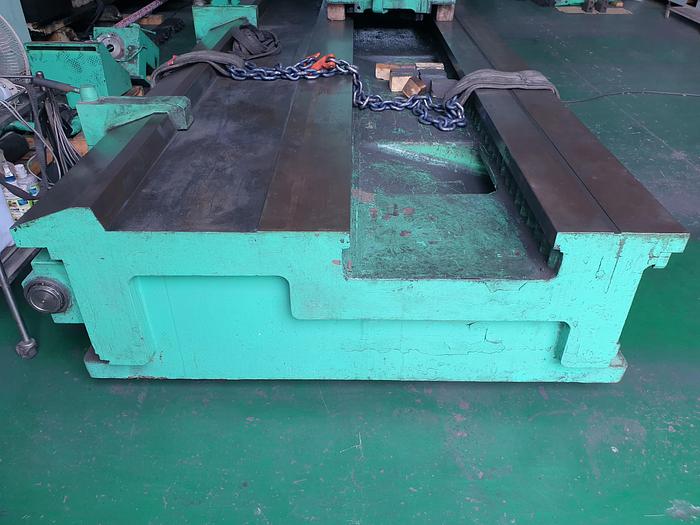

Width of the bed : 1800 mm,

Height of the bed : 600 mm,

Length of the bed : 12000 mm,

Main motor : AC.4/8P 75 KW,

Feed motor of the carriage : DC. 2.2KW,

Rapid feed motor of the carriage : AC.4P 3.7KW,

Rapid feed motor of the tailstock : AC.4P 3.7KW,

Floor space approx. : 5450~17100 mm,

Net weight approx. : 75 tons.

Technical manuals available.
