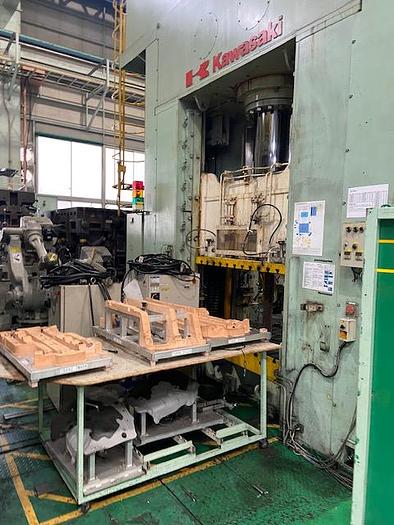

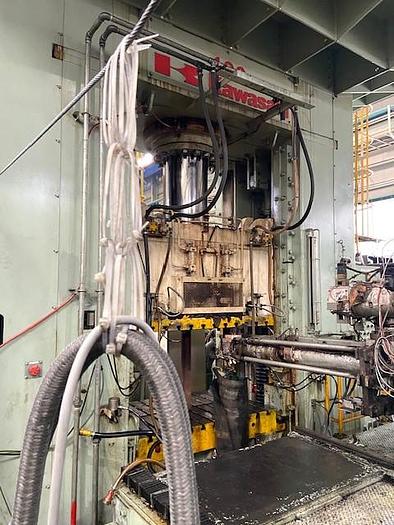

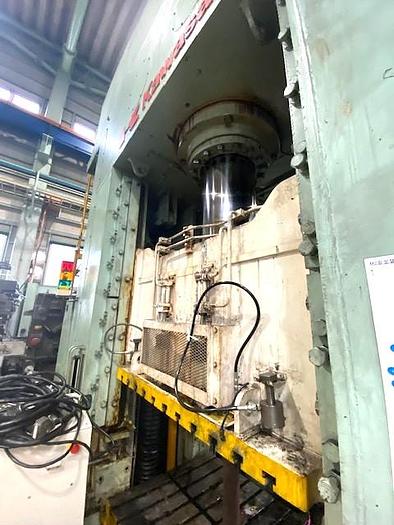

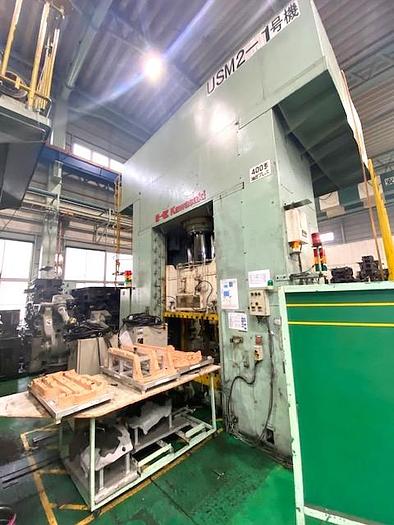

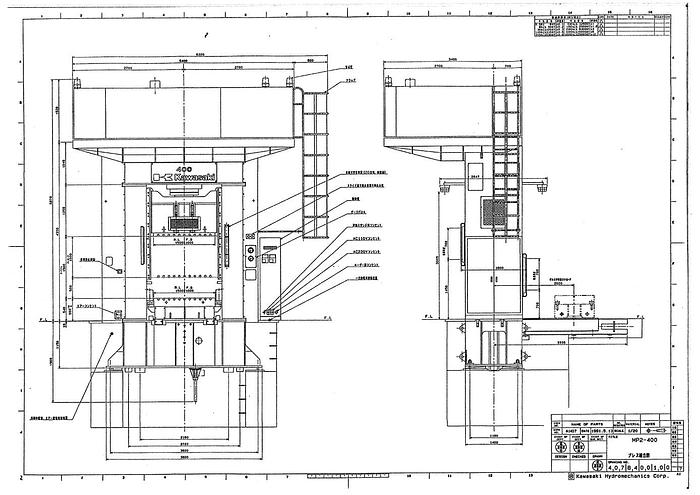

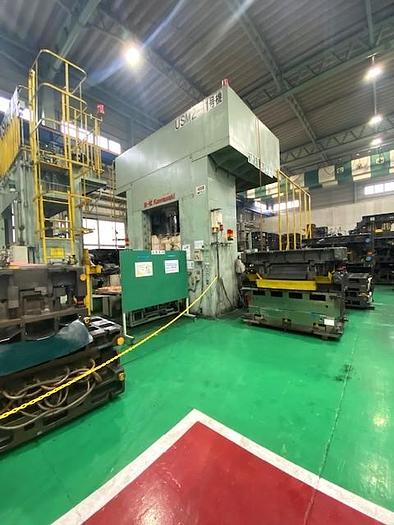

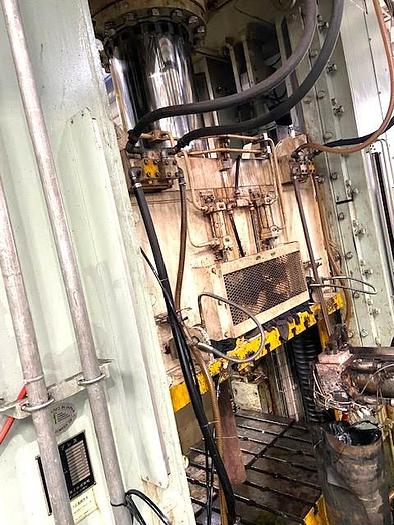

400 tons Press Sheet Stamping Hydraulic Kawasaki

Capacity : 400 tons,

Stroke : 1000 mm,

Daylight : 1500 mm,

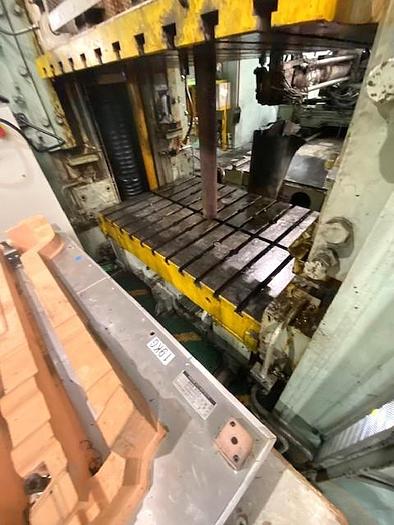

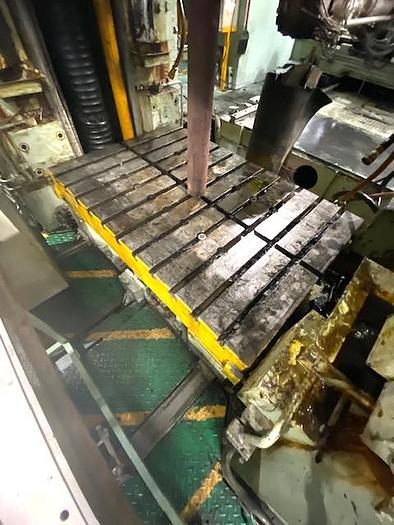

Bolster : 1500 x 1000 mm,

Slide: 1500 x 1000 mm,

Downward speed : 300 mm/sec,

Operating speed : 33 - 3 mm/sec,

Raising Speed : 300 mm/sec,

Upper Knockout : 1 ton,

Knockout stroke : 50 mm,

Knockout Speed : 50 mm/sec,

Raising Speed : 73 mm/sec,

Top Knockout :10 tons ,

Knockout stroke : 165 mm,

Knockout Speed : 100 mm/sec,

Raising Speed : 100 mm/sec,

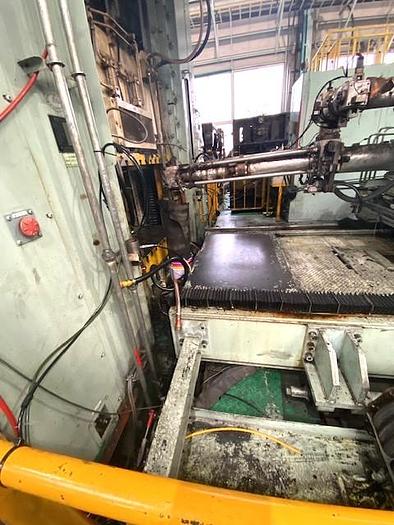

Moving Bolster Travel : 2000 mm,

Moving Bolster Travel Speed : 150 mm/sec,
