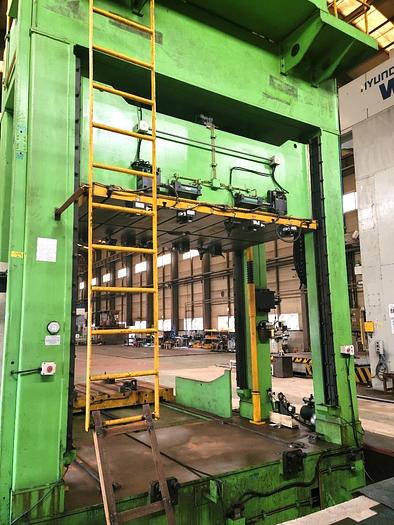

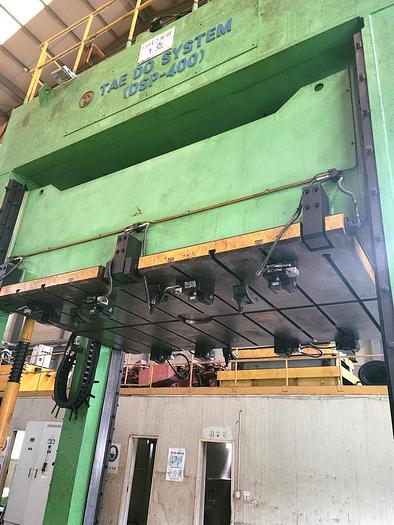

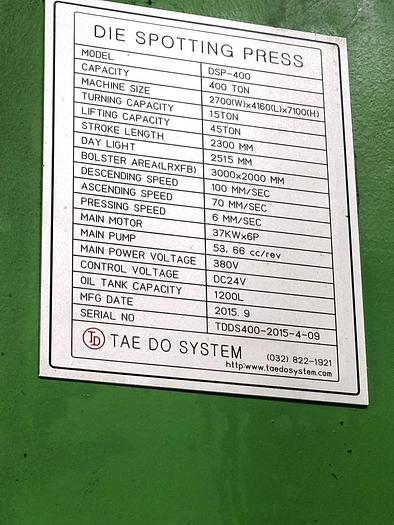

400 tons Press Die Spotting Hydraulic Taedo DSP-400

Capacity : 400 tons,

Stroke : 2300 mm,

Machine size (W x L x H): 2700 x 4160 x 7100 mm,

Turning capacity : 15 tons,

Lifting capacity : 45 tons,

Day light : 2515 mm,

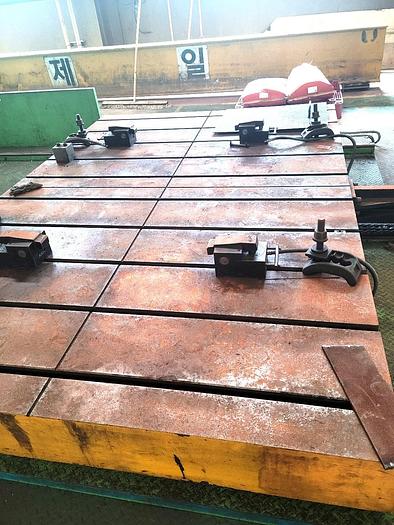

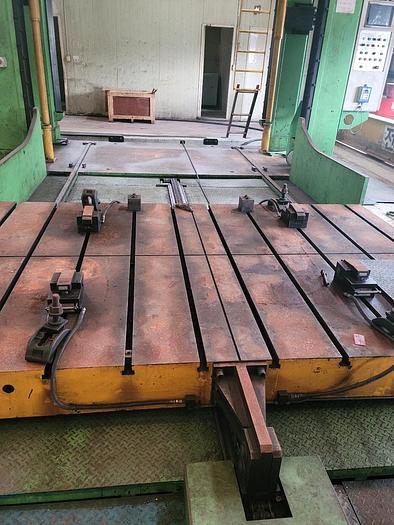

Bolster area (LR x FB) : 3000 x 2000 mm,

Descending speed : 100 mm/sec,

Ascending speed : 70 mm/sec,

Pressing speed : 6 mm/ sec,

Main motor : 37 KW x 6P,

Main pump : 53.66 cc/rev,

Main power voltage : 380 V,

Oil tank capacity : 1200 L.

Technical manuals available
