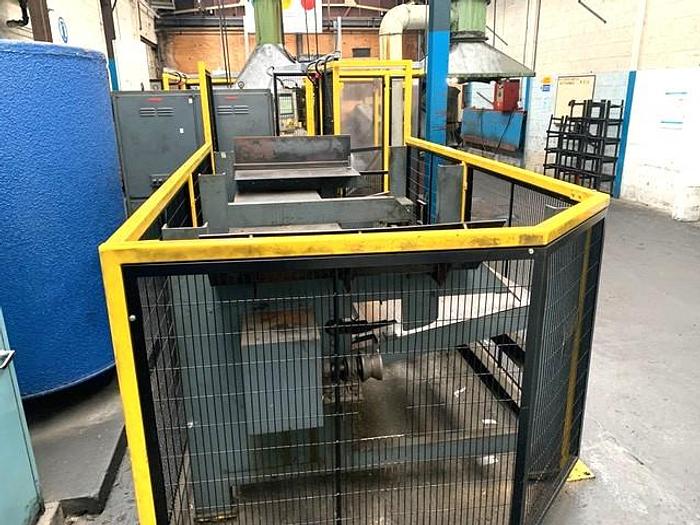

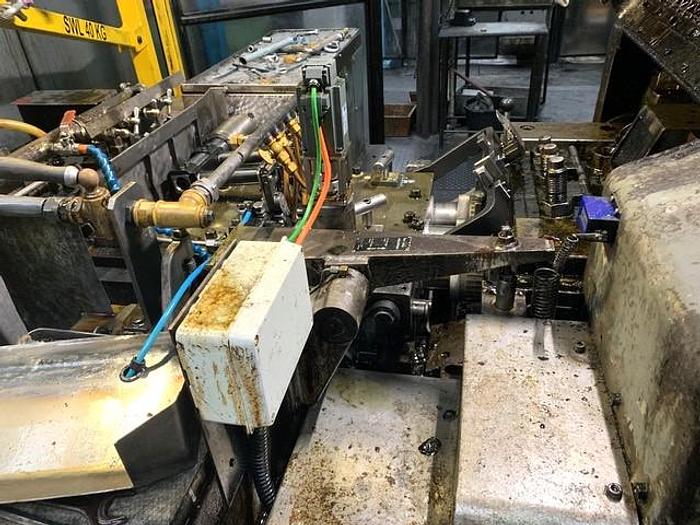

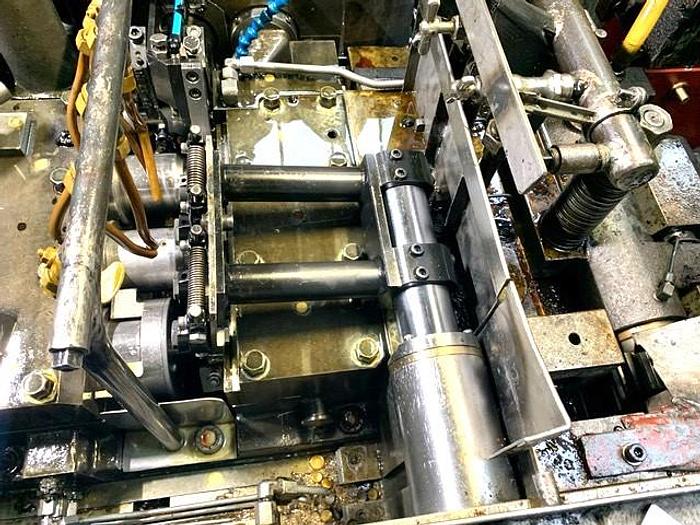

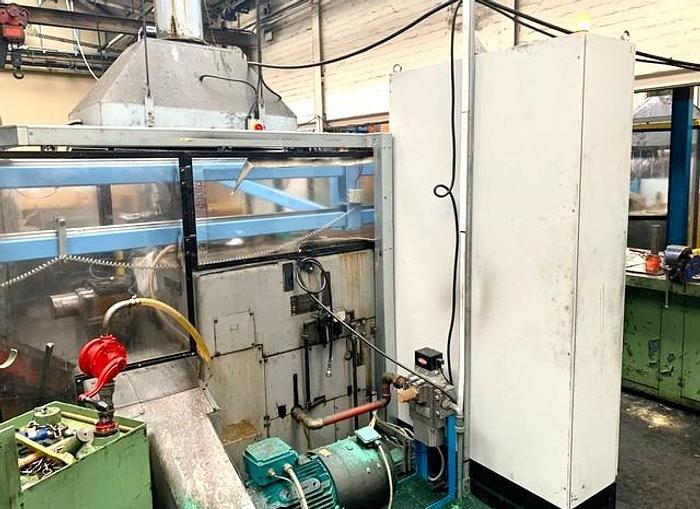

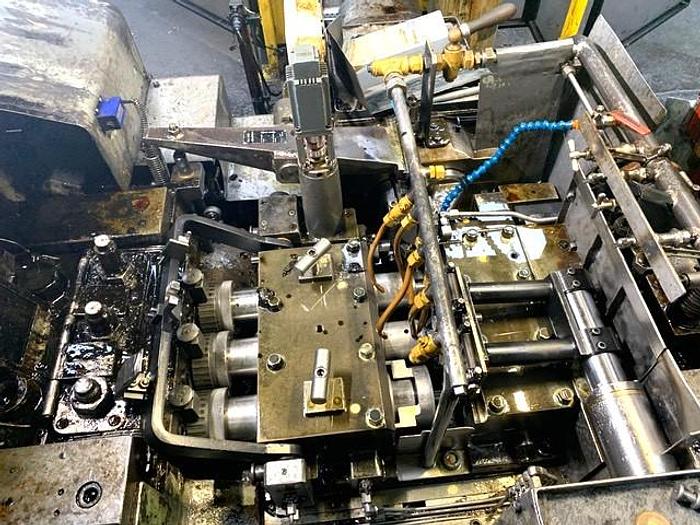

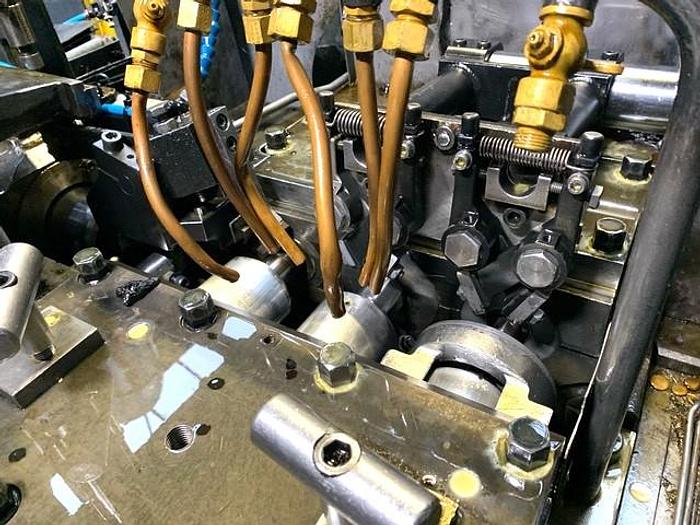

Part Former Hot Hatebur AMP20

Both AMP-20’s fully rebuilt by a Hatebur

Engineer in 2008

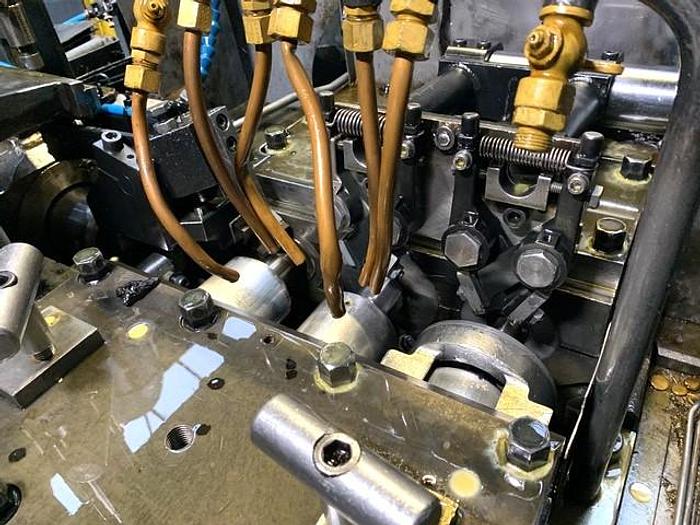

Number of forming dies : 3,

Production : 120-180 ppm,

Max. outer diameter for round parts : 38 mm,

Max. width across flats (hex) : 36 mm,

Bar diameter : 25 mm,

Cutoff Length : 15-40 mm,

Initial weight of forming’s : 20 – 150g,

Forging Tonnage : 800 kN,

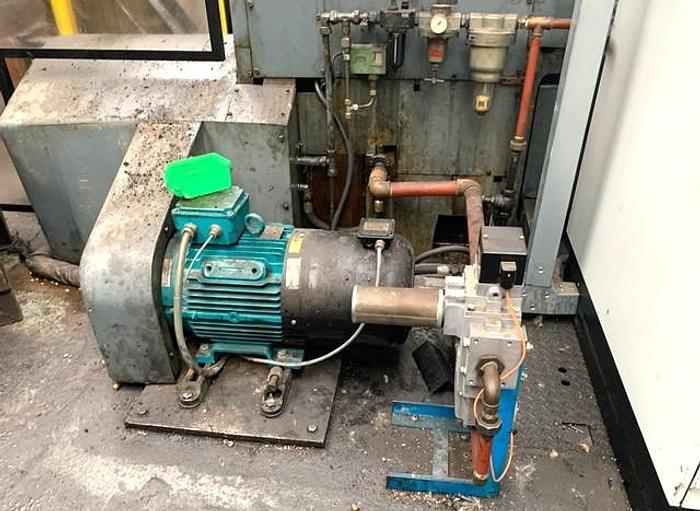

Drive motor rating :18.5 kw,

Center distance of dies : 110 mm,

Die diameters:

          1st and 3rd stations : 80 mm,

          2nd Station : 100 mm,

Main ram stroke : 110 mm,

Ejector Stroke : 55 mm,

Dimensions and weights:

Length : 3200 mm,

Width : 2600 mm,

Height : 1550 mm,

Weight (w/Motor) :11.0 tons,

Equipped with:

                  - Extensive number of drawings, manuals, etc.

                    - One piece steel casting bedframe

                    - Electro-pneumatically operated clutch and brake

                    - Automatic centralized lubrication system

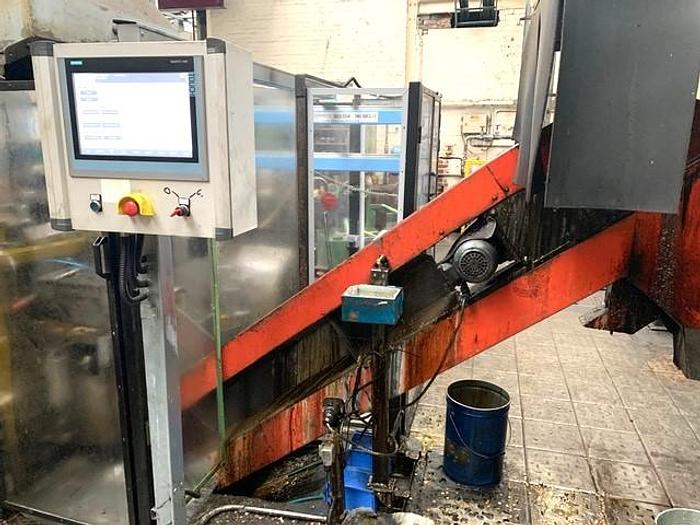

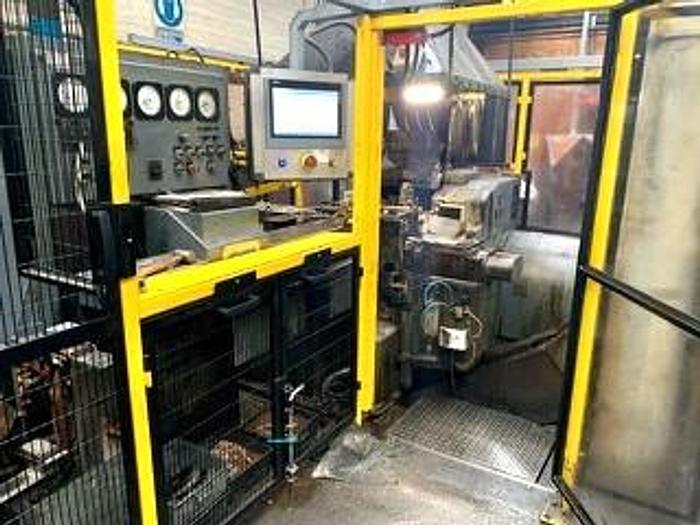

                    - New Siemens Simatic Controls and electrics installed 2019-20

                    - Overarm-type main slide - Protective Guarding

                    - Induction Heating Units   - Carter cooling tower

                    - Automated Bar Rack        - Split second safety stop

                    - Variable Speed Drive       - Protective Guarding

                    - Conveyors                      - Tooling lift

Quantity no : 2
