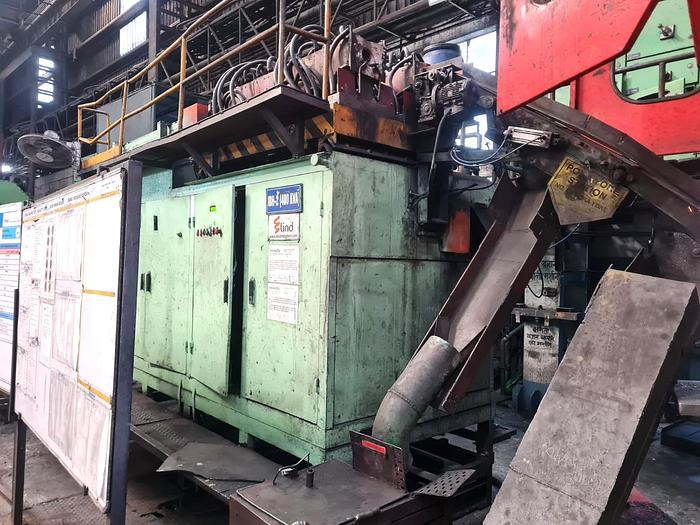

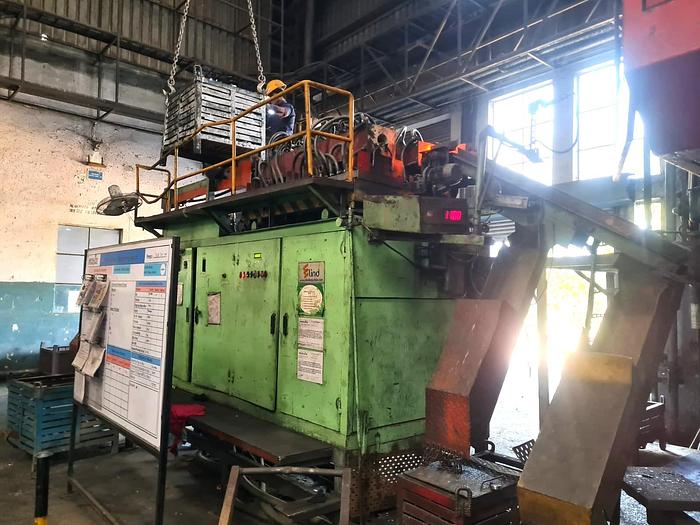

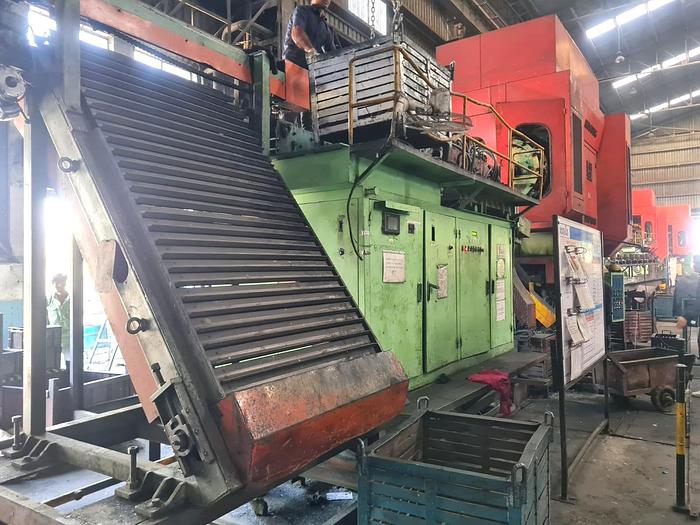

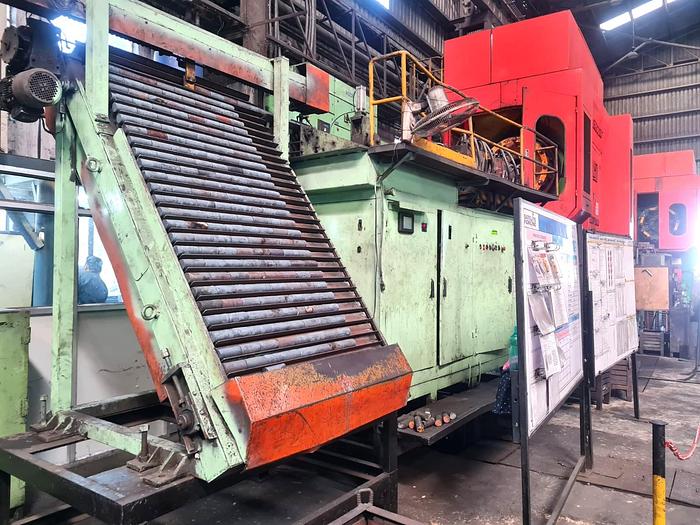

Induction Heater Elind EMFF-400K2

Induction Billet Heater IBH3 & IBH4,

Model : EMFF-400K2, Quantity 2,

MF power rating : 400 KW,

Operating Frequency : 2000 HZ,

MF rated voltage : 1100V,

Power Supply : 600KVA ,

3 Phase input voltage (50HZ) : 530V,

Input Current : 653 A,

Rated Power factor : 0.92,

Converter effeciency at rated load : 0.95,

Max. heating O/P at 1200 deg C : 1000kg/hr,

Specsfic power consumption : 360W/kg

Minimum cooling low rate : 113LPM

Three Phase input transformeer : 600KVA, 415v input/530v output,

Auto Loader : Quantity 2

Poka Yoke (aceept/reject) system : Quantity 2

DM water system : Quantity 2

IBH coil Dia. 56 mm : Quantity 5

Dia. 63mm : Quantity 2,
