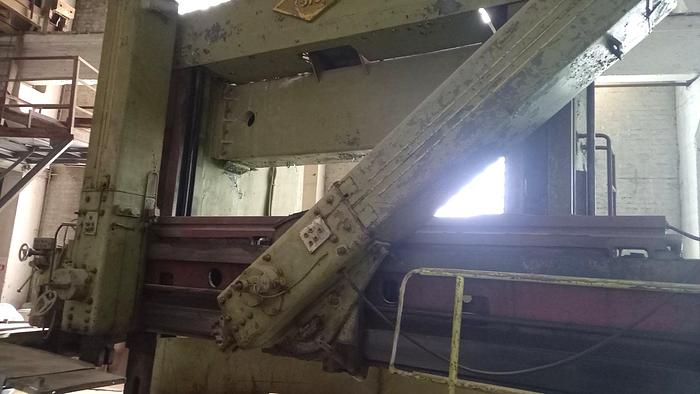

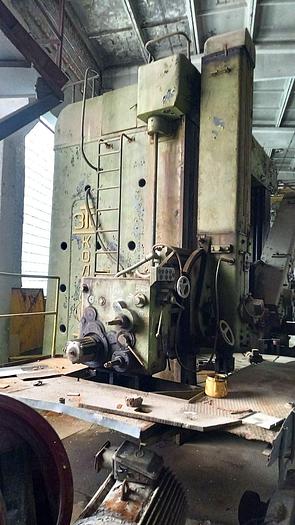

Lathe Vertical Turning Sedin 1532

Max. diameter of workpieces accommodated (with side tool head) : 3200 mm,

Max. diameter of workpieces accommodated (without side tool head) : 3400 mm,

Max. height of workpieces accommodated : 2000 mm,

Max. weight of workpieces accommodated : 20 tons,

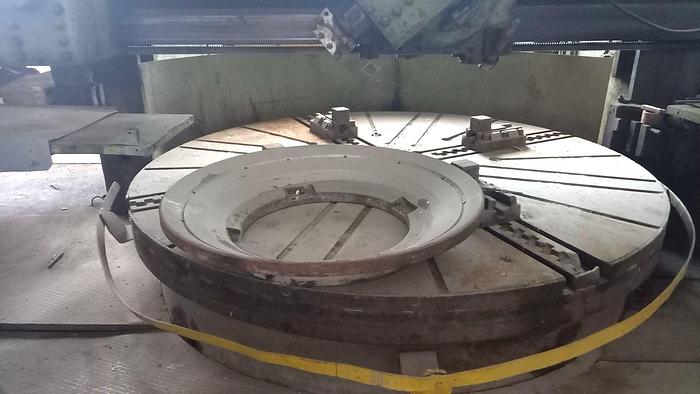

Face plate diameter : 3100 mm,

Maximum ram slide stroke :

Top right hand turning : 1500 mm,

Top left hand turning : 1500 mm,

Sid turning : 850 mm,

Maximum vertical stroke of side tool head : 1550 mm,

Maximum across stroke of vertical side tool heads : 2000 mm,

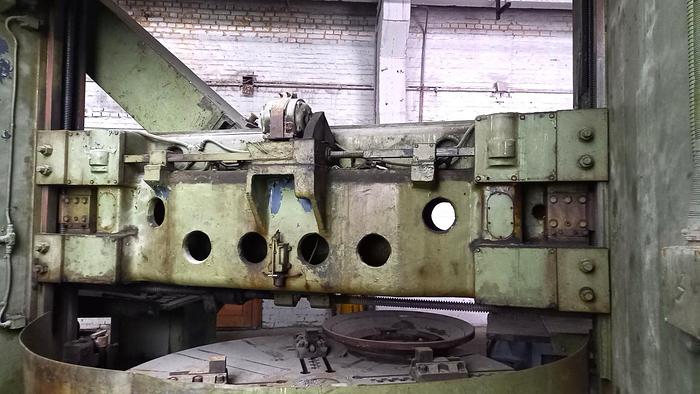

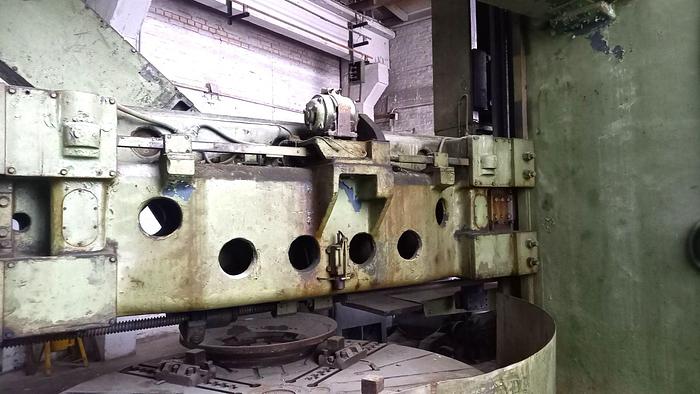

Maximum cross rail vertical stroke : 1550 mm,

Maximum speed of vertical moving of the cross rail : 415 mm/min,

Number of face plate main drive : 18,

Range of face plate speed : 0.6 - 31 rpm,

Speed of ram slide and tool head rapid travel : 2200 mm/min,

Power of primary motion electric motor : 55 kW,

Overall dimensions of the machine :

Length : 8950 mm,

Width : 4900 mm,

Height : 7000 mm,

Mass of the machine with electrical equipment : 70 tons.
