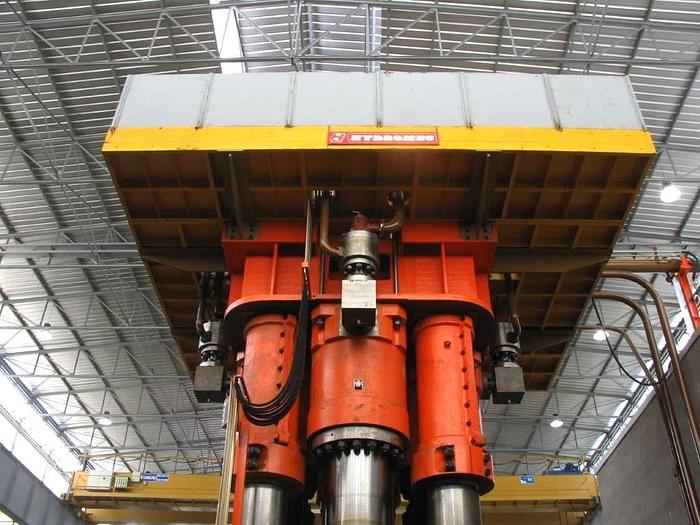

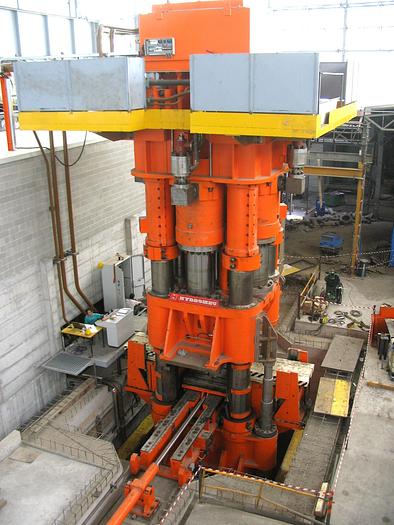

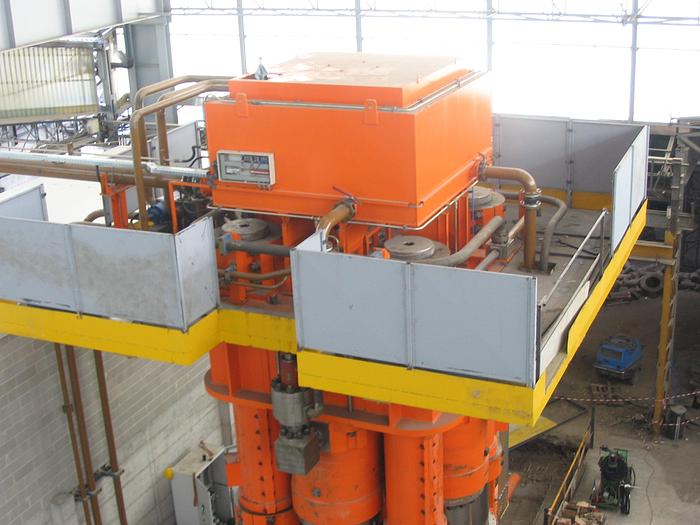

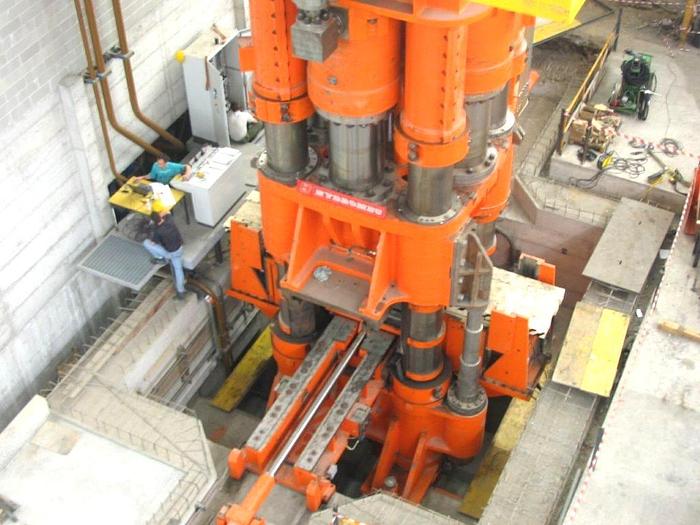

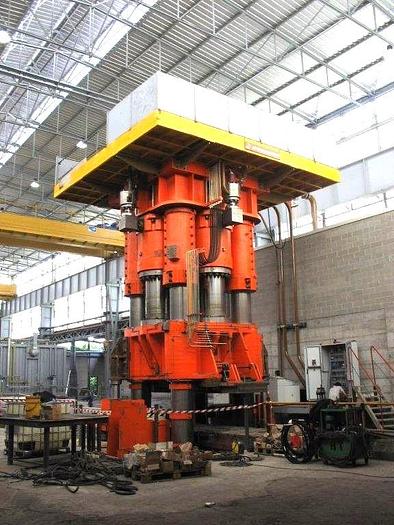

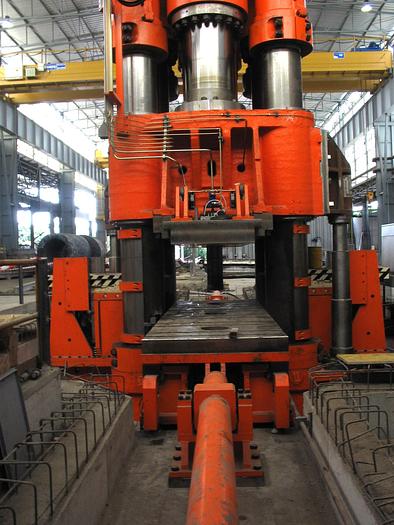

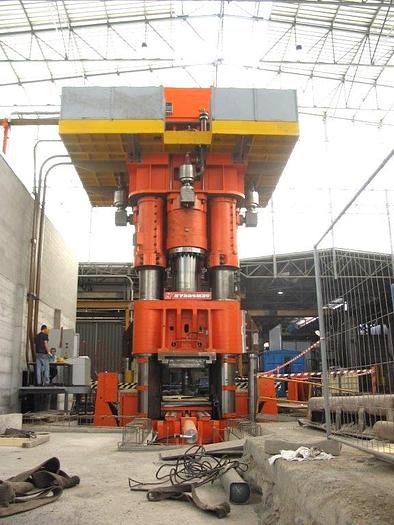

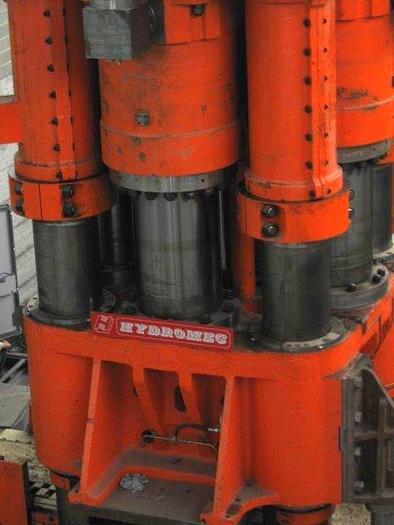

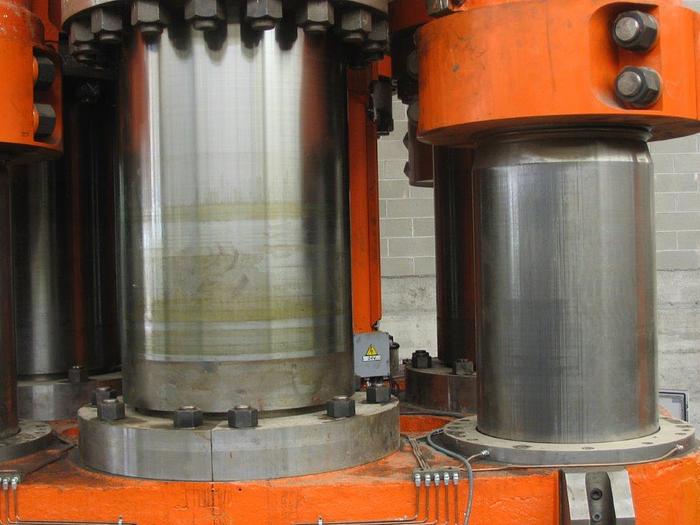

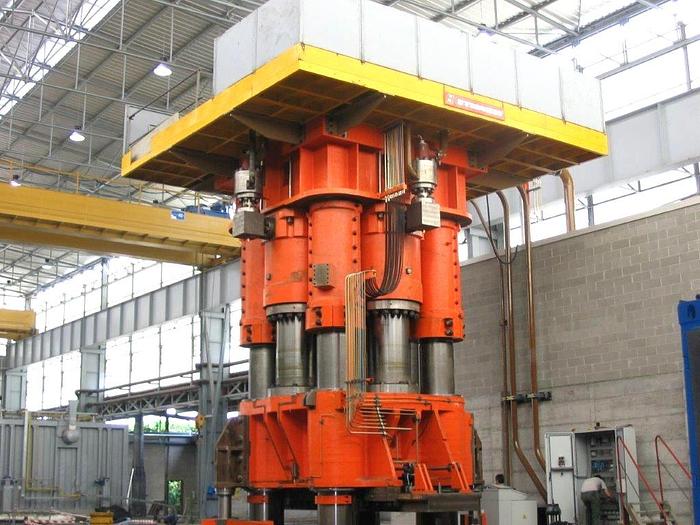

8500 tons Press Forging Open Die Hydraulic Hydromec HSF 8500-1650-500

Four Columns Hydraulic Press with Piercing,

Capacity : 8500 tons,

Slide vertical travel : 1100 mm,

Max distance slide to table : 2175 mm,

Horizontal stroke centerings : 850+850 mm,

Vertical stroke centerings : 700 mm,

Lifting force centerings: 150 kN,

Moulding station: 3,

Wheelbase station: 1700 mm,

Lower extractor force: 5000 kN,

Lower extractor working stroke: 890 mm,

Lower extractor total stroke: 1200 mm,

Piercing cylinder force: 7000 kN,

Piercing cylinder working stroke: 800 mm,

Piercing cylinder total stroke: 1125 mm,

Pumping engines central hydraulic power (12 x 132 kW): 1056 kW,

Total central hydraulic power: 1186 kW,

Moving table size : 5000 x 1650 mm ,

Slide size : Ø 1200 mm

Slide cross travel : 1900 mm,

Passage between columns : 1780 mm,

Moving table travel : +/- 3.400mm.

Motor pumps power : n. 8 x 132 KW. 1.056 KW,

Approching feeds : 200 mm/Sec,

Presswork feeds : 15 ÷ 25 mm/Sec. ,

Return feeds : 280 mm/Sec. ,

Travel of cylinder inside the slide : 1.125 mm.,

Lower cushion travel : 1200 mm,

External lower cushion travel : 1200 mm

Total weight : 600 tons.
