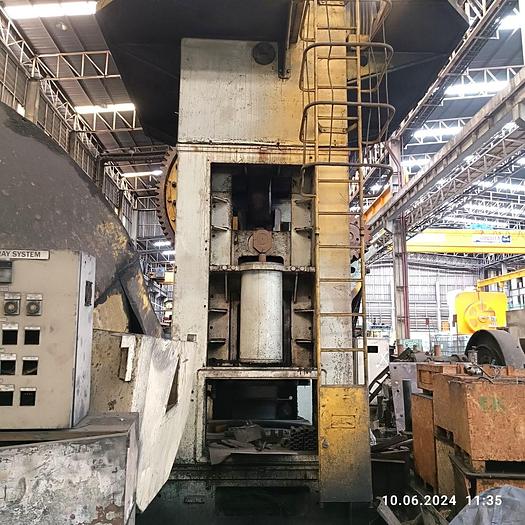

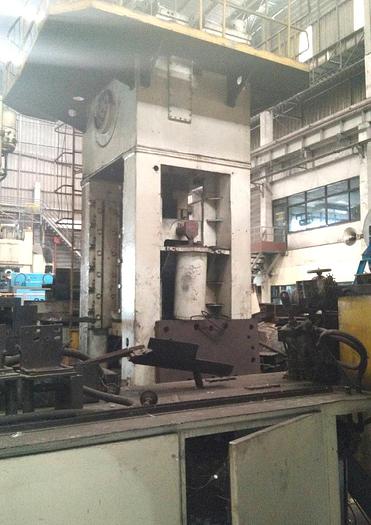

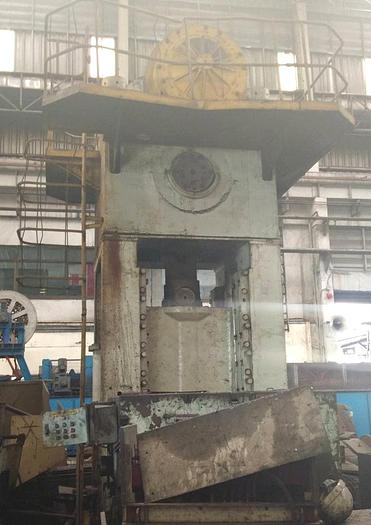

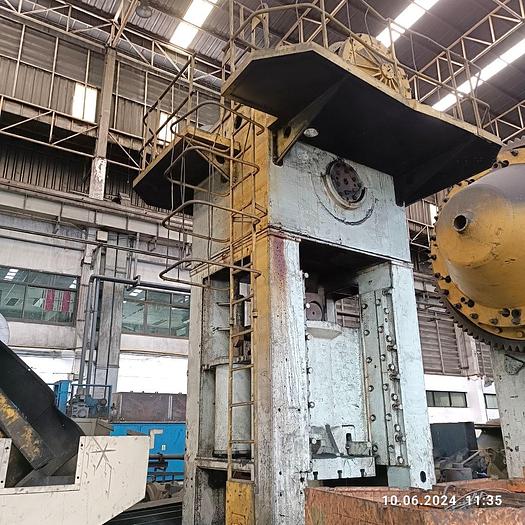

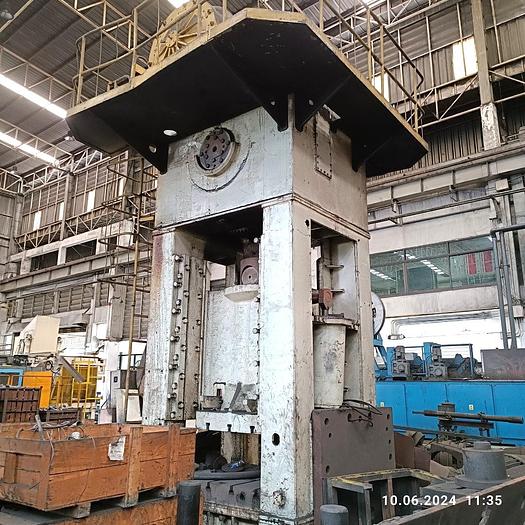

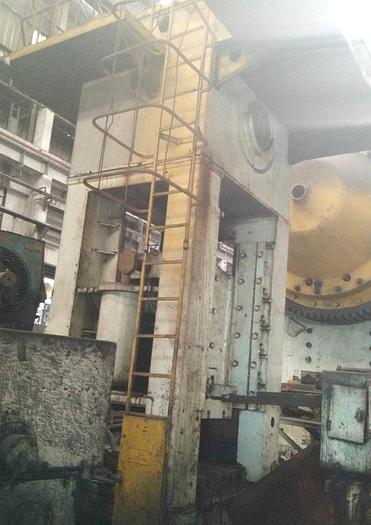

630 tons Press Trimming TMP Voronezh K9538

Capacity : 630 tons,

Slider stroke length : 400 mm,

Number of courses of a slider per minute (continuous/single) : 20,

Maximum distance between table and slider (in lower position of slider) : 750 mm,

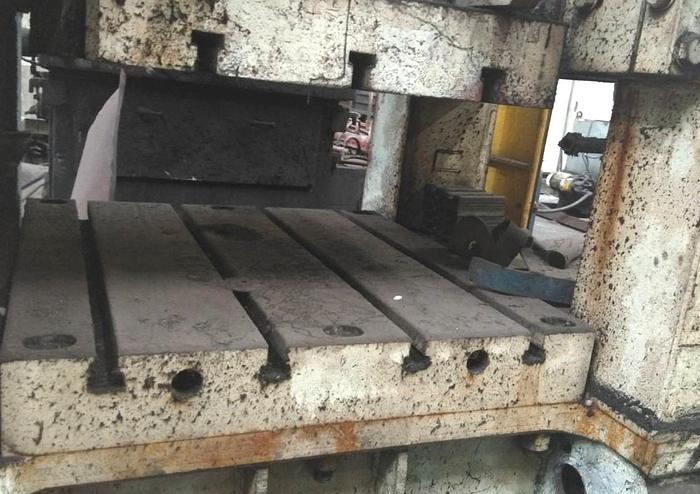

Table overall dimensions: mm

- from front to rear : 1250

- from left to right : 1250

Power of a drive : 58 kW,

Total power of electric motors : 62,1 kW,

Press overall dimensions :

- length : 3280 mm,

- width : 3470 mm,

- height : 6190 mm,

Press weight without hydropneumatic pillow : 49 tons,

Press weight with a hydropneumatic pillow : 52 tons.
