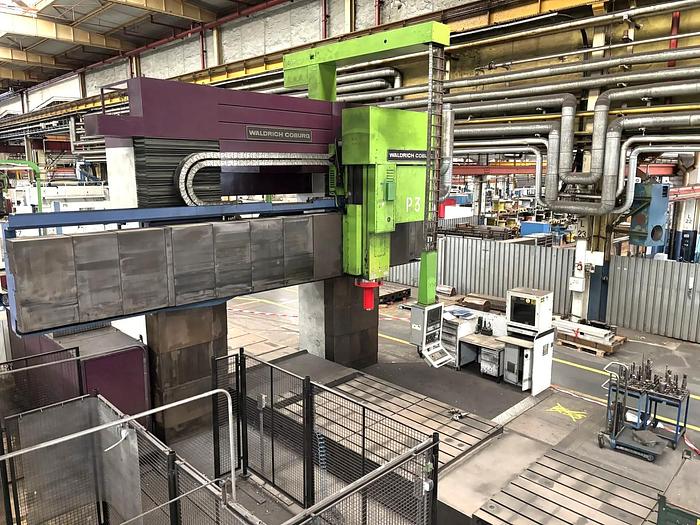

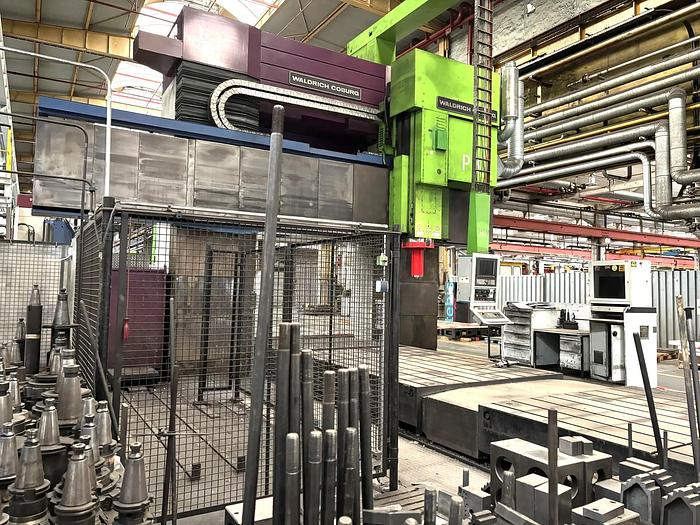

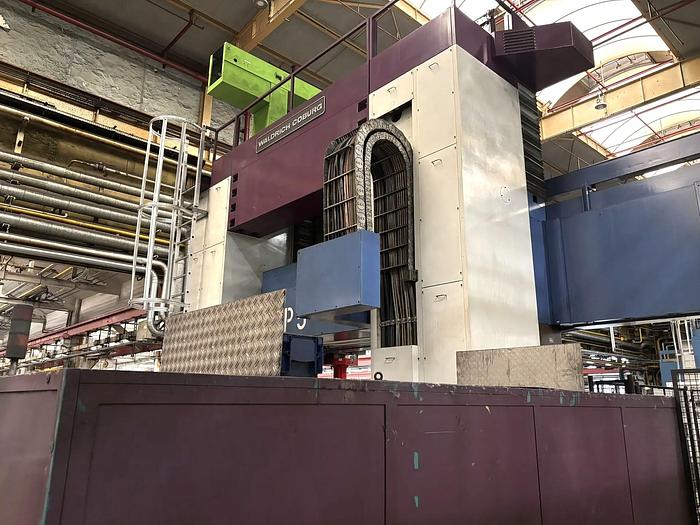

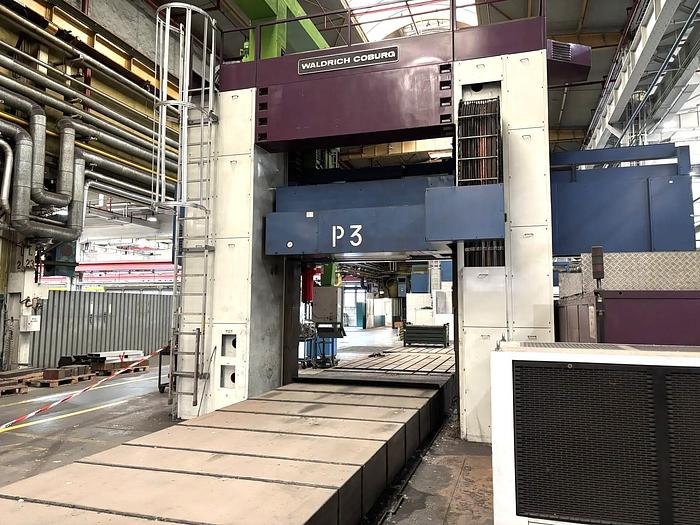

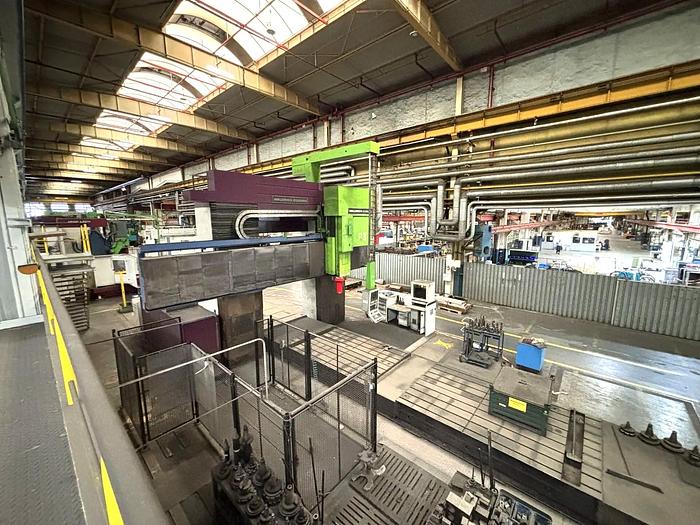

Plano Miller CNC Waldrich Coburg 17S-10FP225NC

NC portal milling machine with double table

Z - travel : 2000 mm,

Distance spindle - table max. : 2500 mm,

M - travel 11000 mm,

Y - travel : 2600 mm,

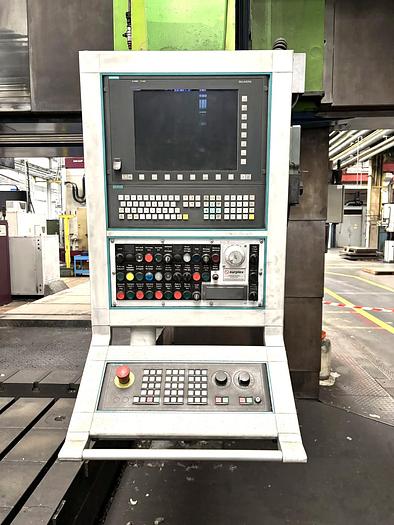

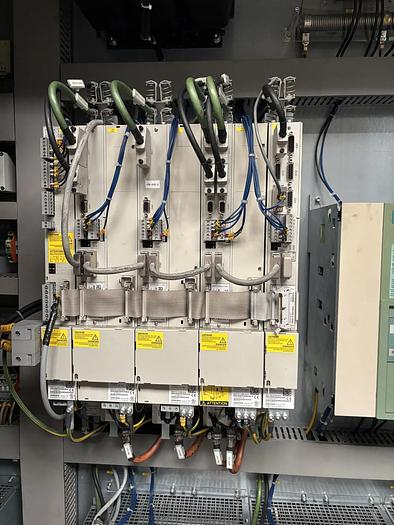

Control: Siemens Sinumerik 840 D PL,

Table surface area l x w : 2 x 3000 x 2500 mm,

No. of milling heads horizontal: 1

No. of milling heads vertical: 1

Distance between columns: 2250 mm,

Weight approx.: 1 kg,

Approx. Onsite Dimension. (l x w x h) : 20000 x 10000 x 9000 mm,

Highlights

Sinumerik 840D overhauled in 2008

Various interchangeable heads

Extremely stable and good mechanical engineering quality

Workspace

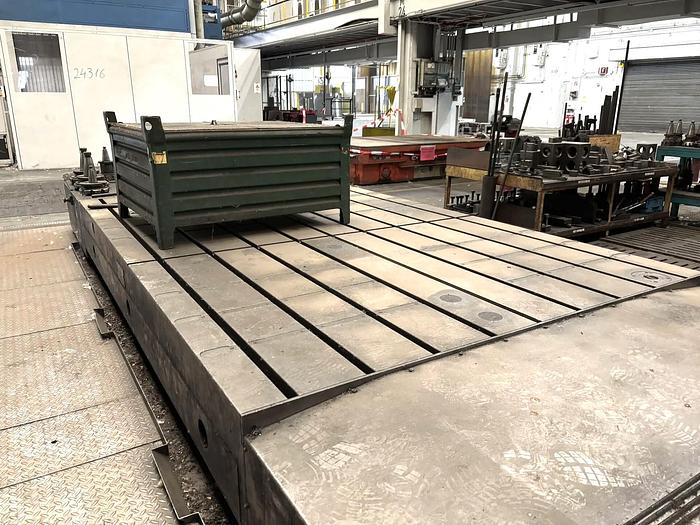

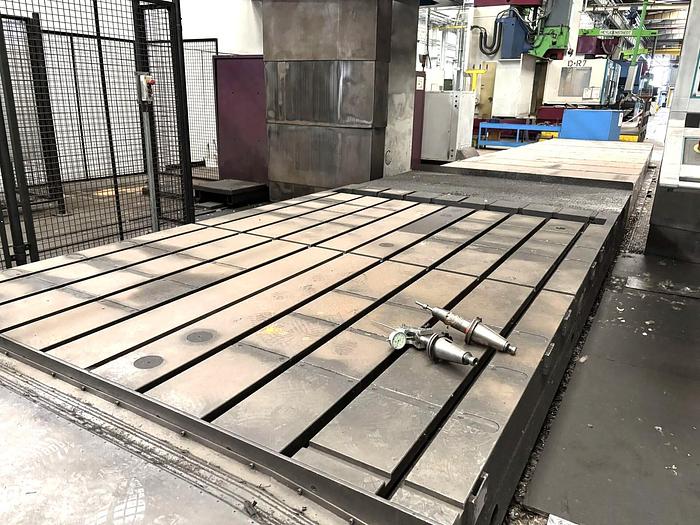

Clamping area panel field: 2 times 3,000 x 2,500 mm

Changing tables

Table load per table max.: 20 t per table

Passage between the uprights: 2,550 mm

Passage between panel field and milling spindle face max.: 2,500 mm

Feed range: 0 - 10,000 mm/min

C- and B-axis

C - axis swivel plane of the milling and drilling unit M3: 1 - 3,600 °/min

B - axis swivel plane

Head changer and tool changer
