Plano Miller CNC Waldrich Siegen V/H5-FaceCNC

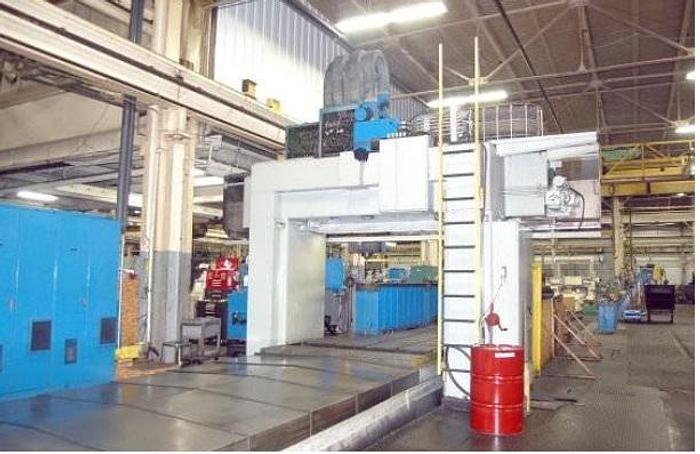

Waldrich Siegen V/H 5-Face CNC Planer Mill

FEATURES:

Allen Bradley System 9 CNC

Retrofit With New Fanuc CNC Control Available at Additional Cost

5-Face Auto-Indexing Right Angle Head

TRAVELS:

X-Axis Table Travel : 13700 mm,

Y-Axis Head Travel : 3755 mm,

Z-Axis Ram Vertical Travel : 1000 mm,

W-Axis Quill Travel : 500 mm,

Combined Travel Ram & Quill : 1500 mm,

SPECIFICATIONS:

Distance Spindle To Table Top : 1600 mm,

Distance Between Columns : 2492 mm,

Ram Cross Section : 500 x 500 mm,

Table Size, Joined : 2250 x 13701 mm,

Table Size, Front : 2250 x 10000 mm,

Table Size, Rear : 2250 x 3000 mm,

Spindle Speeds : 10-1787 RPM

Spindle Drive Motor : 37 KW

Spindle Taper : #50 CAT

Auto-Indexing of Right Angle Heads : 4 x 90 Degrees

Reach of Right Angle Heads : 500 MM

EQUIPPED WITH:

Allen Bradley System 9 CNC (New 1998)

Heidenhain Scales (New 1998)

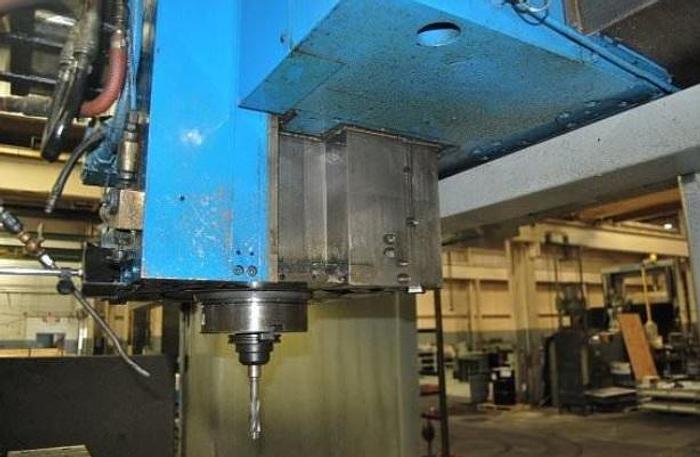

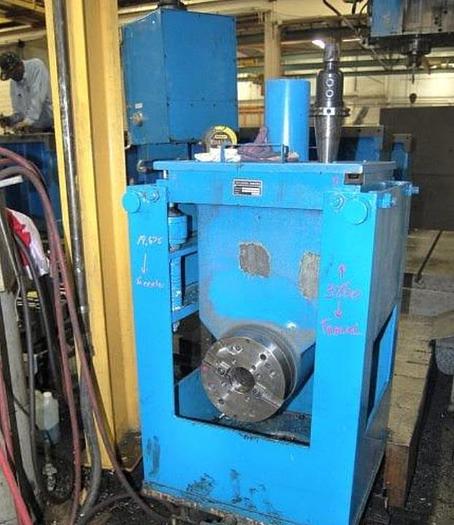

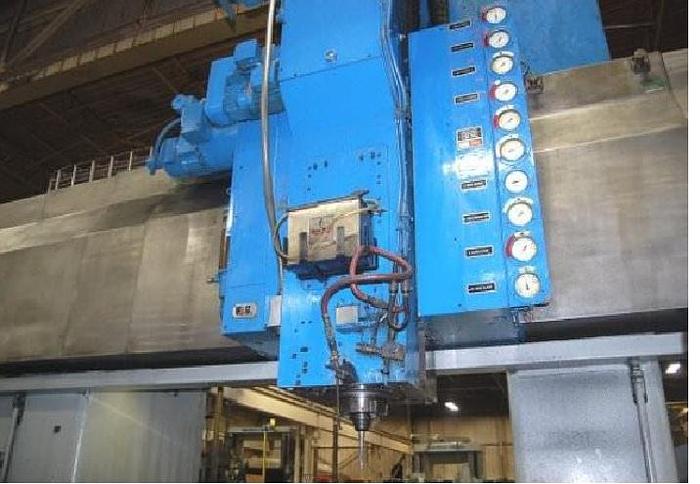

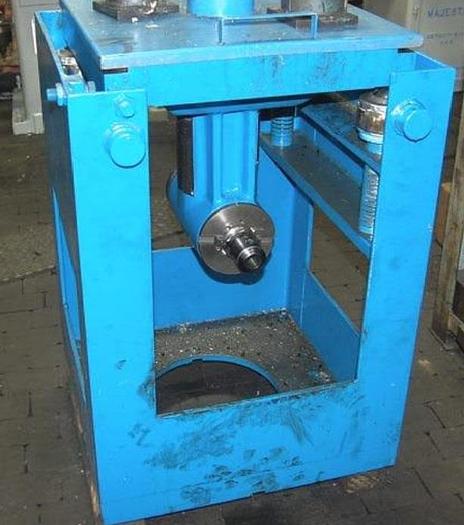

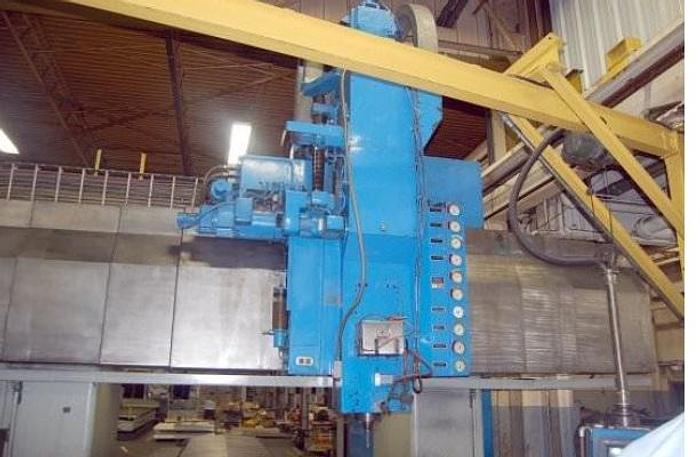

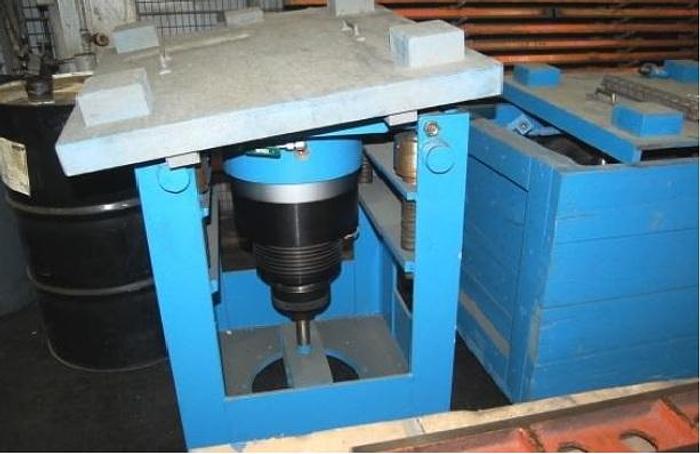

(3) Right Angle Heads with Auto Indexing

5-Face CNC Programming

Way Covers

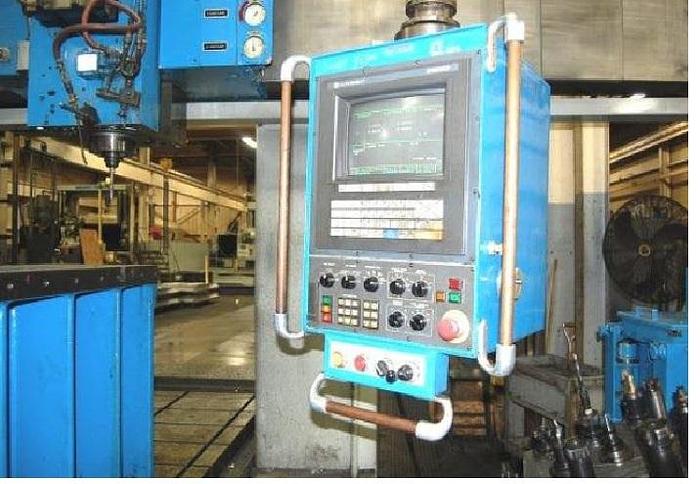

Pendant Controls

Hydrostatic Ways on Bed

Coolant

Full Length Chip Conveyor

NOTES:

Available As Is or With Complete Fanuc Retrofit At Additional Cost. inspect Under Power In Plant
