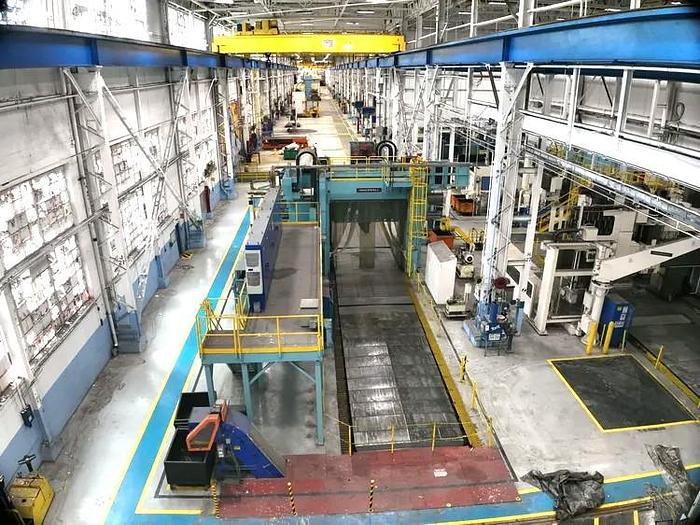

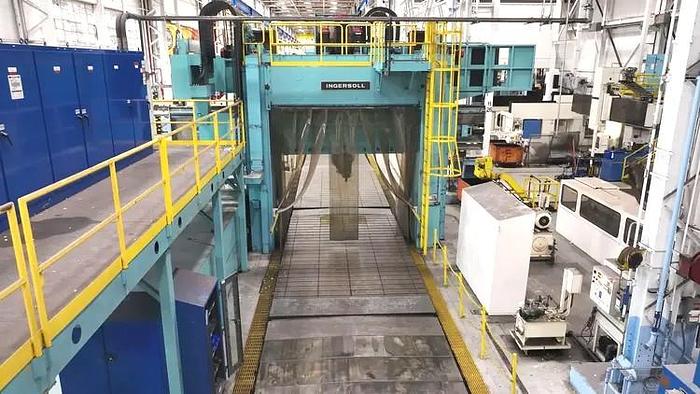

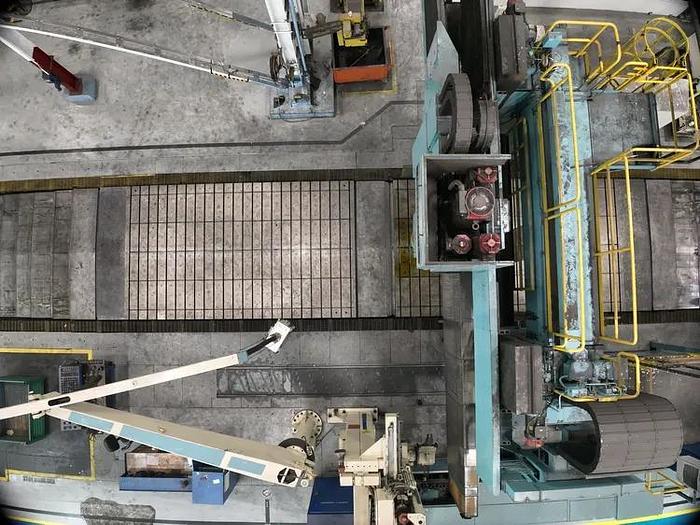

Plano Miller CNC Ingersoll

Master Head 5-Axis CNC Planer Mill, X-541" w/Fanuc Controls

CNC Control : Fanuc 31i,

Table -W : 3450 mm,

Table -L : 12939 mm,

Maximum Table Load : 44000,

Maximum Height Table To Ram Face : 3250 mm

Distance Between Columns : 3734 mm,

R am Cross Section : 600 x 600 mm,

X-axis Travel : 13744 mm,

Y-axis Travel : 5000 mm,

Z-axis Travel : 1000 mm,

A-axis Head Rotation : 0.001°,

B-axis Head Swivel : 180°,

Spindle Taper : CATV-50,

Spindle Speed (rpm) : 4,000 RPM,

Spindle Motor : 75 hp.

ADDITIONAL MACHINE SPECIFICATIONS:

Table Size, Joined : 3450 x 12939 mm,

Table Size, Un-Coupled Front : 3450 x 6490 mm

Table Size, Un-Coupled Back : 3450 x 6450 mm,

Distance Between Table Sections : 1000 mm,

Table Weight Per Table Meter Length : 44,000 Lbs/Meter,

Table Weight Capacity Joined : 139,480 Lbs,

NUTATING 2-AXIS HEAD:

A-Axis, Head Rotation, 360 Degree 360,000 Positions

B-Axis, Head Swivel, 180 Degree 360,000 Positions

EQUIPPED WITH:

– Fanuc 31i 5-Axis CNC Control

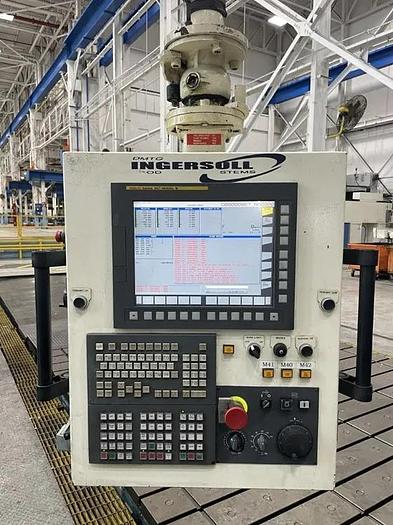

– Adjustable Pendant Controls

– 72 Station Automatic Tool Changer

– 6-Station Automatic Attachment Changer

– 5-Spindle Units Including Right Angle, Straight Heads

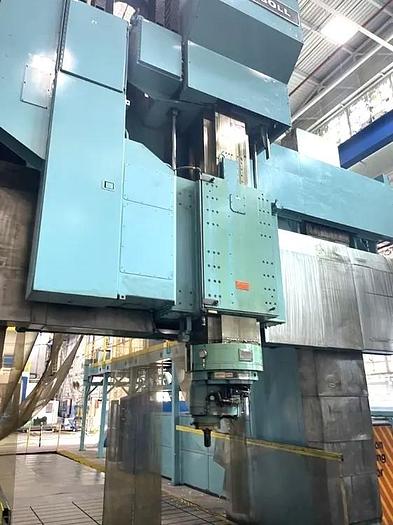

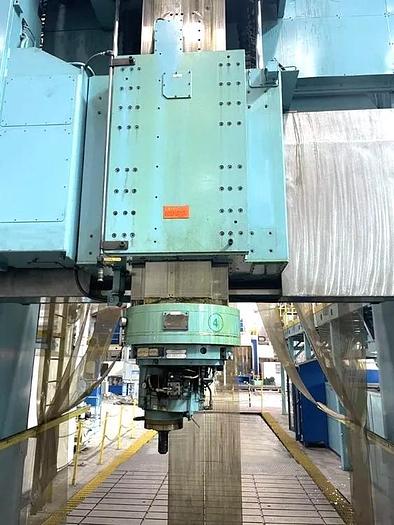

– 2-Axis Articulating Head for 5-Axis Machining

– Right Angle Head for 5-Face Milling

– Thru-Spindle Coolant

– Telescoping Steel Way Covers on all X, Y & W Axes

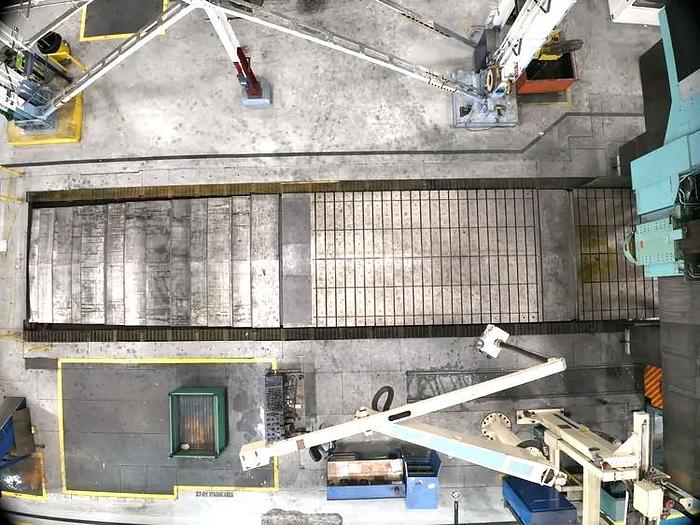

– Split Table

– Chip Conveyor

– 75 HP/100 HP Digital AC Spindle Motor.

NOTES: Retrofit and Mechanically Refurbished in 2016 With New Electrics.
