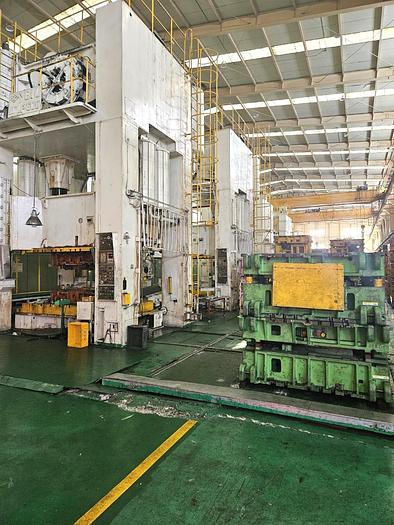

600 tons Sheet Stamping Line Mechanical JIL PRESS 600-500-400-400
Specifications
| Manufacturer | JIL PRESS |
| Model | 600-500-400-400 |
| Year | 1994 |
| Condition | Used |
| Stock Number | MA2079 |
| Item condition | Good working condition |
| Capacity tons | 600 |
Description
Sheet Stamping Line
1)
Model : JCLP-600
Capacity : 600 tons,
Stroke : 600 mm,
Stroke per min : 12-24,
Die Height : max. 1200 mm,
Min. 600 mm,
Slide Adjustment : 600 mm,
Slide Area : 3000 x 1800 mm,
Bolster Area : 3000 x 1800 mm,
Bolster thickness : 260 mm,
Main Motor : 95 DC, KWxP,
Slide adjust motor : 7.5 kw,
Die cushion capacity : 120 tons,
Die cushion stroke : 0-320 mm,
Die cushion pad area : 2300 x 1200 mm,

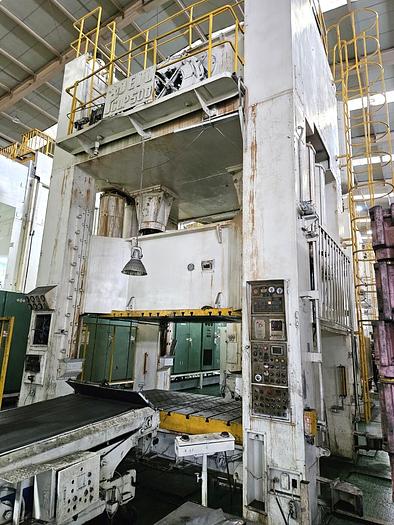

2) Model : JCLP-500,
Yom : 1994
Capacity : 500 tons,
Stroke : 600 mm,
Stroke per min : 12-24,
Die Height : max. 1200 mm,
Min. 600 mm,
Slide adjustment : 600 mm,
Slide area : 3000 x 1800 mm,
Bolster area : 3000 x 1800 mm,
Bolster thickness : 240 mm,
Main motor : 75 AC, KWxP,
Slide adjust motor : 5.5 kw,
Die cushion capacity : 100 tons,
Die cushion stroke : 0-320 mm,
Die cushion pad area : 2300 x 1200 mm,

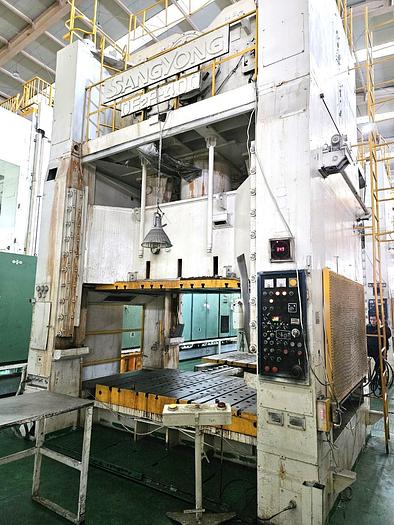

3) Model : DE2P-400
Yom : 1990,
Capacity : 400 tons,
Stroke : 450 mm,
Stroke per min : 12-24,
Die Height : max. 900 mm,
Min. 660 mm,
Slide adjustment : 300 mm,
Slide area : 2500 x 1600 mm,
Bolster area : 2500 x 1600 mm,
Bolster thickness : 220 mm,
Main motor : 55 AC, KWxP,
Slide adjust motor : 5.5 kw,
Die cushion capacity : 40 tons,
Die cushion stroke : 20-250 mm,
Die cushion pad area : 950 x 930 mm,

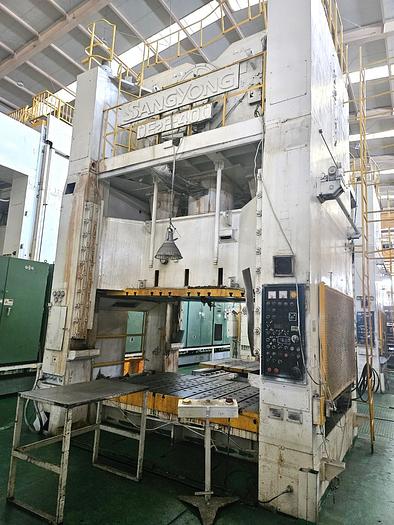

3) Model : DE2P-400
Yom : 1990,
Capacity : 400 tons,
Stroke : 450 mm,
Stroke per min : 12-24,
Die Height : max. 900 mm,
Min. 660 mm,
Slide adjustment : 300 mm,
Slide area : 2500 x 1600 mm,
Bolster area : 2500 x 1600 mm,
Bolster thickness : 220 mm,
Main motor : 55 AC, KWxP,
Slide adjust motor : 5.5 kw,
Die cushion capacity : 40 tons,
Die cushion stroke : 20-250 mm,
Die cushion pad area : 950 x 930 mm,
