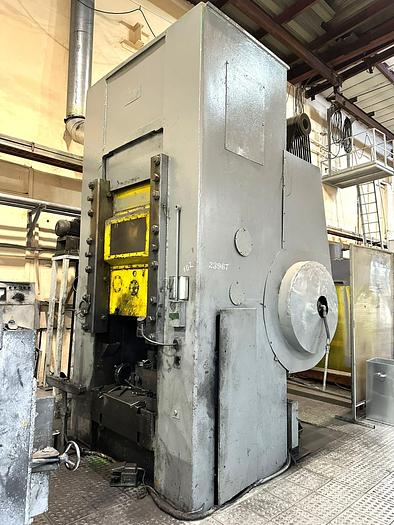

400 tons Press Cold Forging Barnaul K0036

Capacity : 400 tons,

Slide stroke : 240 mm,

Slide strokes per 1 min : 25,

Bolster plate to ram adjustment stroke : 20 mm,

Shut height : 750 mm,

bed dimensions : 1250 x 1250 mm,

bolster plate thickness : 200 mm,

Lower ejection stroke : 240 mm,

Lower ejection force : 50 tons,

Upper ejection stroke : 20 mm,

Upper ejection force : 16 tons,

Dimensions: 2500 x 2260 x 4515 mm,

Total weight: 36.6 tons.
