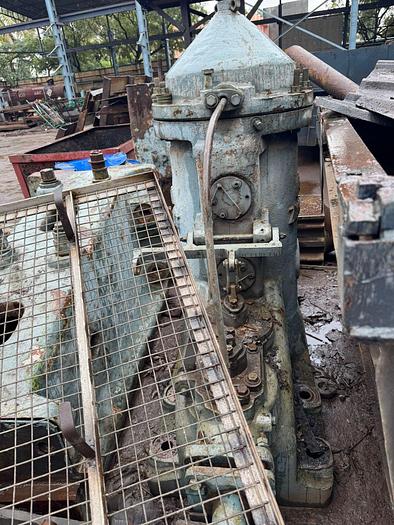

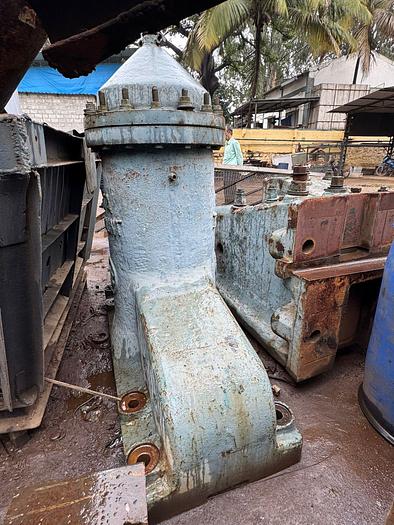

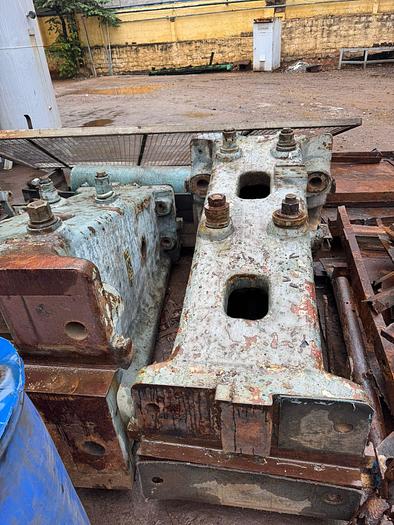

1 ton Hammer Forging Pneumatic Huta Zygmunt MPM3150

Capacity : 1 ton,

Energy of blow : 3600 kg.m,

Weight of falling ram : 1250 Kg,

Max. Tup stroke : 800 mm,

Guideway spacing : 550 mm,

Length of die steam in the tup : 500 mm,

Length of die steam in the cushion : 700 mm,

Min. height of the die (without dovetail) : 220 mm,

Max. weight of upper die : 400 Kg,

Stroke rate : 110 spm,

Steam or incoming air pressure : 5-7 Kg/cm2,

Average steam consumption: 650 kg/h,

Average air consumption : 12 m3/mm,

Height above the floor : 3750 mm,

Total height : 4380 mm,

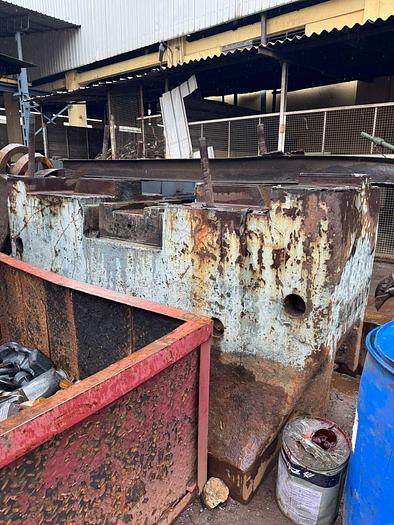

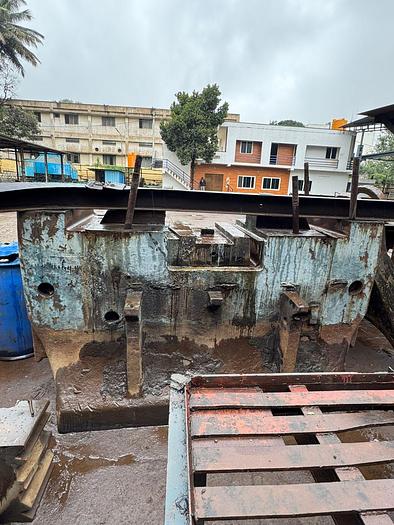

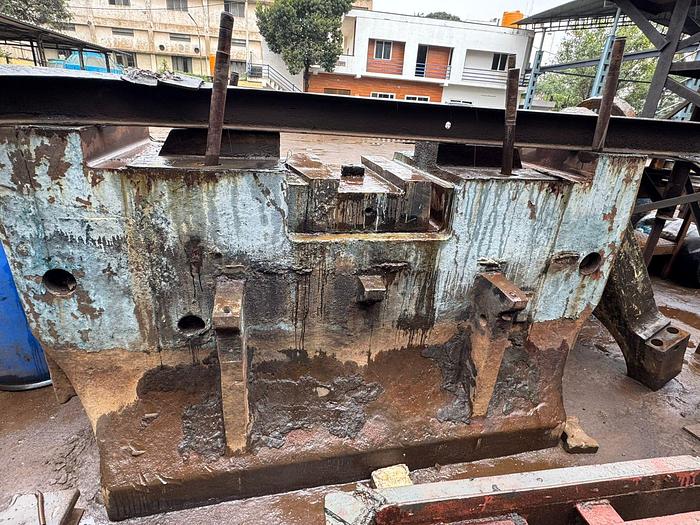

Weight of anvil : 24 tons,

Total weight of the hammer : 35 tons.
