800 tons Press Friction Screw Ficep PVM280
Specifications
| Manufacturer | Ficep |
| Model | PVM280 |
| Condition | Used |
| Stock Number | MA2823 |
| Item condition | Good condition |
| Capacity tons | 800 |
Description

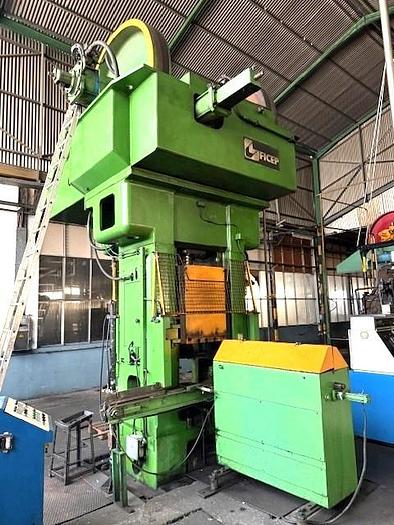

Screw Press Ficep PVM 280 with 4 tire rods
Capacity : 800 tons,
Stroke of the ram : 475 mm,
Screw diameter : 280 mm,
Max. allowed force : 1600 tons,
Stroke per minute : 28,
Die light : 620 mm,
Max energy : 68000 Nm,

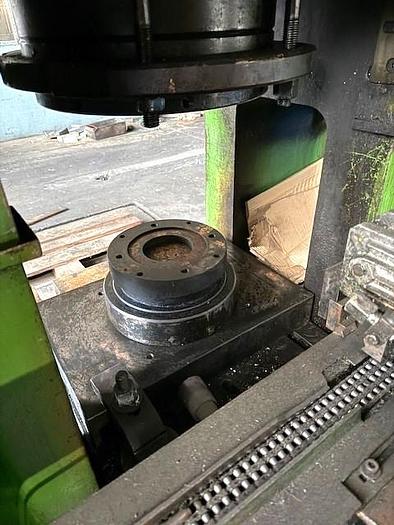

Dimension of the table :
Left to right : 660 mm,
Back to front : 900 mm,
Main power motors : 30-45 kW,
Weight of the press : 41 tons.

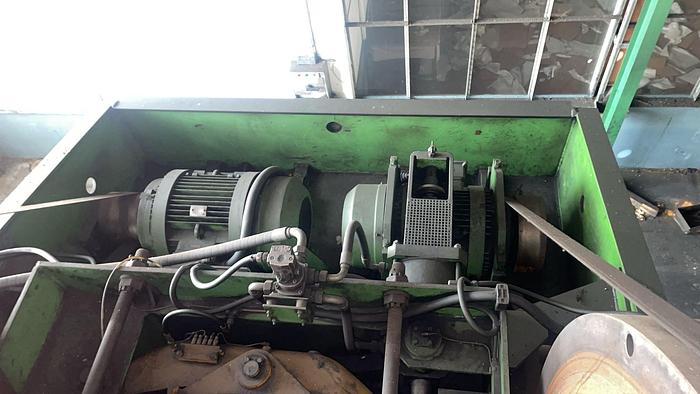

Note : that this machine has 2 motors ,one to go down the ram ,the 30 kw and 45 kw to go up.
This is possible because the central axel shat is not rotating in the Ficep screw press.
With this solution the energy consumption is less in confront of the other press ,because only one motor is working during forging operation.
The second motor is working only for the ram return ,so when one motor working the are one just rotating. Motors life time is longer.
