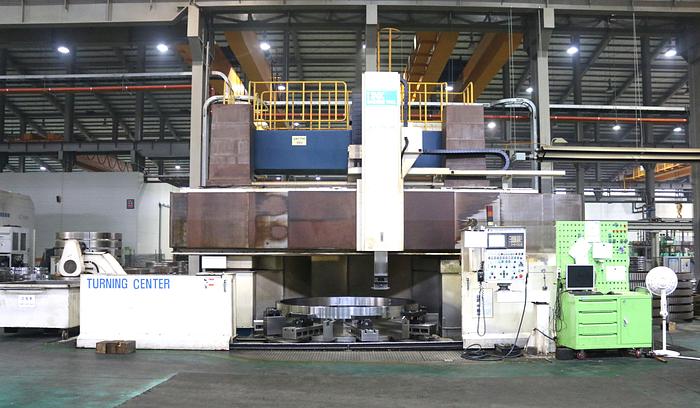

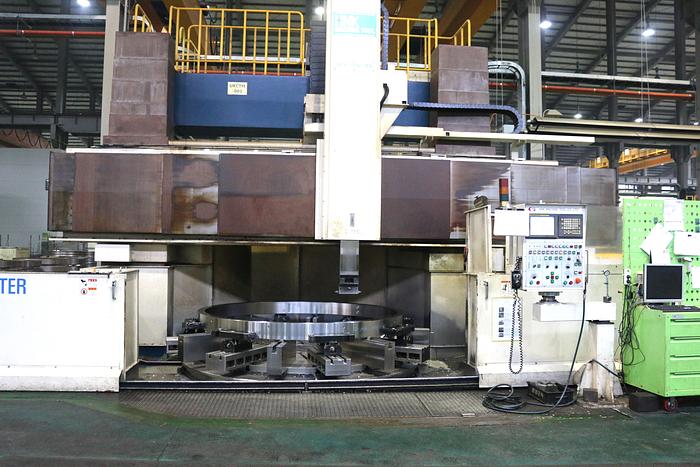

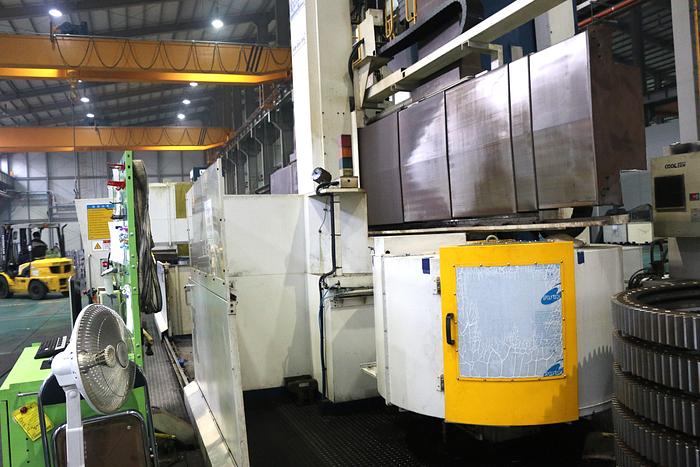

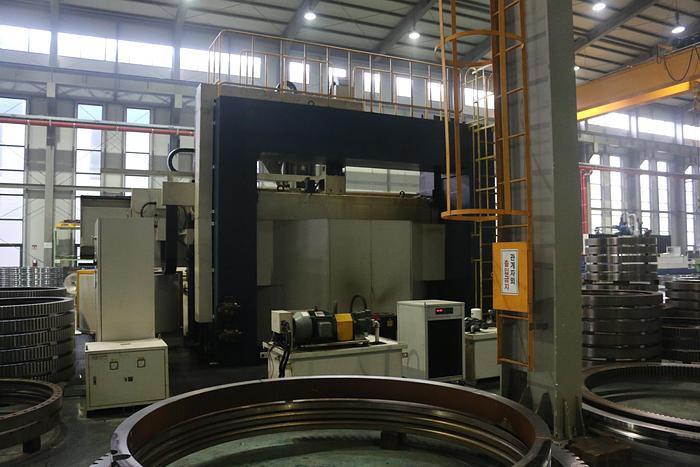

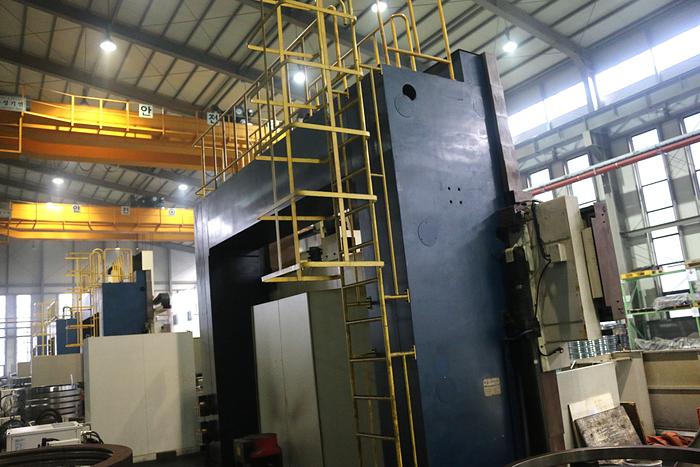

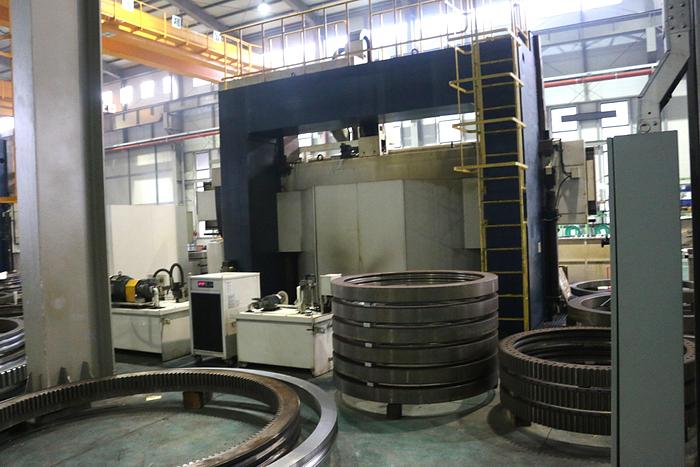

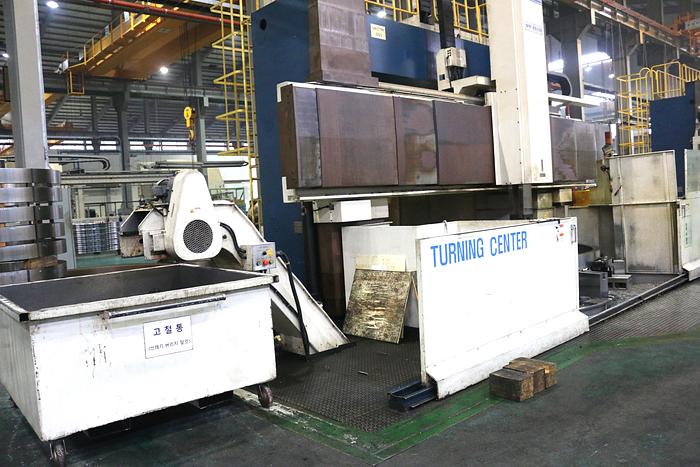

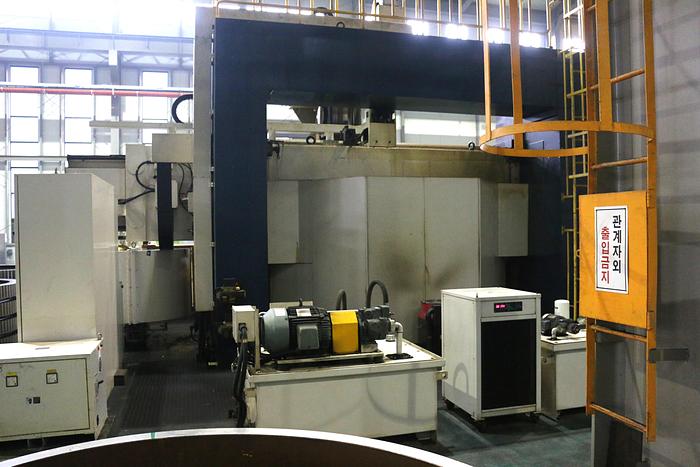

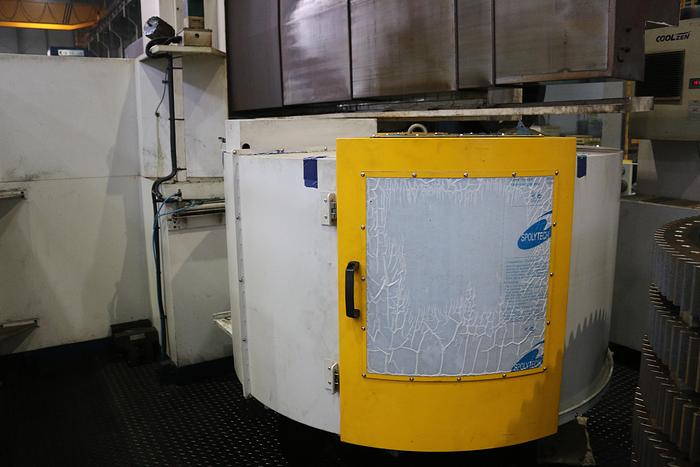

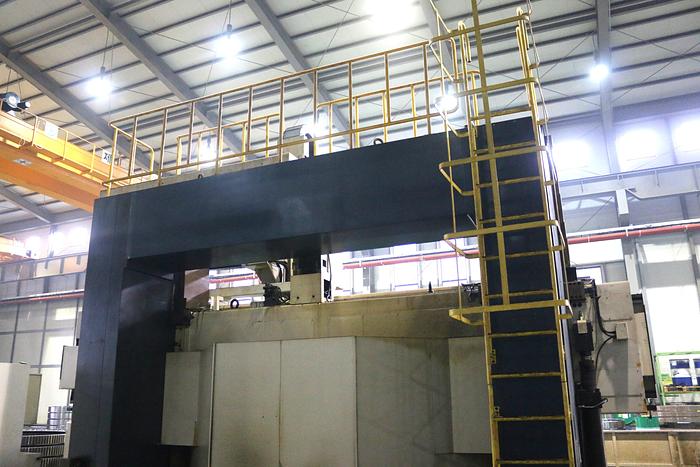

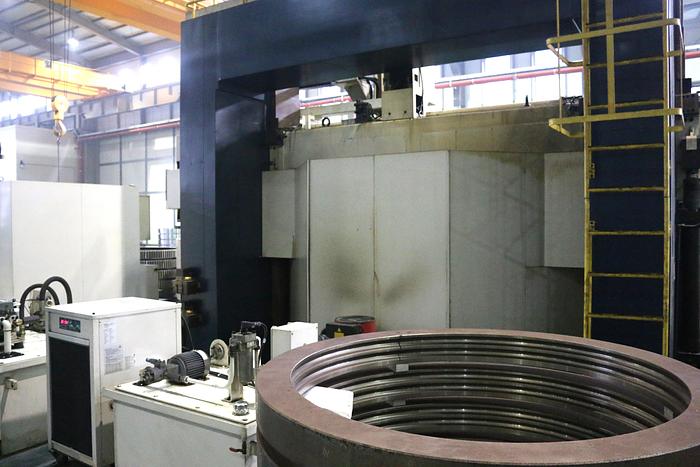

Lathe Vertical Turning CNC HNK NT25/35

Price

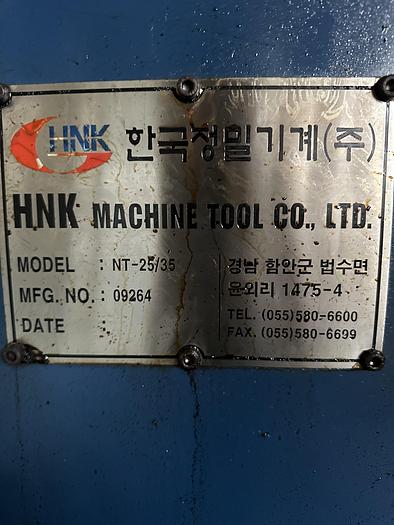

Manufacturer	HNK
Model	25/35
Year	2009
Condition	Used
Stock Number	MA2819
Item condition	Good condition, dismantled & stored in warehouse
Capacity tons	2500

Table size : 2500 mm,

Max swing : 3500 mm,

Table to tool (high) : 2000 mm,

Table speed : Max. 100 rpm,

Max load : 15 ton,

Table torque : 5075kg-m / 55kW / 10.6rpm,

Stroke

X axis : -200~+2950 mm,

Z axis : 1200 mm,

W axis : 1000 mm,

Feed rate X,Z axis : 1~ 3000 mm/min,

Rapid feed rate X,Z axis : 10000 mm/min,

Ram size : 240 x 240 mm,

Tool shank : 40 x 40 mm,

ATC : 12 pot

Machine size : 10850 x 6950 x 7150 mm,

Machine weight : 70 tons,

CNC - Control : FANUC 18i TB.
