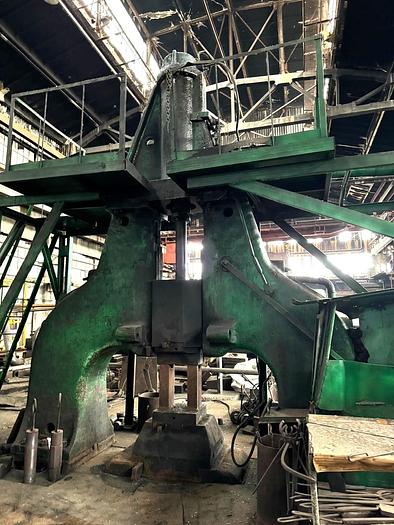

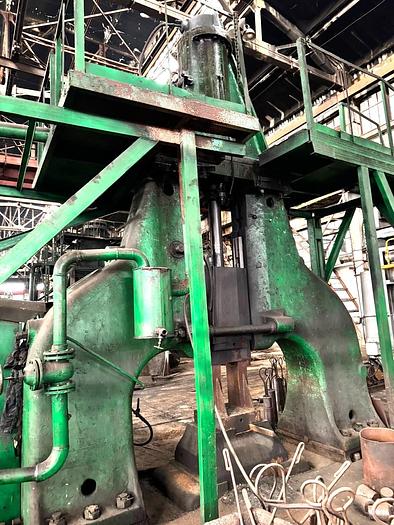

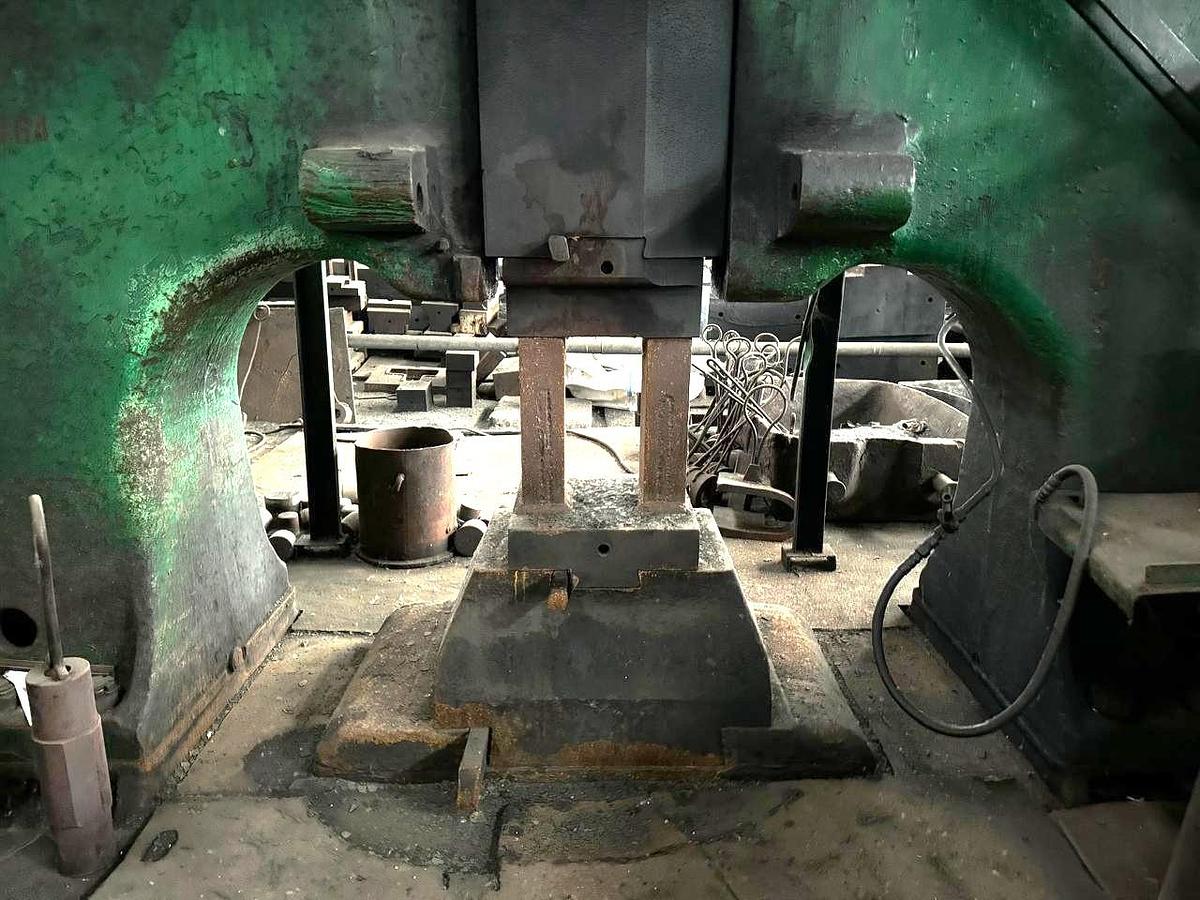

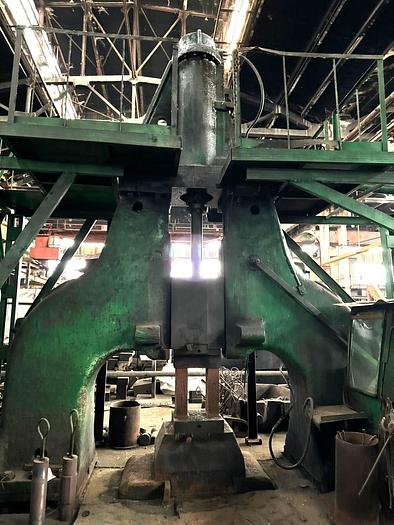

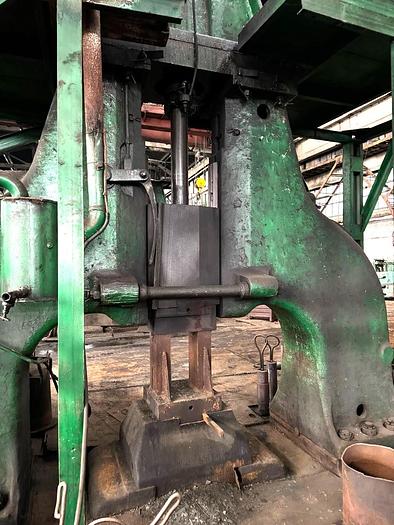

2 tons Hammer Drop Forging Open Die M1343 Russian

Capacity : 2 tons,

Impact energy : 50 kJ,

Nominal mass of drop parts : 2000 kg,

Max number of blows per minute : 56,

Max stroke of headstock : 1000 mm,

Distance between columns in daylight : 2360 mm,

Distance between guides in daylight : 550 mm,

Working zone height in daylight : 530 mm,

Bottom die impression-to-floor distance : 750 mm,

Die impression size (L x W) : 530 x 300 mm,

Steam pressure : 0,7...0,9 MPa,

Compressed air pressure : 0,6...0,8 MPa,

Hammer dimensions (L x W) : 4900 х 1930 mm,

Hammer height above floor level : 5000 mm,

Weight : 49 tons.
