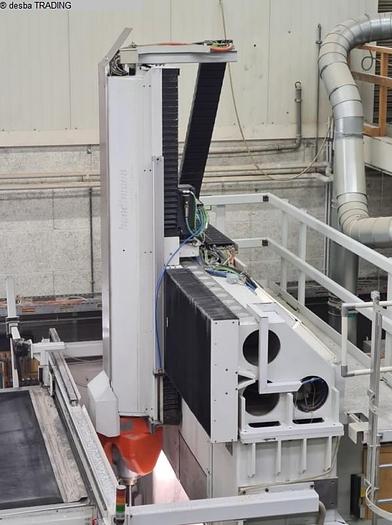

Plano Miller CNC Handtmann NT300/220T

Planer-Type Milling M/C - Double Column

Travel distances :

X axis approx. : 4200 mm,

Y axis approx. : 2750 mm,

Z axis approx. :1650 mm,

°C axis approx. : +/-275 °,

A axis : +95 ° / -120 °,

Fixture space approx. : 3000 x 2200 x 980 mm,

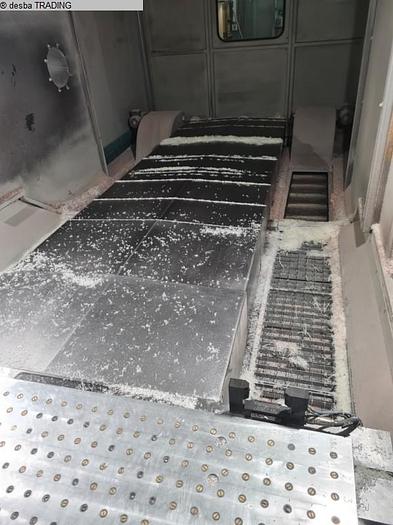

Table size : 3000 x 2200 mm with T-slots in 150 mm grid,

Table load : 1000 kg / m² table surface,

Working and rapid traverse speed : max. 20 m/min,

Machine dimensions :

Length : 9500 mm (without housing),

Width : 5900 mm,

Height : 6400 mm (Z axis extended),

Weight approx. : 40 tons,

Control : Fidia C20,

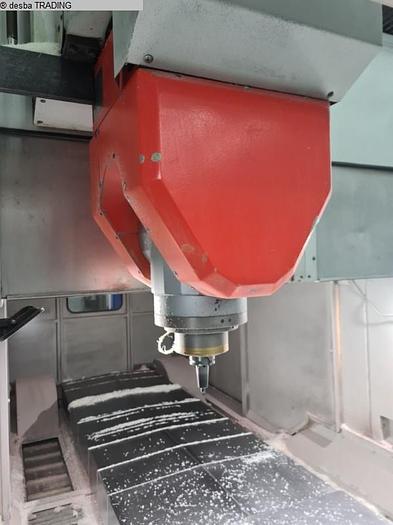

Spindle : HSK 63 from Fischer (Switzerland), 24,000 rpm (grease lubricated),

Spindle hours : 6939 hours (as of May 16, 22),

Total hours : 76,793 hours (as of May 16, 22),

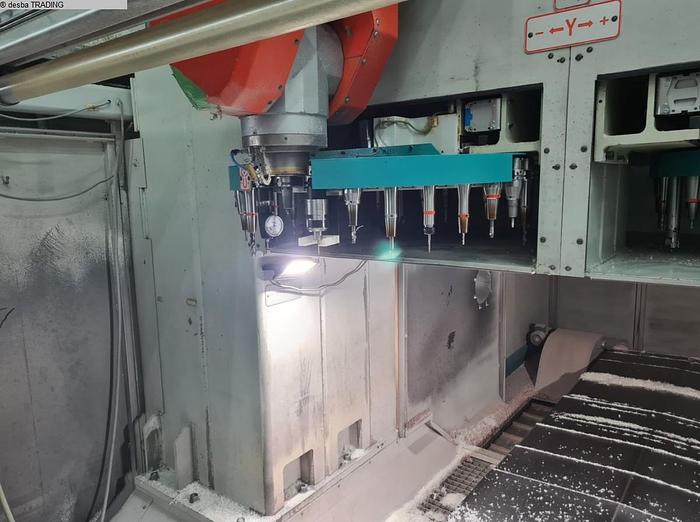

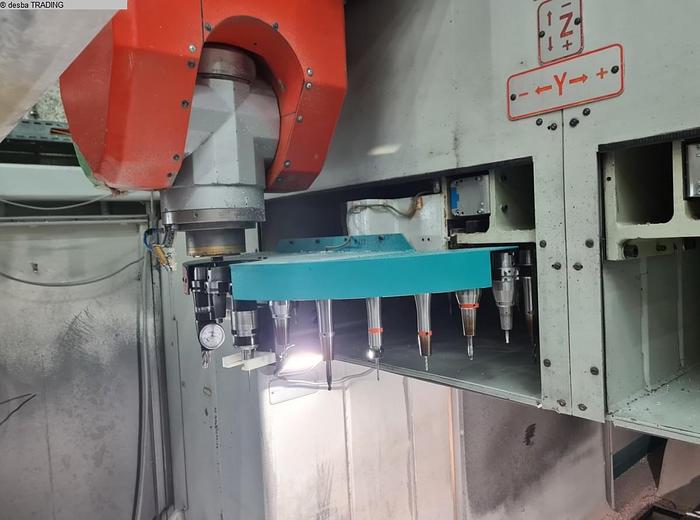

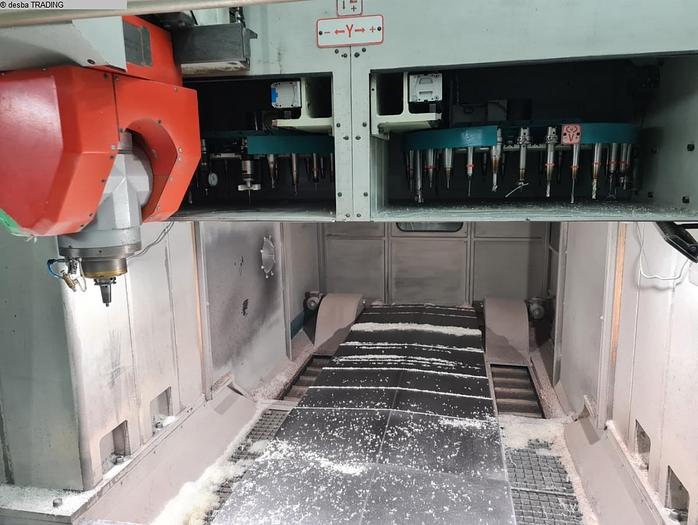

Tool changer : 2 tool magazines with 30 tool positions each,

Max. tool weight 4 kg, max. tool diameter 80 mm or Ø125 mm,

if two sister tool positions are omitted, max. tool length 280 mm cover plate pneumatic

Cooling : tool spray device with a container of 19.5l, spray head with adjustable output 0.04 - max. 2.3l / h,

Tool control : Blum Laser,

Radio measuring probe : manufacturer M&H, type 25.10, year of manufacture 2021,

Exchange ball screw X - axis July 10, 2018,

Telescopic cover replaced on one side on February 26, 2019.
