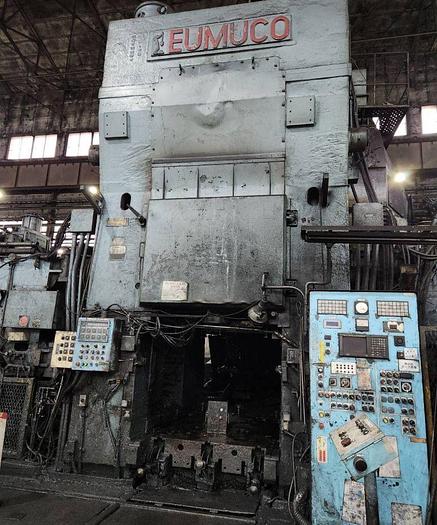

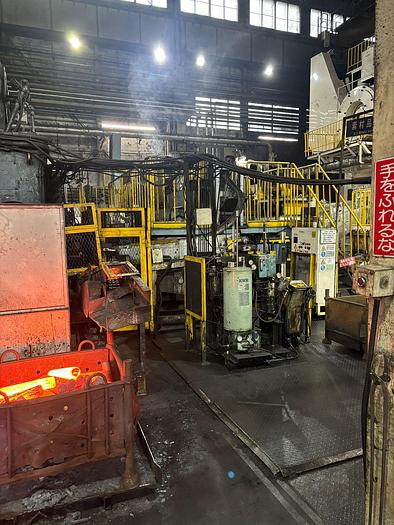

5000 tons Hot Forging Line Eumuco KSP500

1) Press Hot Forging

Capacity : 5000 tons,

Ram stroke : 330 mm,

Stroke per minutes : 45,

No. of real working strokes : 10,

Max. Shut height : 1217.5 mm,

Ram adjustment : 15 mm,

Table width : 1520 mm,

Table depth : 1950 mm,

Ram width : 1465 mm,

Ram depth : 1615 mm,

Frame opening width : 900 mm,

Over floor height : 6950 mm,

Table surface above floor : 392.5 mm,

Weight of press : 360 tons,

Drive motor : 280 kW,

Motor speed : 1500 rpm,

No. of jectors, top and bottom : 3,

Ejector Stroke top : 45 + 15 and 25 + 15,

Ejector force top : 25 tons,

Ejector Stroke bottom : from 30 to 110 mm,

Ejector force bottom : 75 tons,

Clutch size 1400w/torque of : 245,000 mkg,

Brake size K 1600 w/brake moment of : 1600 mkg,

Air consumption of clutch : 35 1/stroke,

Air consumption of brake : 11 1/stroke,

Cooling water consumption (brake, ram layshaft) : 3 cubic m/hour.

One set more for the spare parts. ( Total 2 sets )

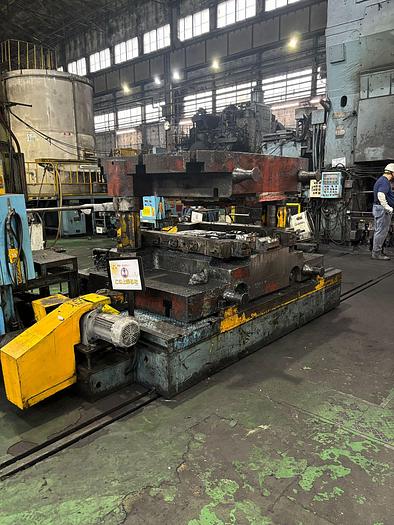

2) Press Trimming

Make : Eumuco,

Model : ADP-50 in Japan,

Capacity : 500 tons,

Stroke : 240 mm,

Stroke per minutes : 40,

No. of real working stroke per minutes : 11,

Max. shut height : 580 mm,

Min. Shut height : 430 mm,

Ram adjustment : 150 mm,

Ram width : 1570 mm,

Ram depth : 1000 mm,

Table width : 1600 mm,

Table depth : 1100 mm,

Daylight between stands : 1600 mm,

Main drive motor : 30 kw,

No. of working operations : 2 piercing & trimming ,

Fell down opening in table : 1 x 320,

Torque of clutch : 8150 mkg,

Brake moment : 678 mkg,

Air consumption : 45 1/hour max.

Weight : 40.4 tons,

With conveyor .
