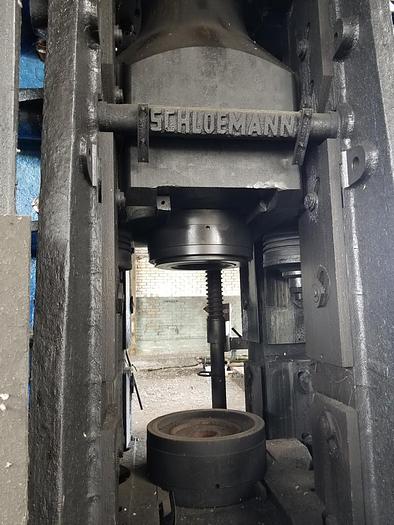

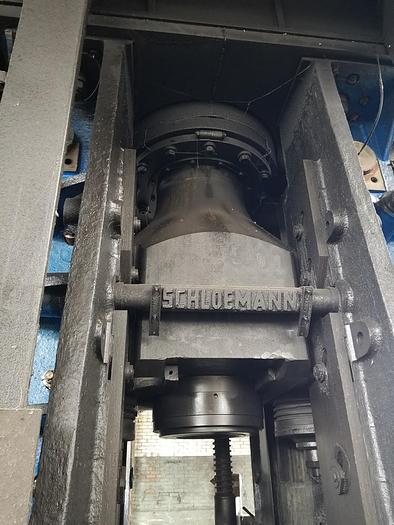

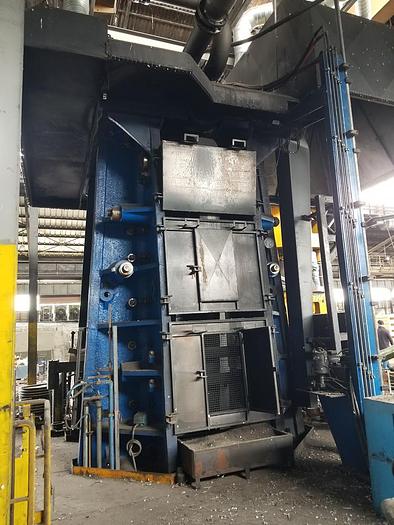

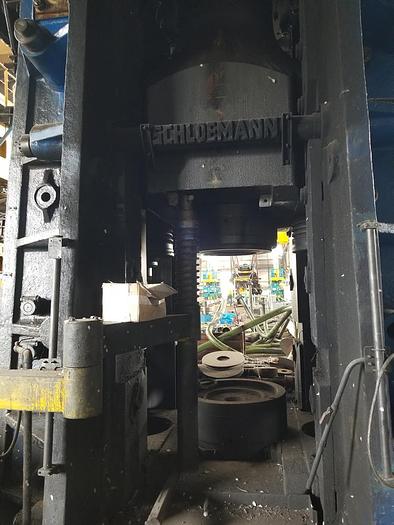

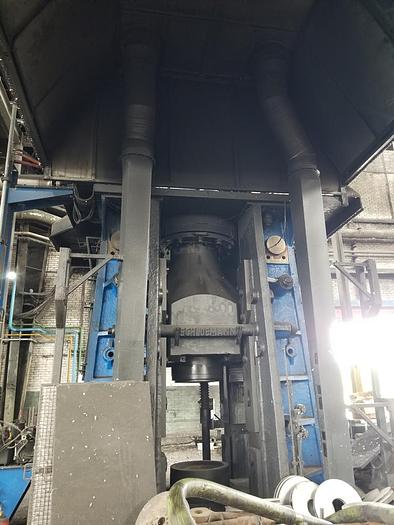

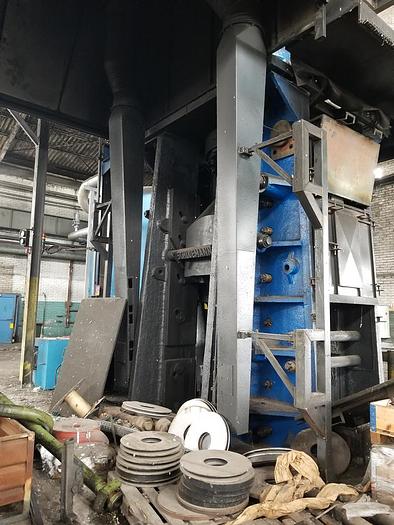

40 tons Hammer Counterblow Beche (Schloemann) DGH40
Specifications
| Manufacturer | Beche (Schloemann) |
| Model | DGH40 |
| Condition | Used |
| Stock Number | MA2781 |
| Item condition | Good condition |
| Capacity tons | 40 |
Description
Capacity : 40 tons,
Blow energy : 40,000 kg/m,
Ram stroke : 1450 mm,
Max. stroke rate : 80 spm,
Average stroke rate : 6 spm,

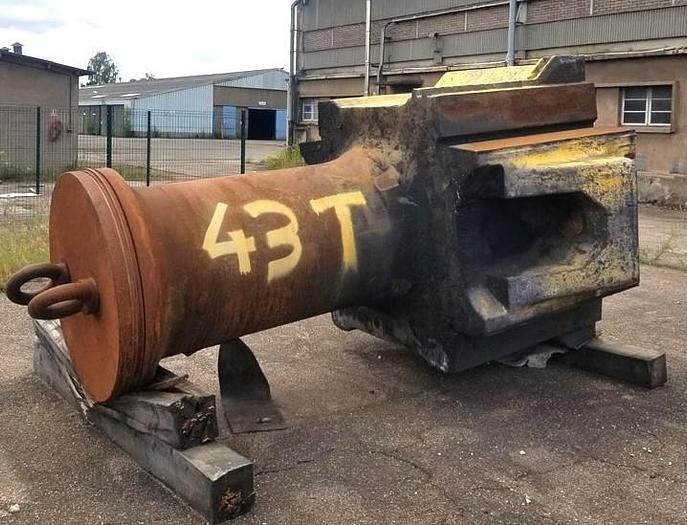

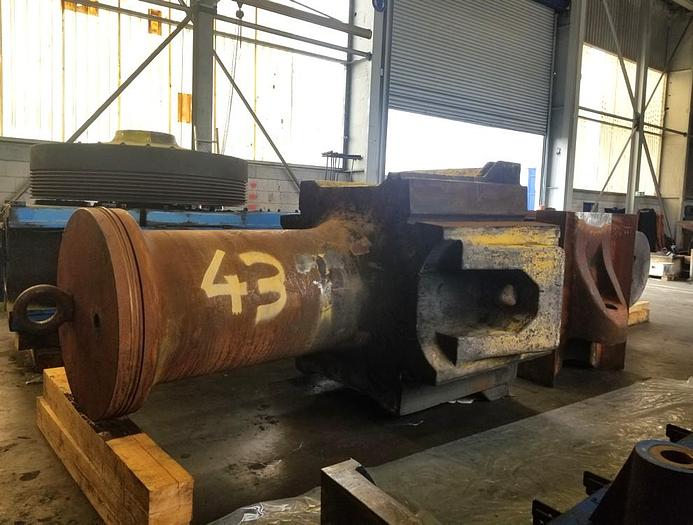

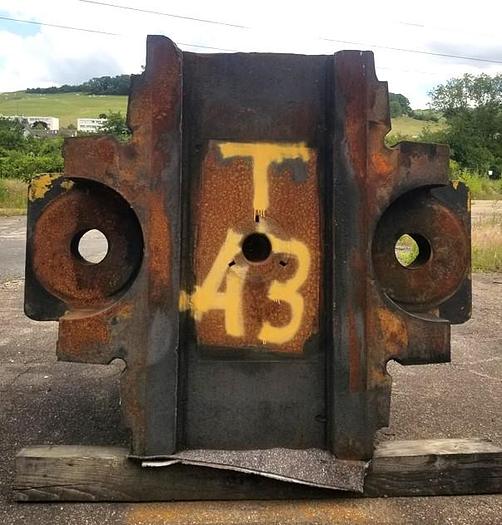

Upper ram weight : 43 tons,
Lower ram weight : 47 tons,
Air consumption (hardest stroke)
Cold air : 53m3,
Hot air 2200c : 32m3,
Air consumption
Cold air (at average stroking rate) : 32 m3/3n,
Hot air 2200c (at average stroking rate) : 19 m3/3n,
Usable compressor power:
Cold air (at average stroking rate) : 240 HP,
Hot air 2200c (at average stroking rate) : 140 HP,
Distance between slides : 1200 mm,
Min dies height (without dovetail) : 575 mm,
Height above the floor : 6200 mm,
Total weight : 235 tons.
