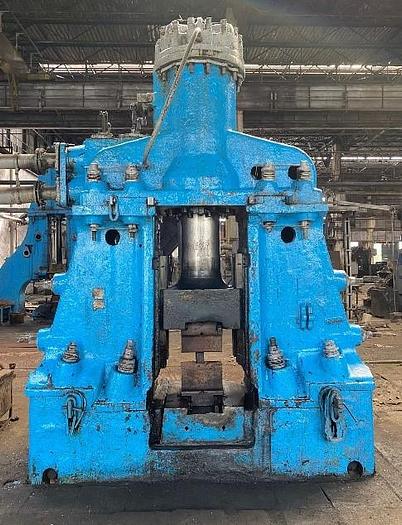

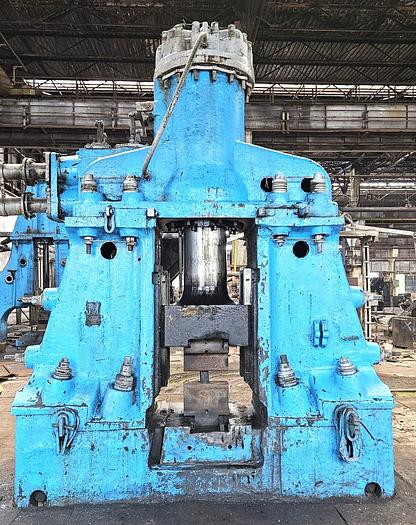

2.5 tons Hammer Forging Pneumatic Huta MPM2000A

Forging Hammer CM2500 made by Progresul Braila - Romania

Capacity : 2.5 tons,

Weight of the ram : 2480 kg,

Ram stroke : 950 mm,

No. of stroke per min : 90,

Shut height till ram : 650 mm,

Shut height till table : 900 mm,

Min. height of the models : 300 mm,

Max. weight of upper mold : 800 kg,

Height of the meeting line of the molds from the ground : 780 mm,

Energy capacity : 7000 kgm,

steam inlet pressure : 6-8 kg/cm2,

Compressed air inlet pressure : 5-7 kg/cm2,

Hourly steam consumption : 970 kg,

Compressed air consumption : 18 m2/mm,

Cylinder bore : 540 mm,

Diameter of the shaft of the club : 400 mm,

Dimeter of the inlet pipe : 125 mm,

Outlet pipe diameter : 125 mm,

Weight of the anvil : 45 tons,

Total weight of the hammer : 62.5 tons.

without cracks and other damages.
