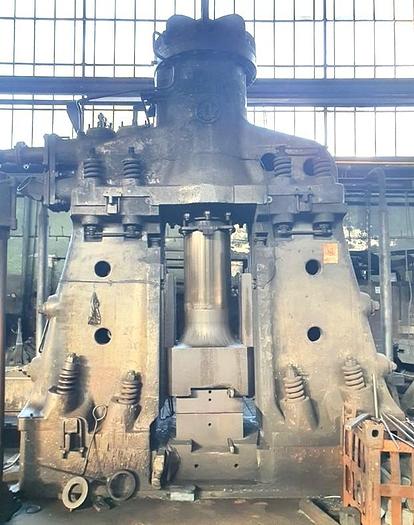

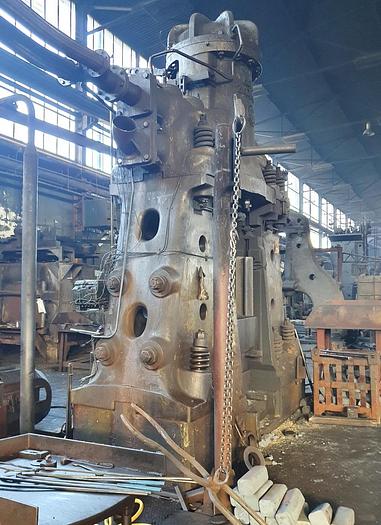

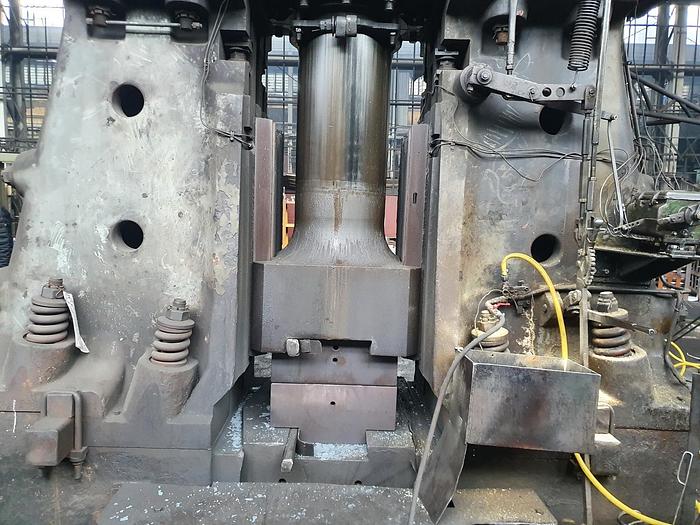

6 tons Hammer Forging Pneumatic Huta Zygmunt MPM5000
Specifications

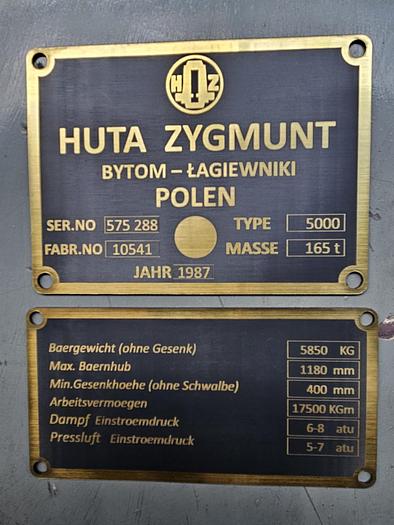

| Manufacturer | Huta Zygmunt, Polish |
| Model | MPM5000 |
| Year | 1987 |
| Condition | Used |
| Stock Number | MA2768 |
| Item condition | Good working condition, dismantled |
| Capacity tons | 6 |
Description
Capacity : 6 tons,
Ram weight : 5850 kgs,
Max. ram stroke : 1080 mm,
Distance between bear guides bola : 760 mm,
Jaw length of the chamfer insert die : 50 mm,
Die without dovetail guides : 400 mm,
Wing maximum weight of the upper die : 1800 kg,
Olata hallway height of the lowering area above plus : 740 mm,
Energy of blow : 17500 kgm,
Number of strokes per minute : 80
Total weight : 165 tons,
Anvils weight: 116.5 ton /45.5 +70/,
In perfect condition, after major repair.
The all parts, except the anvil, have been changed in 2009-2010 with the new, original Huta Zigmunt parts.

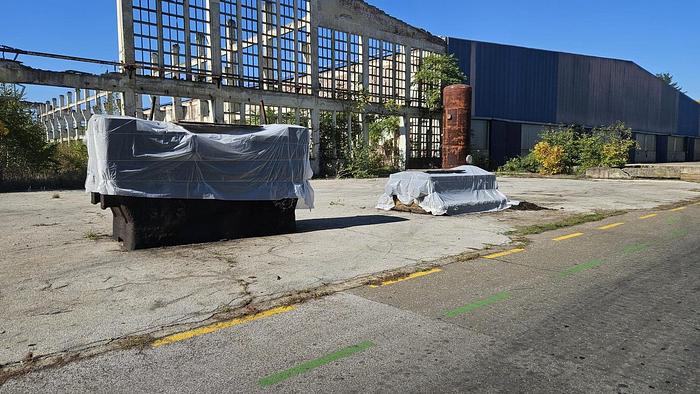

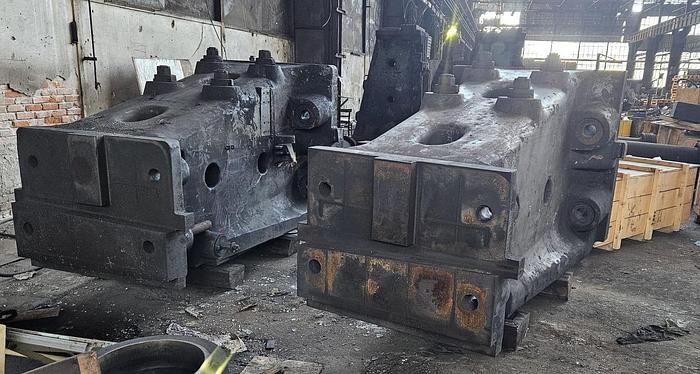

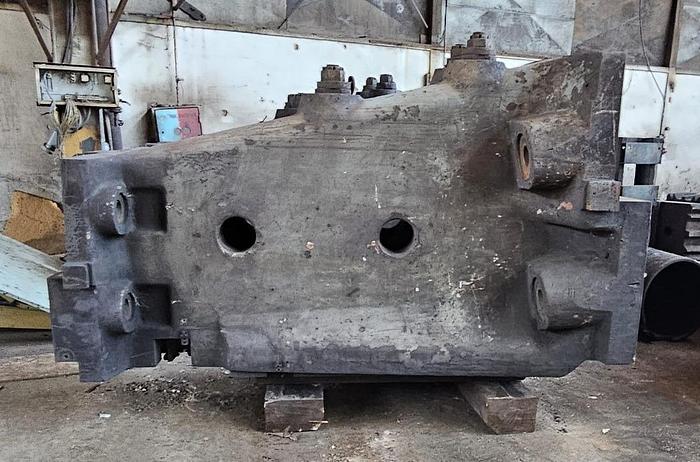

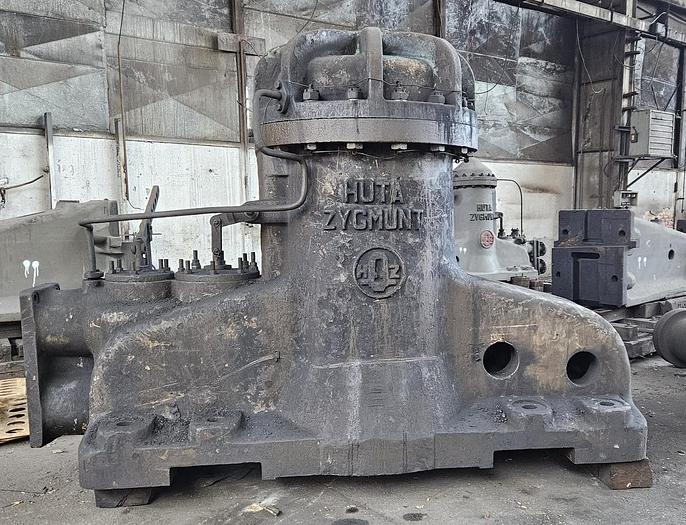

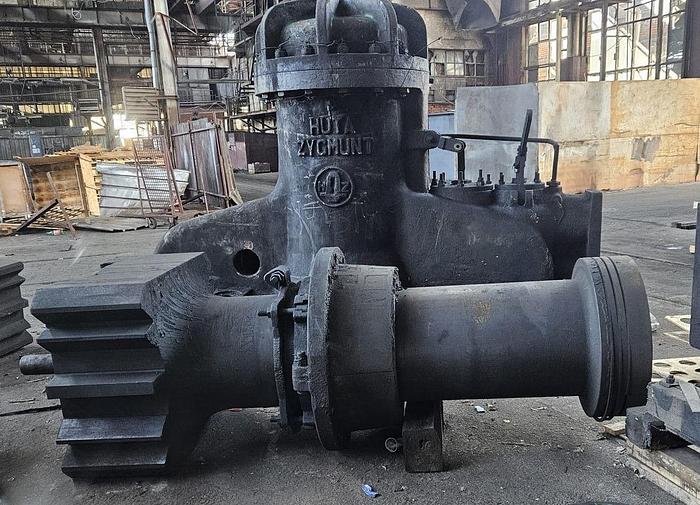

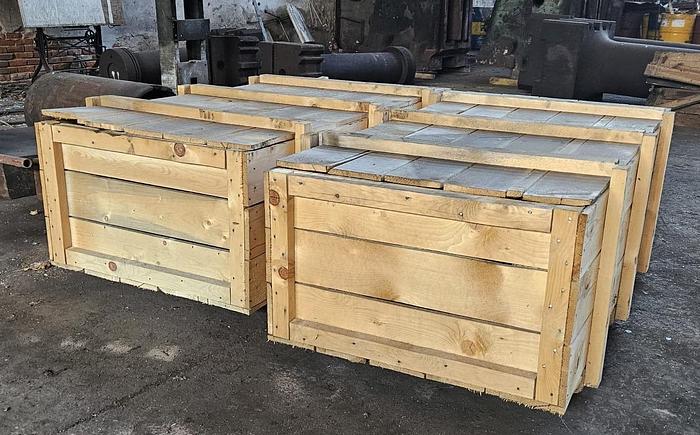

The hammer was dismantled on August 2024 and is ready for delivery..
